At Tampa Bay eBikes’ October 5, 2026 prices, the Abound LR costs $100 more than the Abound SR. The LR offers a longer rear cargo layout and weighs 8 lb more. Both retain the same published total and rear-rack weight limits, so the extra money does not buy a higher payload rating.
Start with what you need to carry and where you will park the bike. Then price the complete, compatible setup—including any cargo or passenger accessories—before deciding which model suits your routine.
Frame Dimensions and Price Difference
The shop listed the Abound SR at $1,899 and the Abound LR at $1,999 on October 5, 2026. Prices and availability may change; use the model-specific shopping links below for current details.

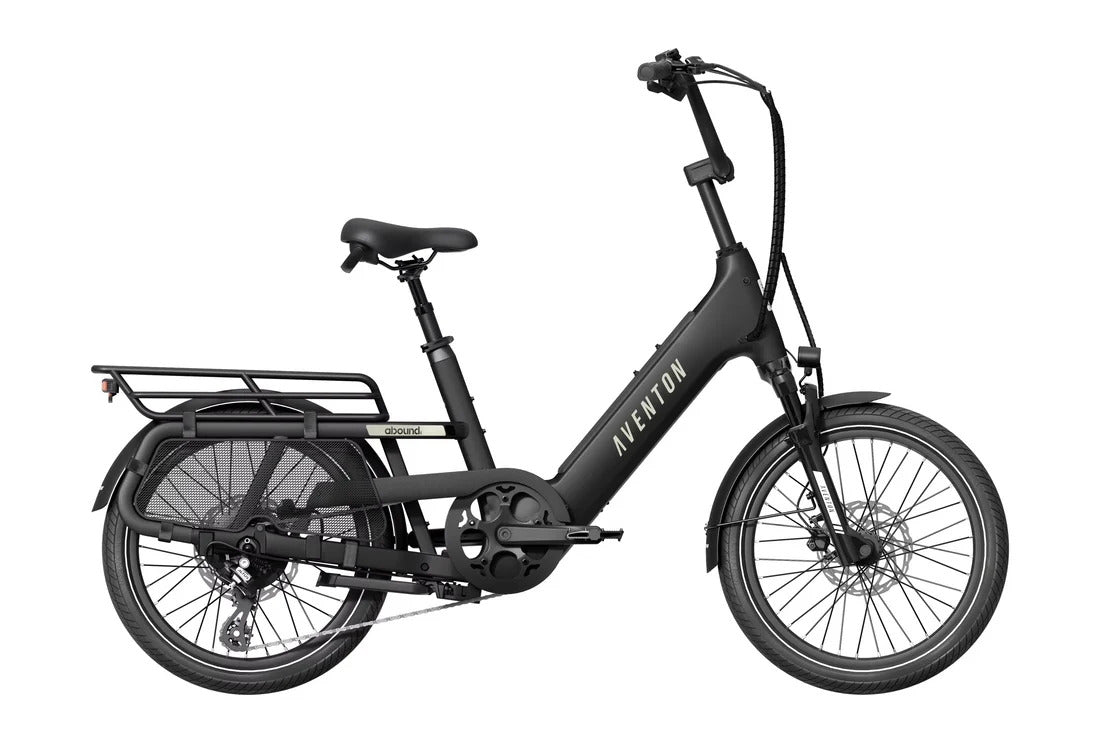

The SR is a short-tail build weighing 80 lb complete with an 1151.5 mm wheelbase. In contrast, the LR is a long-tail cargo build weighing 88 lb complete with a 1332 mm wheelbase. That extra 8 lb and 180.5 mm (about 7.1 in) of wheelbase provide the physical foundation for the extended rear loading platform.
 |
Wheelbase is the distance between wheel axles, not overall bike length. Measure your storage area and compare it with the complete bike and installed accessories. For vehicle transport, verify dimensional and weight compatibility with the carrier, hitch and vehicle.
Aventon Abound SR vs LR Specification Comparison
These selected specifications show the main layout differences and shared equipment.
| Feature | SR | LR |
| Tail Style | Short-Tail | Long-tail |
| Bike weight | 80 lb | 88 lb |
| Wheelbase | 1151.5 mm | 1332 mm |
| Rear Rack Limit | 143 lb | 143 lb |
| Total Weight Limit | 440 lb | 440 lb |
| Battery Size | 733 Wh | 733Wh |
| Motor | 750 W | 750W nominal |
Payload Capacities and Rack Configuration
A common misconception is that the LR's longer cargo platform supports a higher weight limit. Both bikes share an identical 440 lb total weight capacity and a 143 lb rear rack limit.
The 143 lb rear rack allowance is part of the 440 lb overall limit rather than an additional allowance on top of it. Riders must calculate total onboard mass, combining the rider, cargo gear, passengers, and installed accessories within both the component limit and overall limit.
 |
A bare rear rack is never a passenger seat. Any passenger setup requires dedicated, compatible passenger equipment installed strictly following manufacturer guidelines before riding.
Shared Powertrain and Connected Technology
The bikes share several core specifications, although this does not mean every part or accessory is interchangeable.
- Step-through frames, front suspension and 50 mm suspension seatposts.
- 750W nominal rear-hub motor producing 80 Nm of torque paired with a Shimano Altus 8-speed drivetrain and handlebar throttle.
- 733Wh battery; Aventon estimates up to 60 miles with a 165 lb rider on flat paved roads in Eco mode and default RideTune settings.
- Tektro hydraulic disc brakes paired with 20x3-inch tires featuring reflective sidewalls.
- Handlebar-mounted BC147 display paired with the Aventon Control Unit (ACU) and an integrated E-lock kickstand.
The ACU supports selected connected features, including location reporting and geofencing. Cellular functions need connectivity and an active service subscription. Aventon includes the first year of 4G from service registration; continuing cellular service afterward requires payment. Keep using a suitable physical lock alongside electronic security.
 |
Choosing Between the Short-Tail and Long-Tail Platforms
Consider the SR when its shorter rear layout can accommodate your confirmed cargo setup and a shorter wheelbase is useful for storage. Check the actual bike in your available space; “compact” does not guarantee it will fit a particular elevator, doorway or carrier.
Consider the LR when a confirmed compatible setup needs more rear platform length. Aventon lists both models for riders from 4 feet 11 inches to 6 feet 3 inches, but reach, mounting clearance and individual fit should be checked in person.
- Confirm vehicle rack tray length, doorway widths, and dedicated storage clearance.
- Calculate your combined load, keeping rider, cargo, and all hardware within the 440 lb total and 143 lb rack limits.
- Budget for compatible cargo or passenger equipment and confirm the complete setup before ordering.
- Call ahead to confirm in-store availability, color options, and test-ride scheduling before visiting.
Tampa Bay eBikes Store Locations
Hands-on fit evaluations help determine whether the compact SR or extended LR platform aligns with your riding needs. Contact the team directly at Call 727-228-1975
Explore Cargo Options at Tampa Bay eBikes
Check the product listings and call ahead to confirm colors, accessory compatibility and a display bike or test ride before visiting.
Visit any of our three regional brick-and-mortar storefronts listed on the Locations directory:
- Tampa: 4004 S MacDill Ave Unit 6, Tampa FL 33611
- Dunedin: 376 Patricia Ave, Dunedin FL 34698
- St. Petersburg: 4116 S 8th Ave Unit B, St. Petersburg FL 33711
Frequently Asked Questions
Does the Abound LR carry more weight than the SR?
No, both models share the exact same 440 lb overall payload capacity and 143 lb rear rack limit. The extra length on the LR provides more platform surface area, not additional weight capacity.
How does wheelbase differ from total bike length?
Wheelbase is the distance between wheel axles, not overall bike length. Measure your storage area and compare it with the complete bike and installed accessories. For vehicle transport, verify dimensional and weight compatibility with the carrier, hitch and vehicle.
Is the cellular ACU tracking feature free to use?
A complimentary 4G cellular data subscription is included for the first year following product service registration. Continued access to remote GPS tracking and cellular alert features requires a paid subscription after that first year expires.
What causes actual riding range to vary from the 60-mile estimate?
The manufacturer’s up-to-60-mile estimate uses a 165 lb rider on a flat paved road in Eco mode with default RideTune settings. Actual distance varies with rider and cargo weight, terrain, weather, tire pressure and cadence. Plan charging around your own load and route.
Choosing Your Abound Platform
Spending the extra $100 for the Abound LR secures an extended cargo deck and longer wheelbase, while the Abound SR provides a more compact profile that saves 8 lb of total bike weight. Review your daily hauling requirements, measure your vehicle and home storage spaces, and confirm accessory compatibility to choose the right cargo platform for your routine.
