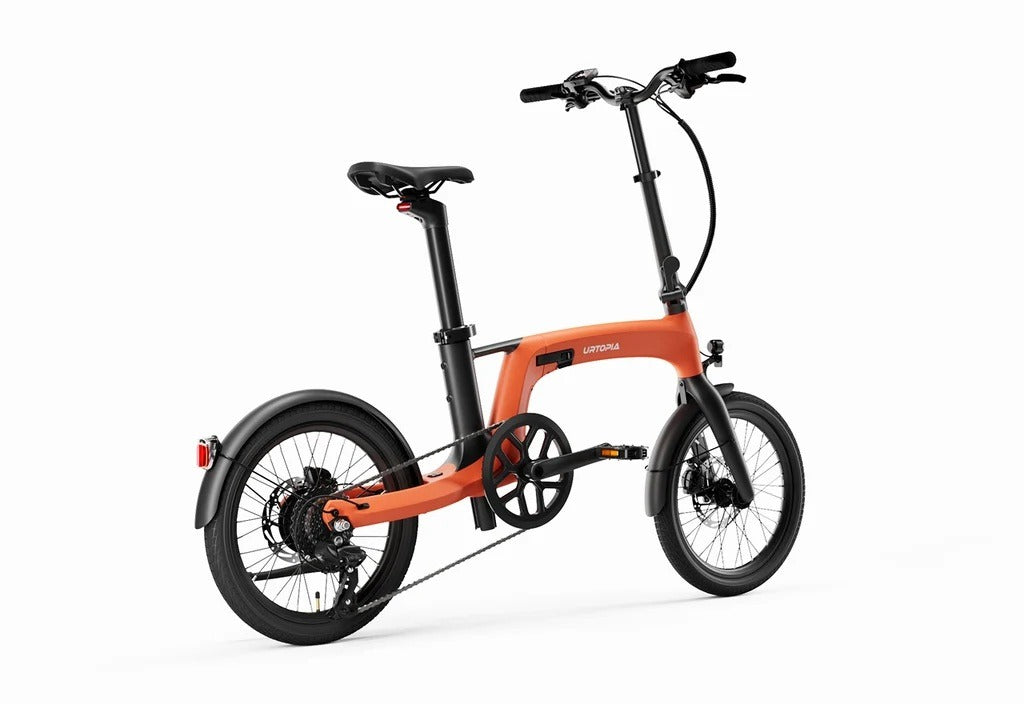

The Urtopia Carbon Fold 2 brings lightweight carbon fiber construction to the compact folding bike category. It pairs an 18-inch wheel platform with an integrated electric assist system designed for urban storage and multi-modal travel.
Selecting the right folding setup requires balancing physical frame dimensions, total carrying weight, and intended riding distance. Evaluating these hardware specifics helps determine whether this model matches daily storage spaces and commuting demands.
Folded Dimensions and Real-World Trunk Storage
The manufacturer lists a folded size of approximately 32 inches long, 19 inches wide and 27 inches high. Compare the complete envelope with your storage space and vehicle opening, allowing clearance for lifting and positioning. Dimensions alone do not guarantee a fit.
 |
Manufacturer storage demonstration: measure your own vehicle opening, cargo floor and loading height.
Lifting comfort is an essential consideration alongside exterior dimensions. The manufacturer net weight is 35.2 pounds with the standard battery installed, but that figure excludes installed accessories such as folding pedals, fenders, a kickstand, and a rear cargo rack. Total equipped lifting weight is higher once those functional commuting additions are mounted to the frame.
Always measure the narrowest point of your vehicle trunk opening and consider the total lifting height before loading an equipped folding bike.
Examine the Current Inventory
Review current build specifications, pricing, and color options on the official store page.
Rider Fit, Step-Over Height, and Payload Limits
Urtopia provides rider height guidance spanning from 5 feet 1 inch to 6 feet 1 inch. This recommendation serves as a baseline guideline, making personal saddle height and handlebar reach adjustments vital to confirm comfort before purchasing.
The step-over carbon frame design provides rigid handling but requires checking standover clearance. Riders near the upper and lower edges of the recommended height range benefit from evaluating arm extension and pedal stroke ergonomics in person.
Payload capacity is strictly defined by the manufacturer:
- Total payload capacity is limited to 220 pounds maximum.
- The 220-pound rating includes the combined weight of the rider, apparel, backpacks, and mounted cargo accessories.
- Exceeding the payload limit reduces handling stability and increases wear on structural components.
Motor Drive, Shifting, and Cockpit Controls
Electric assistance comes from a 250W rated rear-hub motor paired with an integrated torque sensor. The sensor measures pedaling effort dynamically across four selectable pedal-assist levels, providing motorized support up to 20 mph.
 |
The handlebar screen displays speed and assist modes while offering USB-C device charging.
Mechanical propulsion relies on a Shimano 8-speed chain drivetrain, allowing riders to maintain cadence across varying inclines. Stopping force is managed by TEKTRO hydraulic disc brakes front and rear, which provide responsive lever engagement. A 2-inch color LCD screen mounted on the handlebar includes USB-C charging for mobile accessories, and an integrated rear light is built directly into the frame structure for visibility.
Throttle operation is available as an optional add-on rather than standard factory equipment. Commuters seeking on-demand motor acceleration without pedaling must select the optional throttle configuration at the time of purchase.
Battery Configurations and Manufacturer Range Ratings
Standard power is supplied by a removable 36V 6.8Ah (244.8Wh) battery housed inside the structural seat post. An optional secondary 36V 9.8Ah (352.8Wh) external battery can be mounted to extend total system runtime.
 |
The optional external battery pack expands capacity for longer daily transit routes.
Current manufacturer specifications state the bike delivers up to 39 miles of range with the standard battery and up to 84 miles with the optional external extender. These figures were recorded under specific manufacturer baseline conditions: a 180-pound rider using Eco assist on flat roads with pedal assist only and zero throttle engagement.
The shop page currently lists up to 40 miles standard and 95 miles extended. This guide uses the current manufacturer figures of up to 39 and 84 miles. Confirm the supplied battery configuration before ordering.
Actual riding range varies depending on rider and cargo weight, local wind resistance, topography, chosen assist level, and tire pressure.
Frame Construction, Drivetrain, and Hardware Specifications
The Carbon Fold 2 uses a carbon fiber frame and a rigid carbon fork. Evaluate ride comfort on a test ride, including how its small wheels and unsuspended fork feel on the surfaces you expect to use.
 |
The 250W rated rear-hub motor operates in tandem with an 8-speed chain system.
Road contact is handled by 18x2-inch Kenda tires mounted to durable rims. This wheel diameter offers a balance between rapid folding compactness and rolling momentum over urban pavement seams.
Key Specifications at a Glance
Reviewing the core dimensions and technical ratings clarifies the physical characteristics of the Carbon Fold 2.
| Feature | Details |
| Frame Material | Carbon fiber frame and rigid carbon fork |
| Motor Output | 250W rated rear-hub motor with torque sensor |
| Top Assist Speed | Assistance up to 20 mph across 4 assist levels |
| Standard Battery | Removable 36V 6.8Ah (244.8Wh) seat-post battery |
| Extender Battery | Optional 36V 9.8Ah (352.8Wh) external pack |
| Manufacturer Range | Up to 39 miles standard, up to 84 miles with extender |
| Gearing and Brakes | Shimano 8-speed drivetrain and TEKTRO hydraulic disc brakes |
| Tire Size | 18x2-inch Kenda tires |
| Base Net Weight | 35.2 lb with battery, excluding commuting accessories |
| Folded Dimensions | Approximately 32in L x 19in W x 27in H |
| Payload Limit | 220 lb total rider and cargo payload capacity |
Pre-Purchase Folding and Handling Checklist
Before selecting a folding electric bicycle, evaluate how the physical hardware functions during routine storage operations.
- Ask staff to demonstrate the frame latch, stem hinge and correct locking checks.
- Measure your intended vehicle trunk, back seat, or storage closet against the 32x19x27-inch folded footprint.
- Ask staff to demonstrate the manufacturer’s recommended lifting points and assess your own lifting comfort.
- Factor in the additional weight of pedals, fenders, kickstand, and racks when testing your lifting comfort.
- Verify whether your riding style requires the optional throttle or standard pedal-assist-only operation.
Arrange a Local Showroom Consultation
Confirm in-store bike inventory and review folding mechanics directly with a local specialist.
Pricing, Color Options, and Showroom Availability
The Urtopia Carbon Fold 2 is priced at $1,899 at Tampa Bay eBikes as of October 17, 2026. Retail pricing, component configurations, and showroom stock are subject to change over time. Available frame finishes include Orange, Glacier Blue, and Creme.
Call ahead to ask which location has a Carbon Fold 2 available for a viewing or test fit. Tampa Bay eBikes operates these three showrooms:
- 4004 S MacDill Ave Unit 6, Tampa, FL 33611
- 376 Patricia Ave, Dunedin, FL 34698
- 4116 S 8th Ave Unit B, St. Petersburg, FL 33711
Consult local store teams directly by telephone to verify test-ride schedules and active warehouse stock.
Reference Sources
Hardware specifications and manufacturer data referenced in this guide are derived from the following official documentation:
Frequently Asked Questions About the Urtopia Carbon Fold 2
What is the actual lifting weight of the Carbon Fold 2?
The manufacturer net weight is 35.2 pounds with the standard battery included. This weight excludes pedals, kickstands, fenders, and racks, so the fully equipped lifting weight will be higher.
What are the dimensions of the bike when folded?
The bike measures approximately 32 inches long, 19 inches wide, and 27 inches high when collapsed. Riders should measure their intended storage space or vehicle trunk against these numbers.
How far can the bike travel on a single charge?
Current manufacturer specifications state up to 39 miles with the standard 244.8Wh seat-post battery and up to 84 miles with the optional 352.8Wh extender. These figures assume a 180-pound rider on flat terrain in Eco pedal-assist mode without a throttle.
Does the bike come standard with a throttle?
No, the throttle is an optional accessory that is not included on standard builds. Riders who want pure throttle acceleration up to 20 mph must specify that add-on.
What is the maximum rider and cargo weight limit?
The total payload limit is 220 pounds. This figure accounts for the rider combined with all carried gear, packs, and bolted-on accessories.
Final Considerations on the Urtopia Carbon Fold 2
The Carbon Fold 2 is worth considering when compact storage is a priority. Measure the storage and loading space, account for the weight of the equipped bike, and arrange a fit check before deciding.
