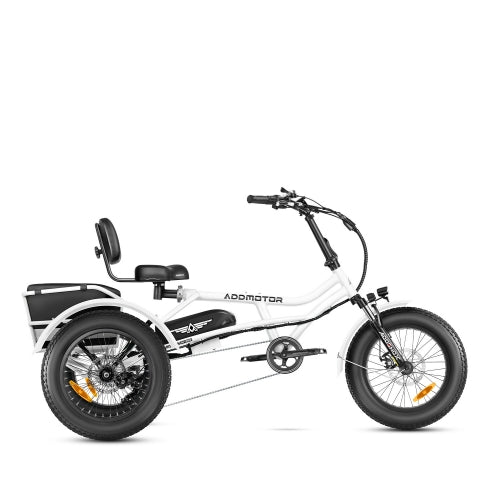

• Addmotor - ARISETAN II M-360 Mini Semi-Recumbent Trike with a rear cargo basket on a white background.
  • Addmotor - ARISETAN II M-360 Mini Semi-Recumbent Trike with an electric motor and a rear cargo basket.

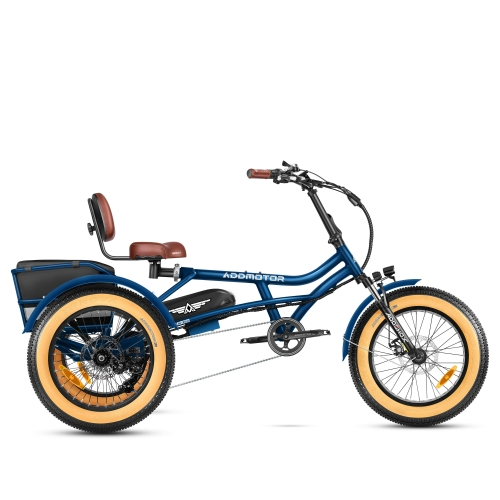

  • Three-wheeled electric Addmotor Arisetan II M-360 Mini Semi-Recumbent Trike with a blue frame and brown seats, displayed against a white background.

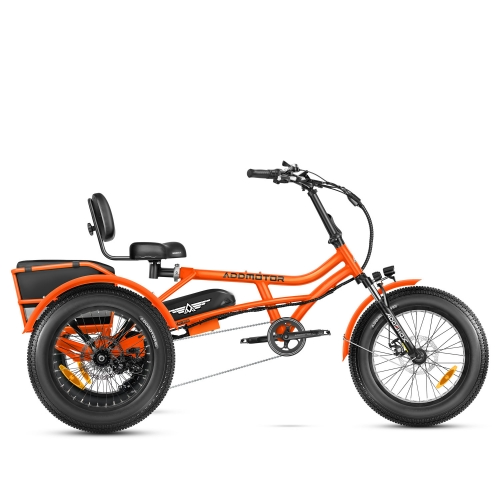

  • Orange Addmotor ARISETAN II M-360 Mini Semi-Recumbent Trike with rear storage basket on a white background.
  • Red and black Addmotor - ARISETAN II M-360 Mini Semi-Recumbent Trike with cargo storage and an electric motor.
1 1

Addmotor

Addmotor - ARISETAN II M-360 Mini Semi-Recumbent Trike

Addmotor - ARISETAN II M-360 Mini Semi-Recumbent Trike

$3,049.00
$3,999.00 $3,049.00
Sale Sold out
Shipping calculated at checkout.
Color
Introducing the New
Arisetan II M-360 2024

The Arisetan M-360 trike retains its signature style while comes with some upgrades. With improved features, this e-trike takes your daily ride to a whole new level.

Technical Specs

Electronics
Motor
Bafang 48V*750W Rear Brushless Hub Motor, 90Nm motor torque
Battery
Samsung 48V*20Ah Cells Battery, Charging Time 10 Hours And Rated For 1,000 Charge Cycles
Display
Addmotor 5 Inch LCD Display
Controller
Addmotor 25A Controller
Throttle
Variable Speed Control - 1/2 Twist Throttle
HeadLight
Powered By Main Battery And Controlled By Display
Taillight
Powered By Main Battery And Controlled By Display, with Turning Signal
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Upgraded 7 Level Pedal Assist, Torque Sensor
Charger
48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction

Components
Frame
7A19 Aluminum Alloy Frame
Front Fork
Oil Spring Fork with 25mm of Travel
Brake Lever
Tektro EL555-RT/EL550-RS
Rotors
MD300 180mm Front/Shanfeng*2 Pics 180mm Rear
Chain
KMC Rust Resistant Chain
Tires
Addmotor 20" X 4.0" Fat Tires
Chain Puller
Shimano 7 Speeds ALTUS M310
Horn
Sensitive Front Horn
Fender
Front and Rear Fenders
Basket
Metal Large Capacity Rear Basket with Waterproof Bag

Measurements

Suits riders in the height range of 5'6"-6 '6"

Max load capacity is 380 lbs

Total Length 80.7"

Wheelbase 55.5"

Handlebar Height 45.2"

Seat Height 28.3"

Stand Over 26.7"

Bottom Bracket Height 13.3"

Rear Basket 21.6''x 16.5''x 10.2''

Rear Wheelbase 23.6"

Handlebar Length 27.2"

Reach 29.5"

Width Of Rear Wheels: Outer Diameter: 31.29"; Inside Diameter：23.6"

Bike Weight:45 KG / 99.21 lbs

Materials

Dimensions

  • Weight: 99.21 oz
  • Height: 45.2 in
  • Length: 80.7 in
  • Suggested Rider Height:
