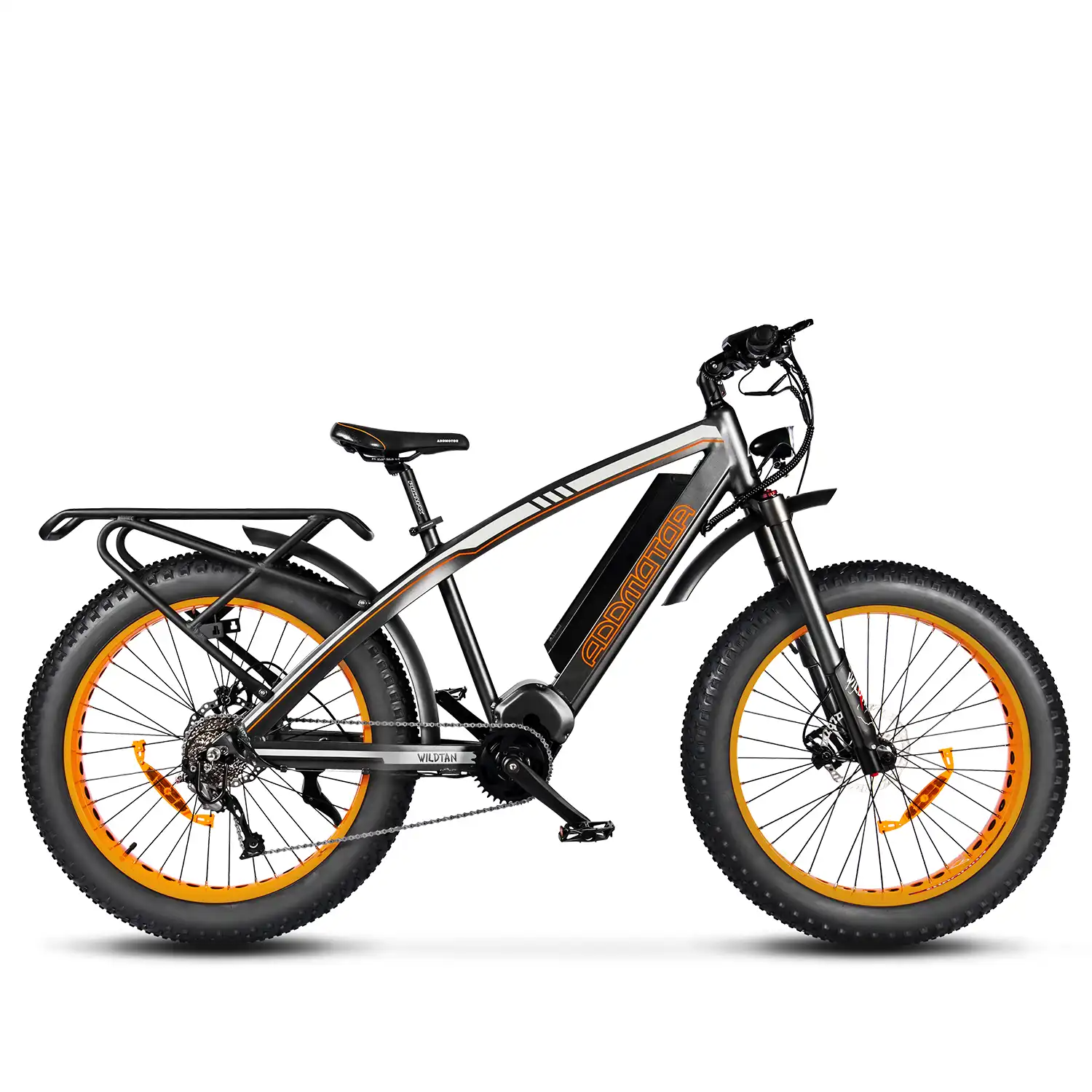

• Addmotor - Wildtan M5600 electric fat-tire mountain bike isolated on a white background.

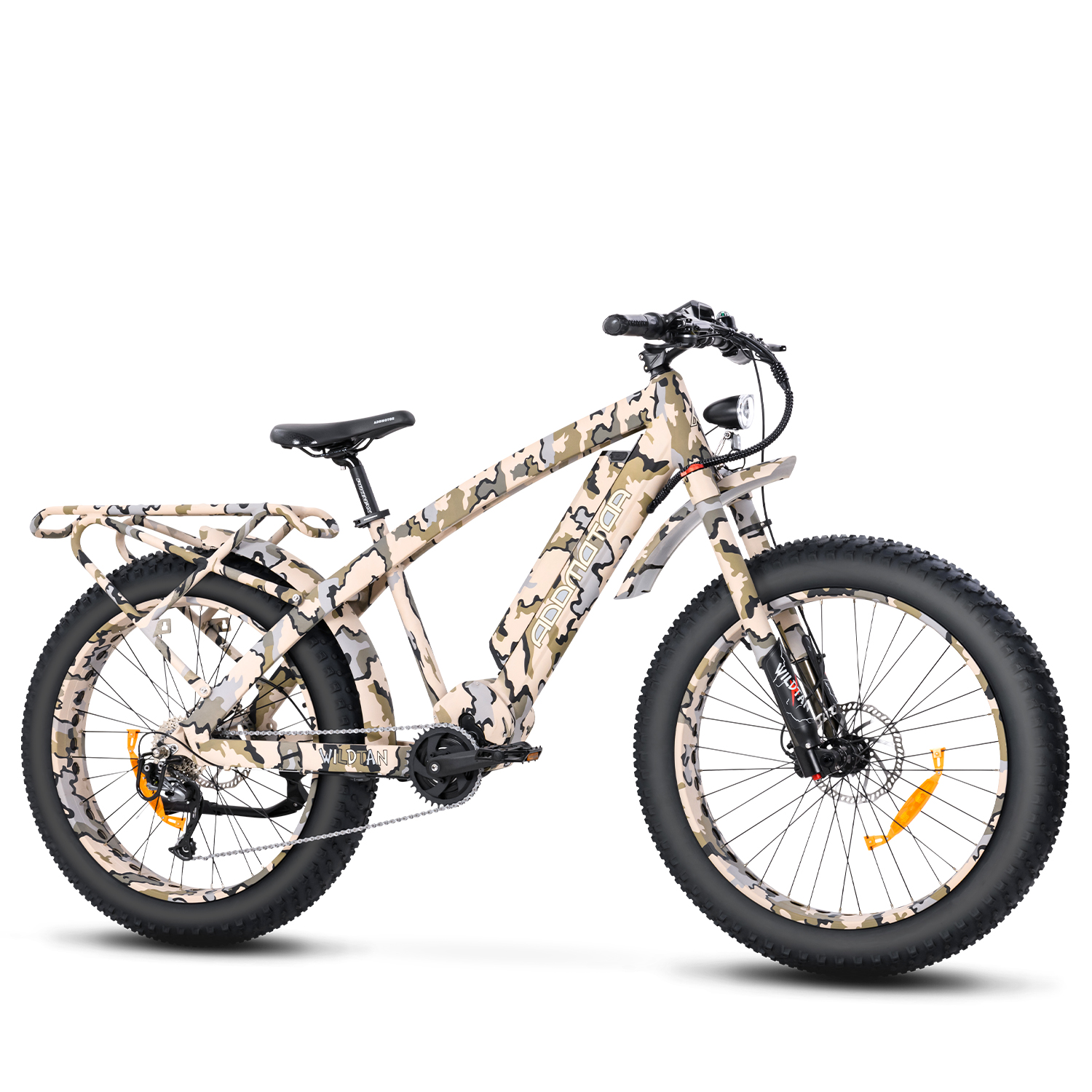

  • Addmotor - Wildtan M5600 electric mountain bike with camouflage pattern on a white background, featuring a Samsung battery.

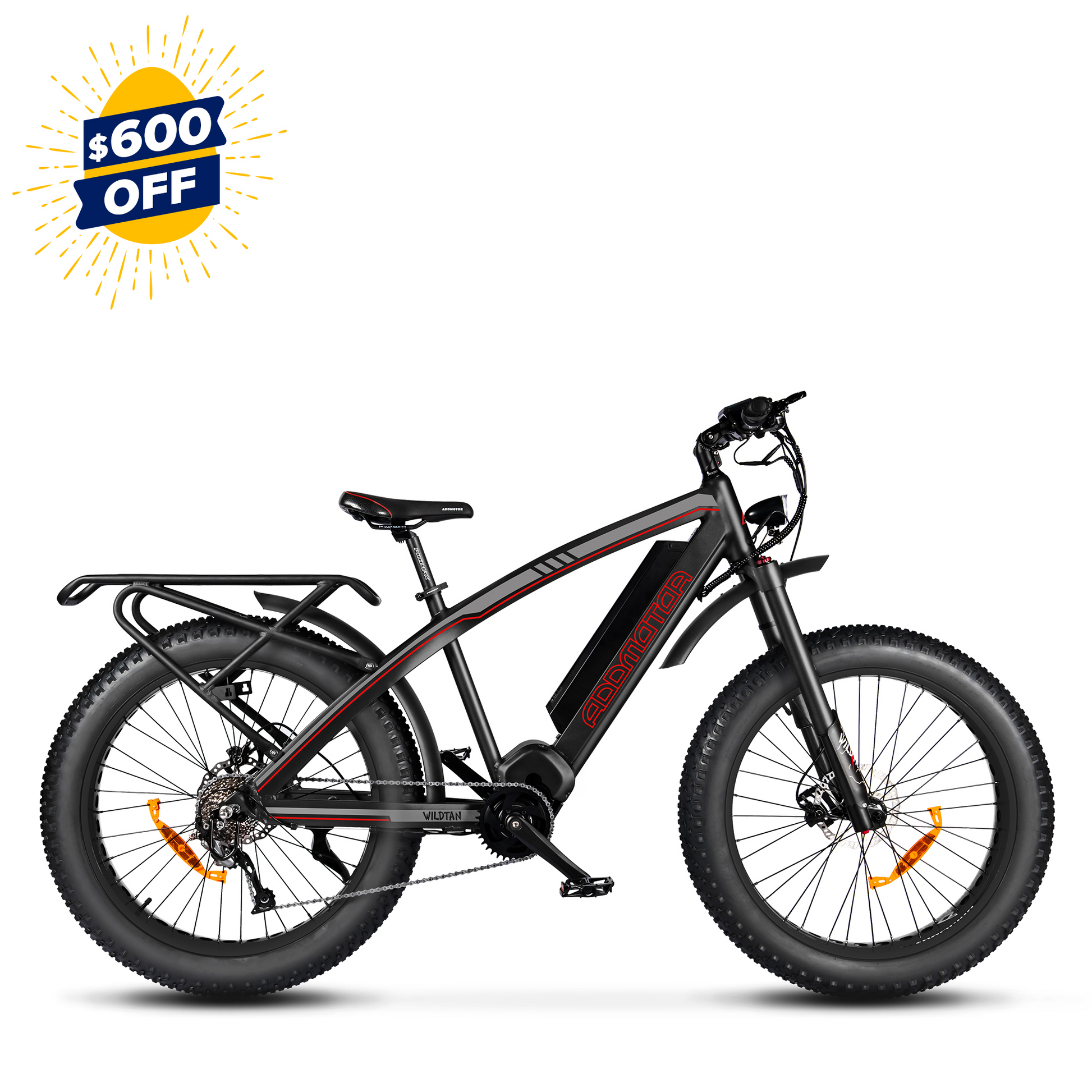

  • Addmotor - Wildtan M5600 electric mountain bike with Samsung battery and promotional discount displayed.
1 1

Addmotor

Addmotor - Wildtan M5600

Addmotor - Wildtan M5600

$2,399.00
$2,999.00 $2,399.00
Sale Sold out
Shipping calculated at checkout.
Color
Mid-Drive Electric Bikes

Addmotor's first mid-motor electric bike, designed for hunting. The black, volcano ash, and camo frame colors allow you to hide better in the bush.

Conquer The Hard Terrains

The Wildtan Mid-Drive electric bike is designed to go up hills, take bumpy roads, and through wooded areas that are not suitable for riding city electric bikes.

Wild Ride with Wildtan M-5600
With a 1000W mid-drive motor and a 17.5Ah Samsung battery, you can freely shuttle through various terrains and explore to your heart's delight.

1000W BBSHD Bafang Mid-Drive Motor
Rated power at 1000w, this mid-drive motor provides strong power constantly enough in continuous steepest hills.
Best Used for Hard Terrain
Air inverted fork with 120mm of travel: rebound, air pressure adjustable, manual lock-out adjustments.

Technical Specs
-Electronics-
Battery
48V*17.5Ah (840Wh) With Lithium Samsung 35GA Cells, rated for 800 charge cycles
Motor
1000W Bafang BBSHD Mid Drive Motor With 160 Nm of torque
Display
Addmotor 5-Inch LCD Smart Color Display with Bluetooth
Throttle
Right Hand Half Twist Throttle
Controller
Integrated Bafang 30A Controller
Lights
Front: Electric headlight TRENDO by Spanninga
Rear: Battery taillight by Spanninga
Integrated Wiring
Water Resistant Connectors And Wiring Harness
Charger
48V, 2.5 Amp smart charger
Pedal Assist
Intelligent 5-level pedal assist with an integrated speed sensor
-Components-
Frame
6061 Aluminum Alloy Frame
Front Fork
Air Inverted Fork with 120 mm of travel, Rebound / Air Pressure Adjustable / Manual Lock-out Adjustments
Brakes
Tektro Hydraulic Disc Brake HD-E500 With Motor Cutoff Sensor
Brake Rotors
Tektro 180 mm front and rear
Chain
KMC X9 Rust Resistant Chain
Tires
Kenda Juggernaut Pro 26" x 4.5" Fat Tires
Derailleur
SHIMANO ALIVIO 9-speed
Handlebar
Promax Aluminum, 700mm wide, 5° Angle Sweep Back
Pedal
Wellgo aluminum with reflectors, standard 9/16" x 20 TPI threading
Saddle
Exclusive Addmotor Well Padded Saddle
Seat Post
Promax Aluminum 320 mm x 28.6 mm
Seatpost Clamp
Promax Quick release
Stem
Promax Aluminum 100mm + Adjustable Angle (±60°)
Rims
26" Aluminum Double Wall, 36H, With Front Thru-axle Hub
Grips
Durable Imitation leather ergonomic grips
Spokes
12-gauge stainless steel
Freewheel
Exclusive Addmotor Stainless Steel 9-speed Freewheel, 11-32T
Kickstand
Side-mounted, adjustable lean angle
Crankset
36T Chainwheel, 170mm Bafang Forged Alloy
Shifter
SHIMANO ALIVIO Right Shift Lever with Shifting Sensor



Measurements

Suits riders in the height range of 5'10"-6 '5"

Max load capacity is 350 lbs

Total Length 78.5"

Wheelbase 49.5"

Minimum Seat Height 34"

Maximum Seat Height 42.5"

Seat Tube 19"

Standover Height 34"

Handlebar Height 44"

Reach 16"

Handlebar Width 28"

Lowest Seat to Lowest Pedal 28.3"




















Materials

Dimensions

  • Weight:
  • Height: 34 in
  • Length: 78.5 in
  • Suggested Rider Height:
