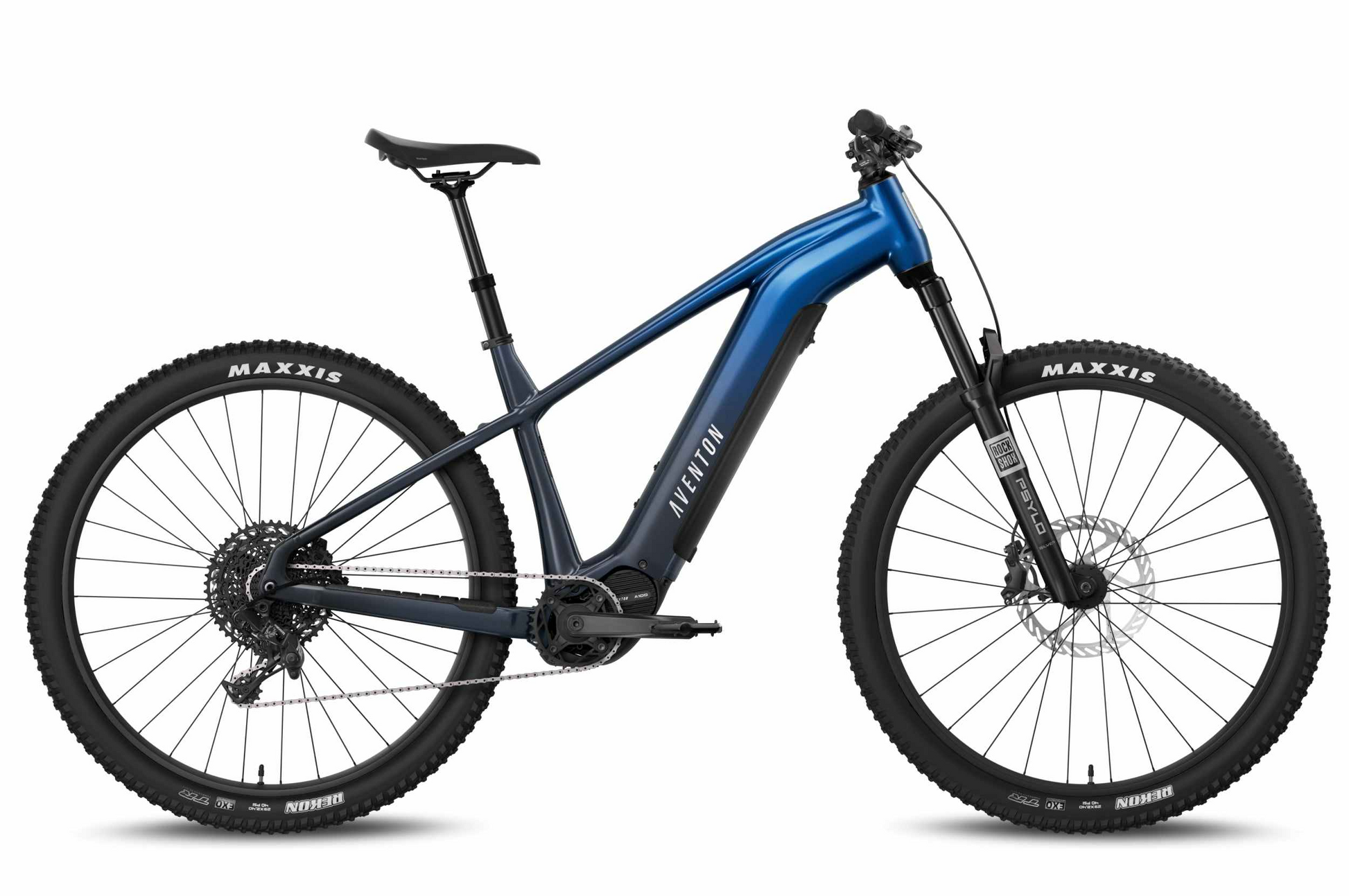

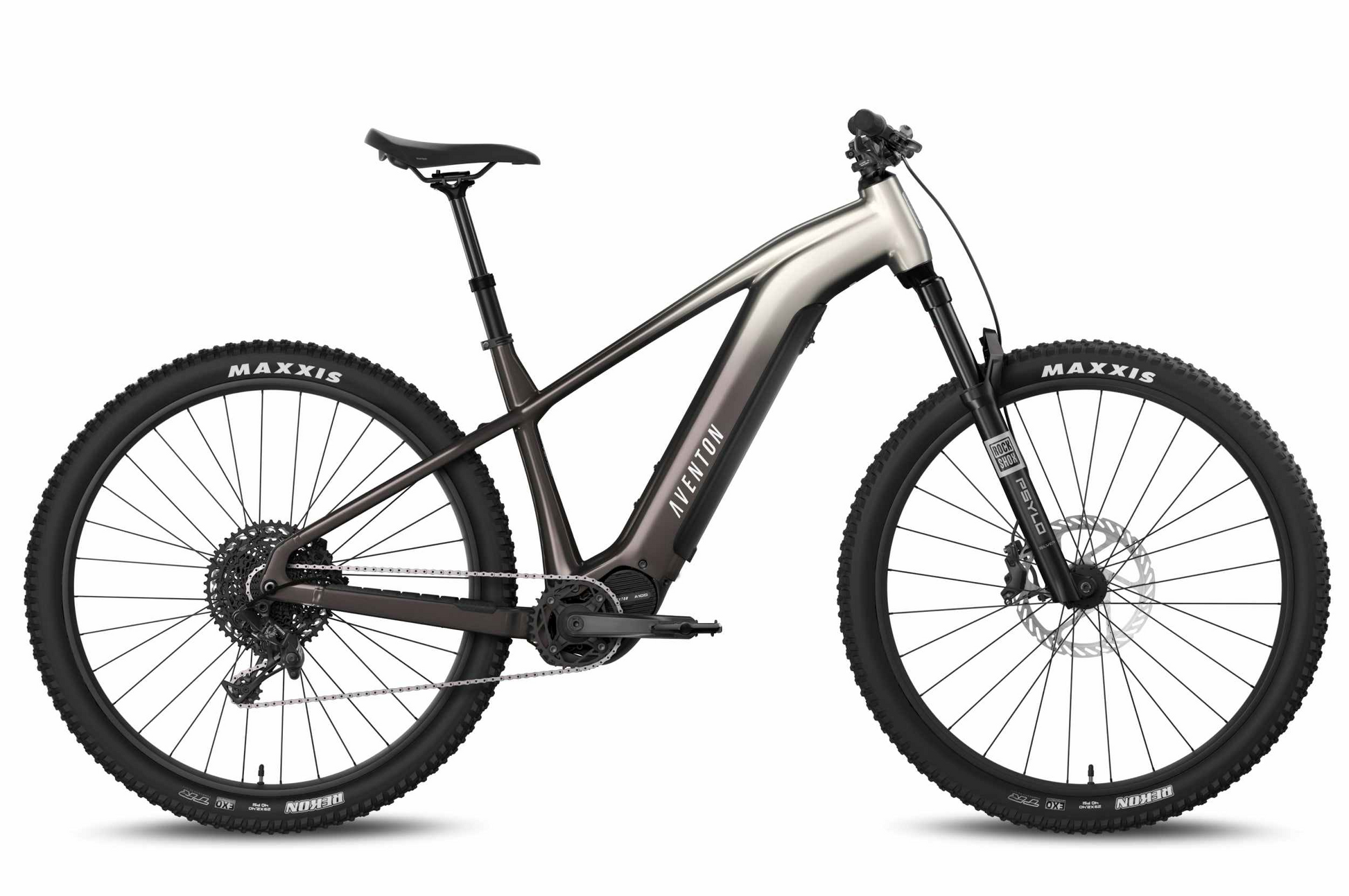

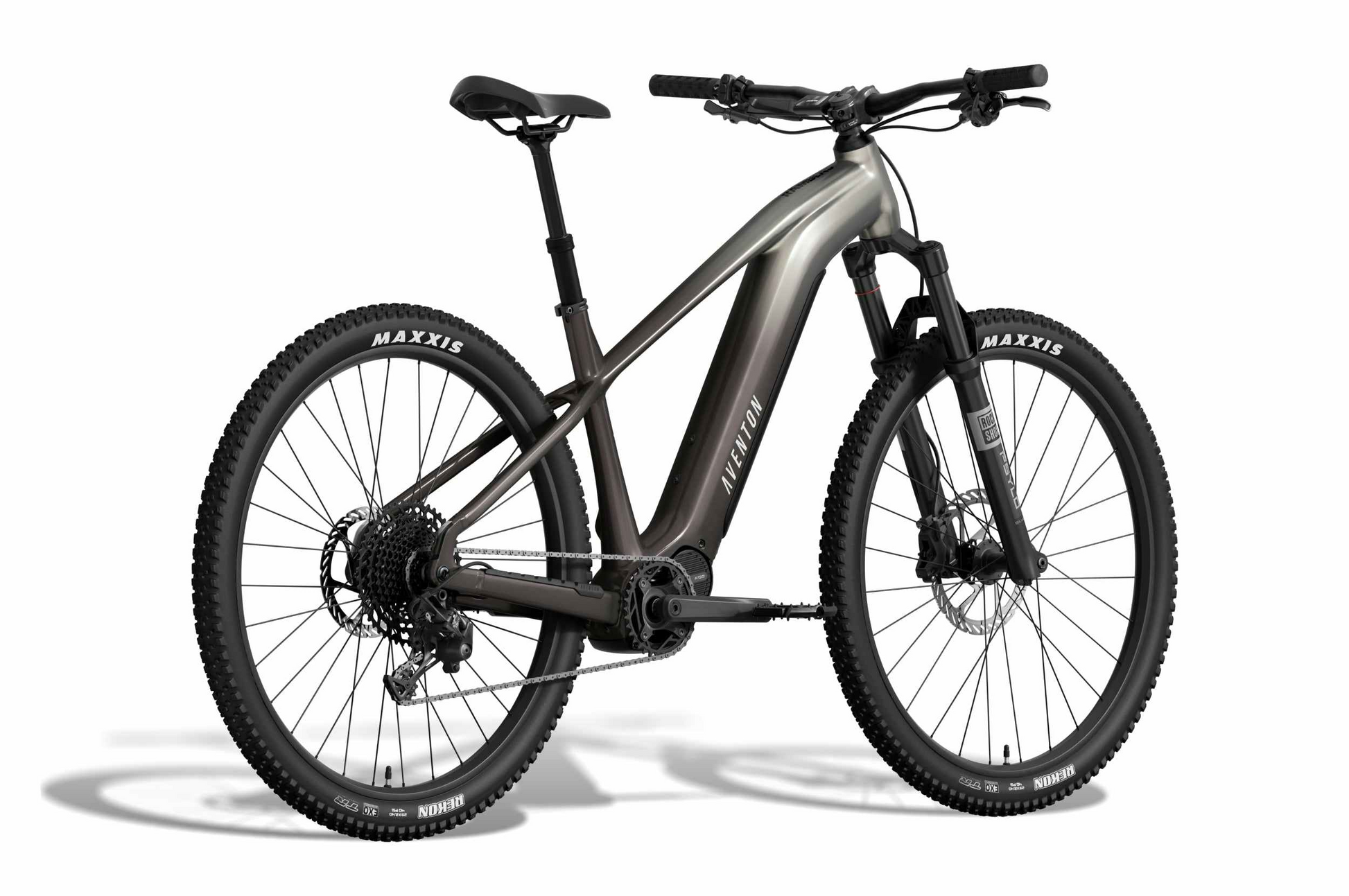

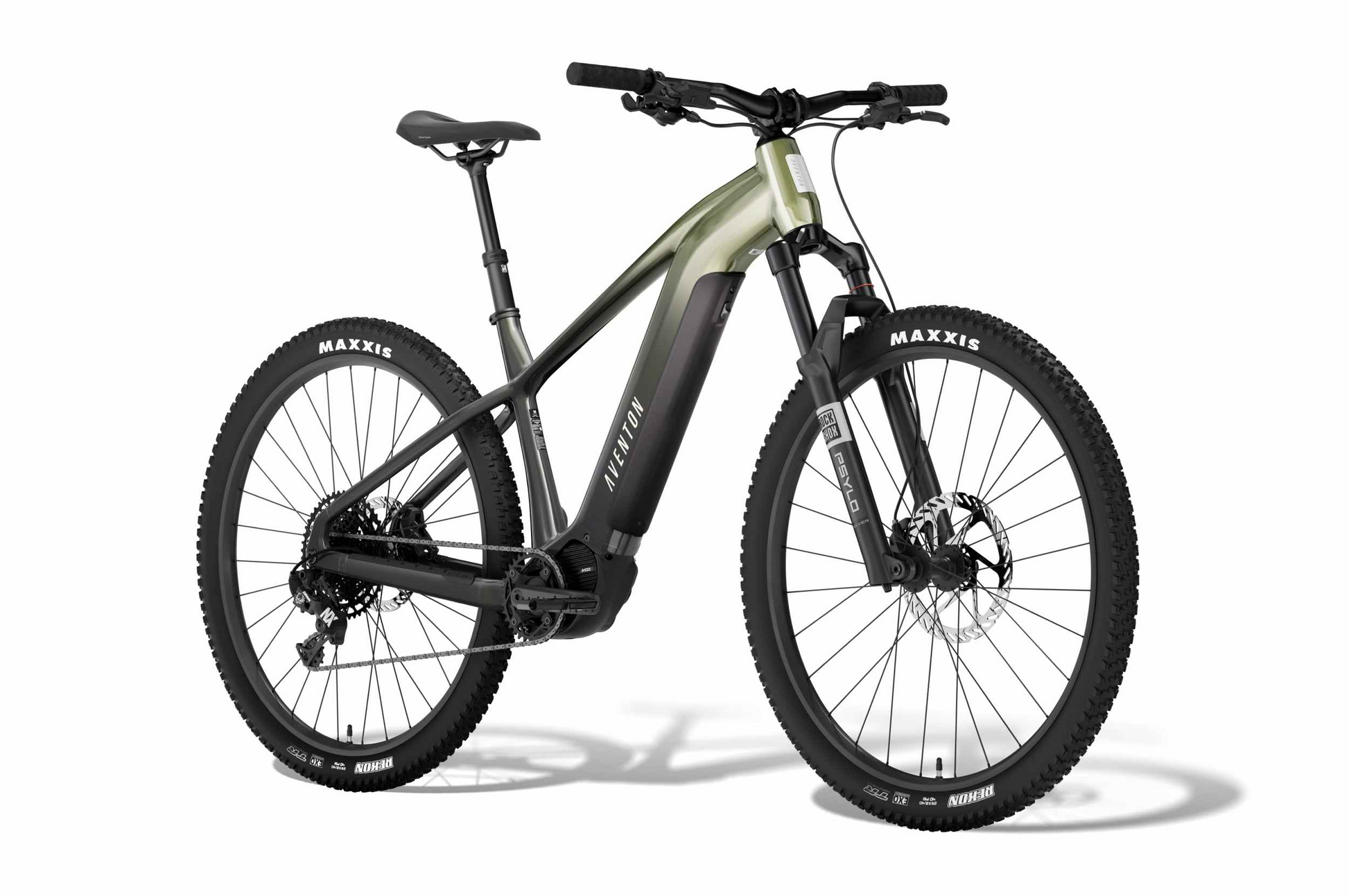

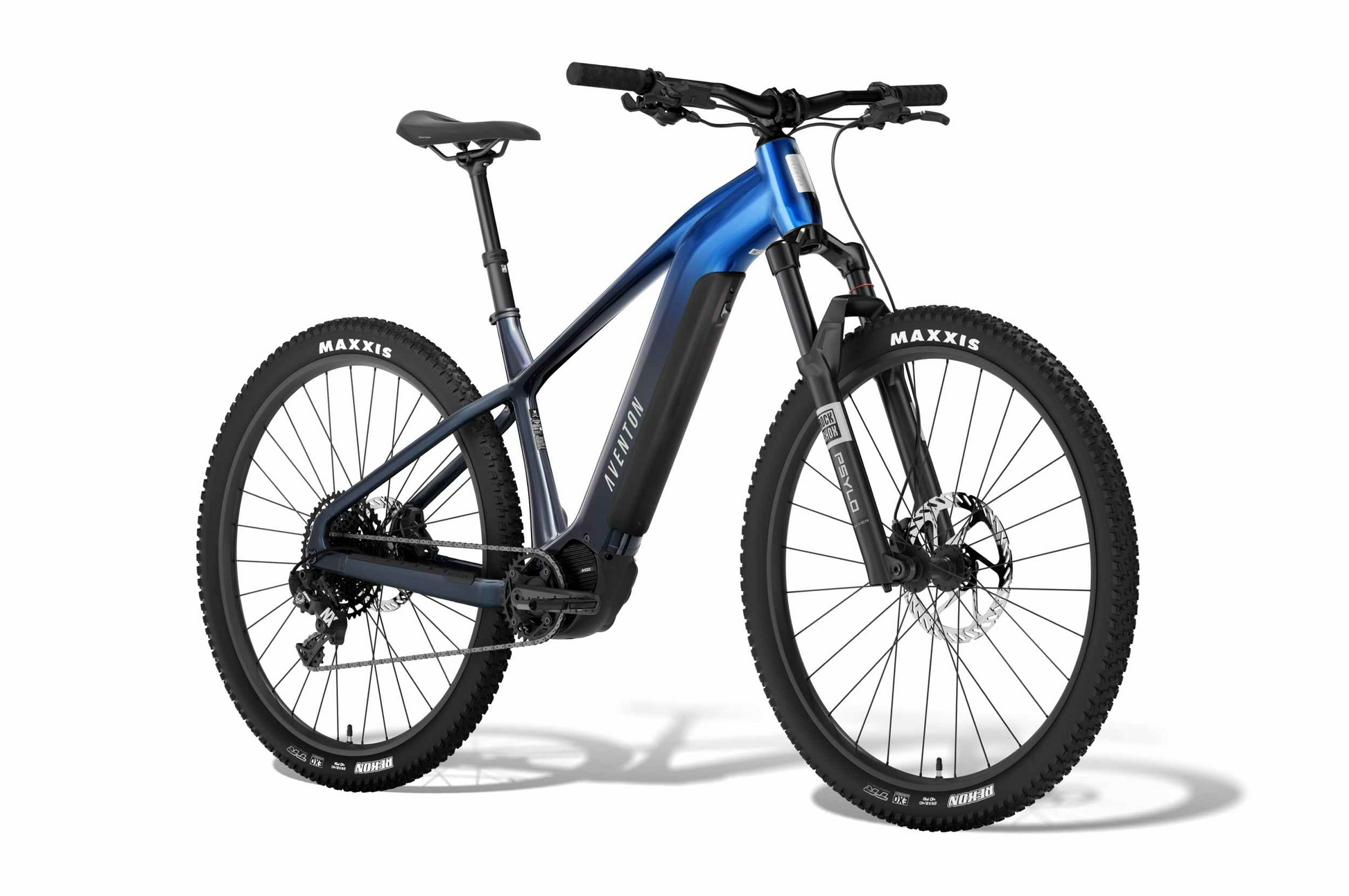

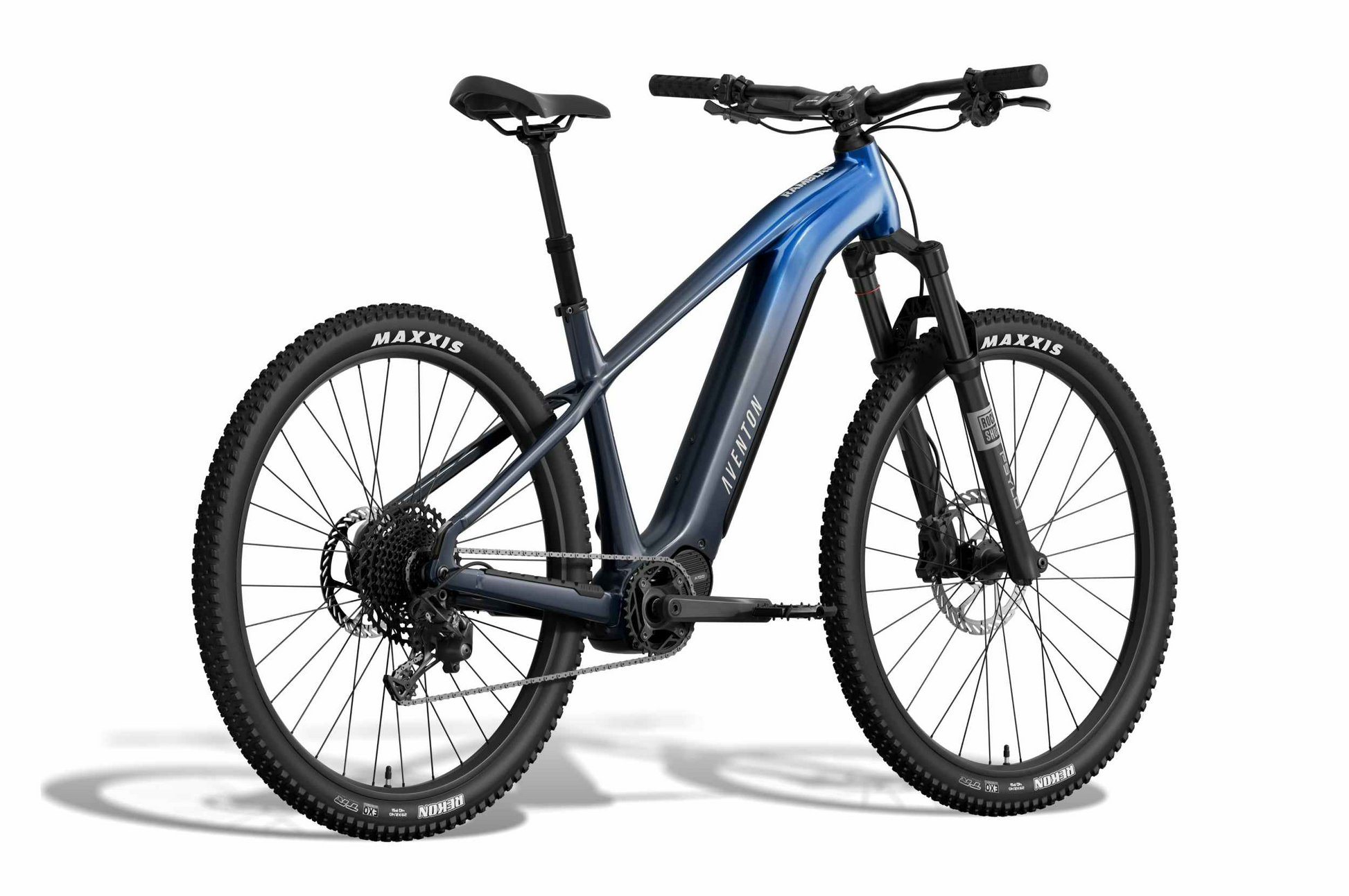

🏔️ Aventon Ramblas ADV Electric Mountain Bike

100Nm Mid-Drive Torque • SRAM NX 12-Speed • Built to Ride Hard

The Aventon Ramblas ADV is a true electric mountain bike built for riders who want serious trail performance with natural mid-drive power. Equipped with Aventon’s a100 mid-drive motor delivering 100Nm of torque, premium SRAM components, and a RockShox suspension fork, the Ramblas ADV is designed to climb stronger, descend confidently, and handle real terrain — not just gravel paths.

Available fully assembled and supported at Tampa Bay eBikes.

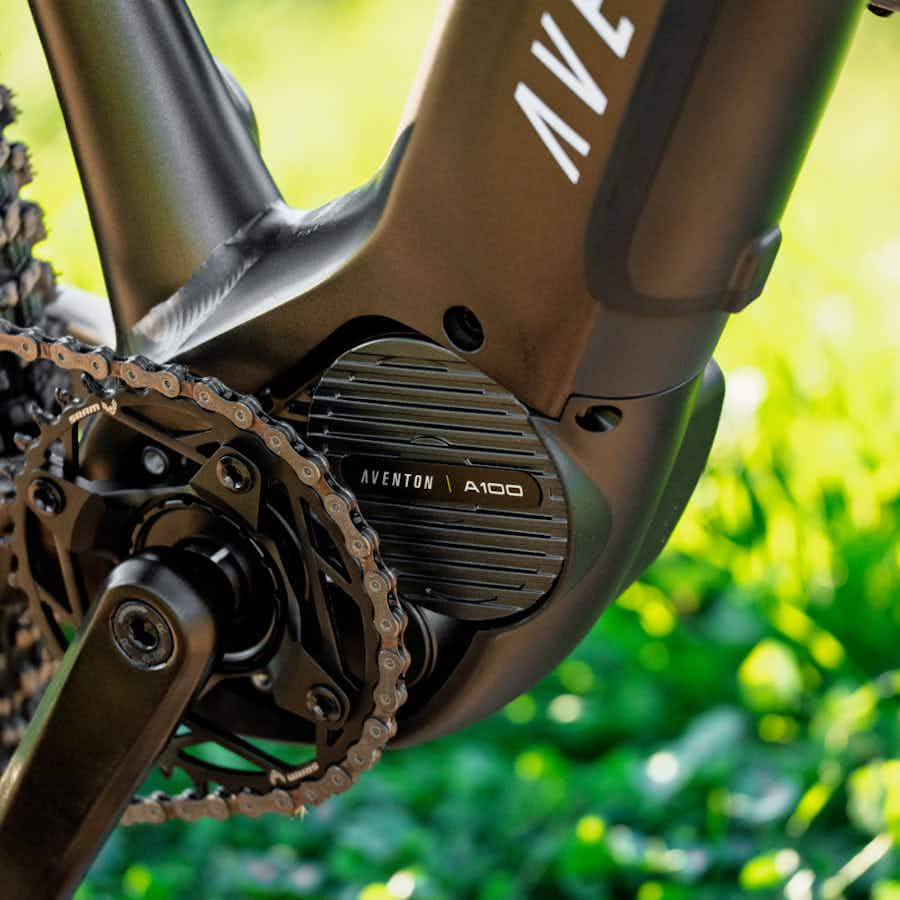

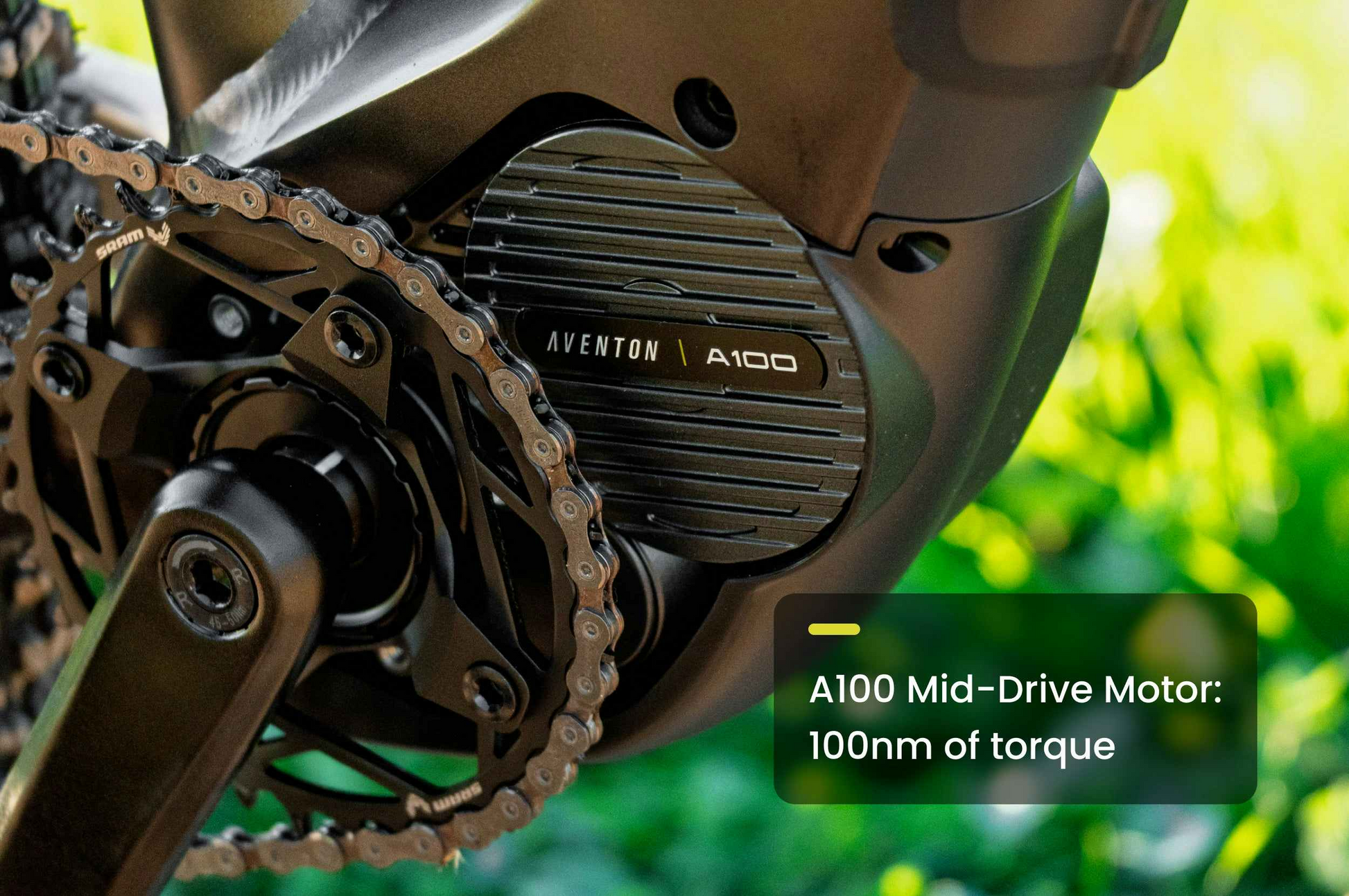

⚡ Aventon a100 Mid-Drive System

At the core of the Ramblas ADV is the Aventon a100 mid-drive motor:

• 250W sustained / 750W peak output

• 100Nm torque

• IP67-rated motor

• Double-sided torque sensor integrated into the motor

The torque-sensing system delivers precise, natural-feeling assist that responds instantly to pedal pressure making steep climbs smoother and technical sections more controlled.

Out of the box, the Ramblas is a Class 1 eMTB (pedal assist only) and can be adjusted up to Class 3 via the Aventon MyRide app.
Not throttle compatible.

🔋 Long-Range 708Wh Battery

• 708Wh internal battery

• 36V LG 21700 cells

• Up to 90 miles of range (claimed)

• TUV Certified to UL 2849 / UL 2271

• 42V 4A fast charger

• ~5 hour full charge time

The efficient mid-drive system helps maximize range, making this bike ideal for longer trail days.

🛠️ Real Trail Components

This is a proper mountain bike build — not a commuter dressed up as one.

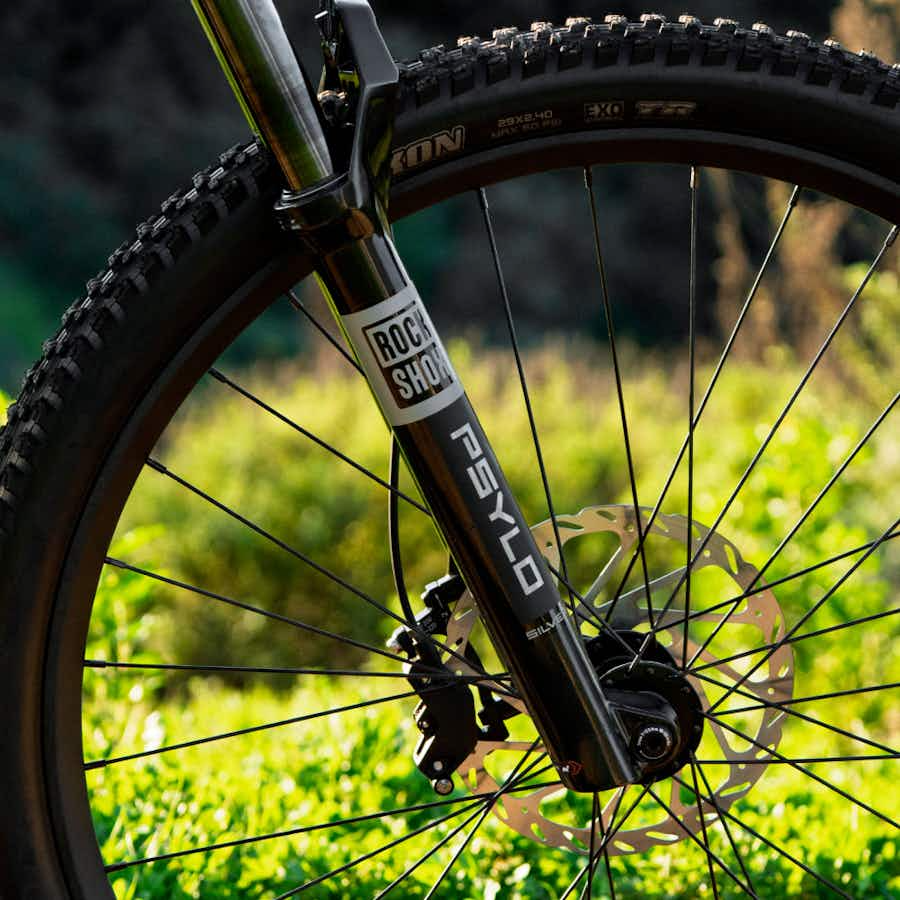

Suspension

• RockShox Psylo Silver R

• 35mm stanchions

• Coil spring

• Rebound adjustment

• BOOST 15x110mm front spacing

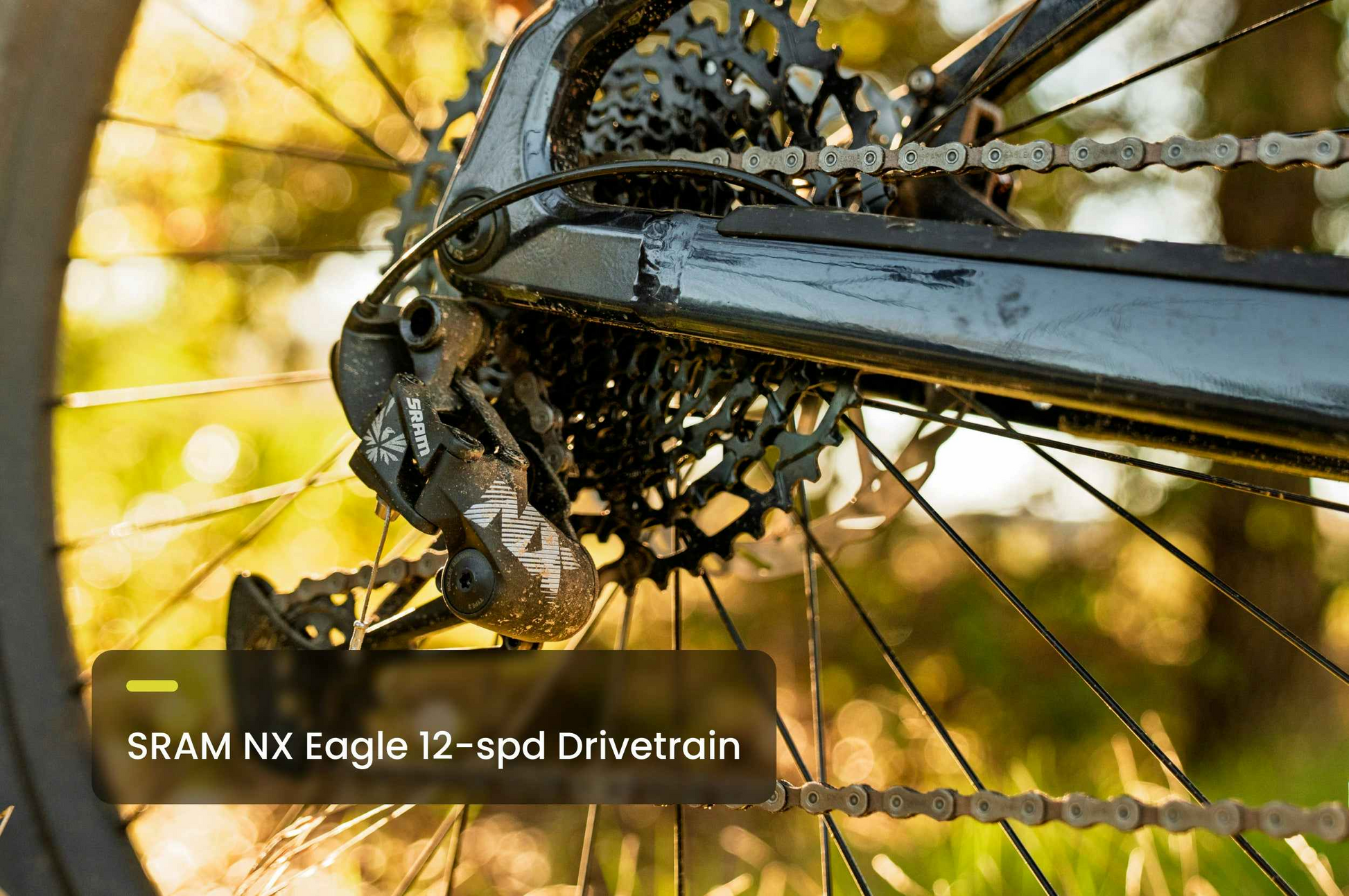

Drivetrain

• SRAM NX 12-speed rear derailleur

• SRAM NX shifter

• SRAM SX 10-50T cassette

• SRAM 34T chainring

• 165mm ISIS crankset

Wide gearing gives you the range needed for steep climbs and fast descents.

🛑 Powerful 4-Piston Braking

• SRAM DB6 4-piston hydraulic disc brakes

• 200mm SRAM G2 rotors front & rear

This setup delivers strong, consistent stopping power on technical terrain.

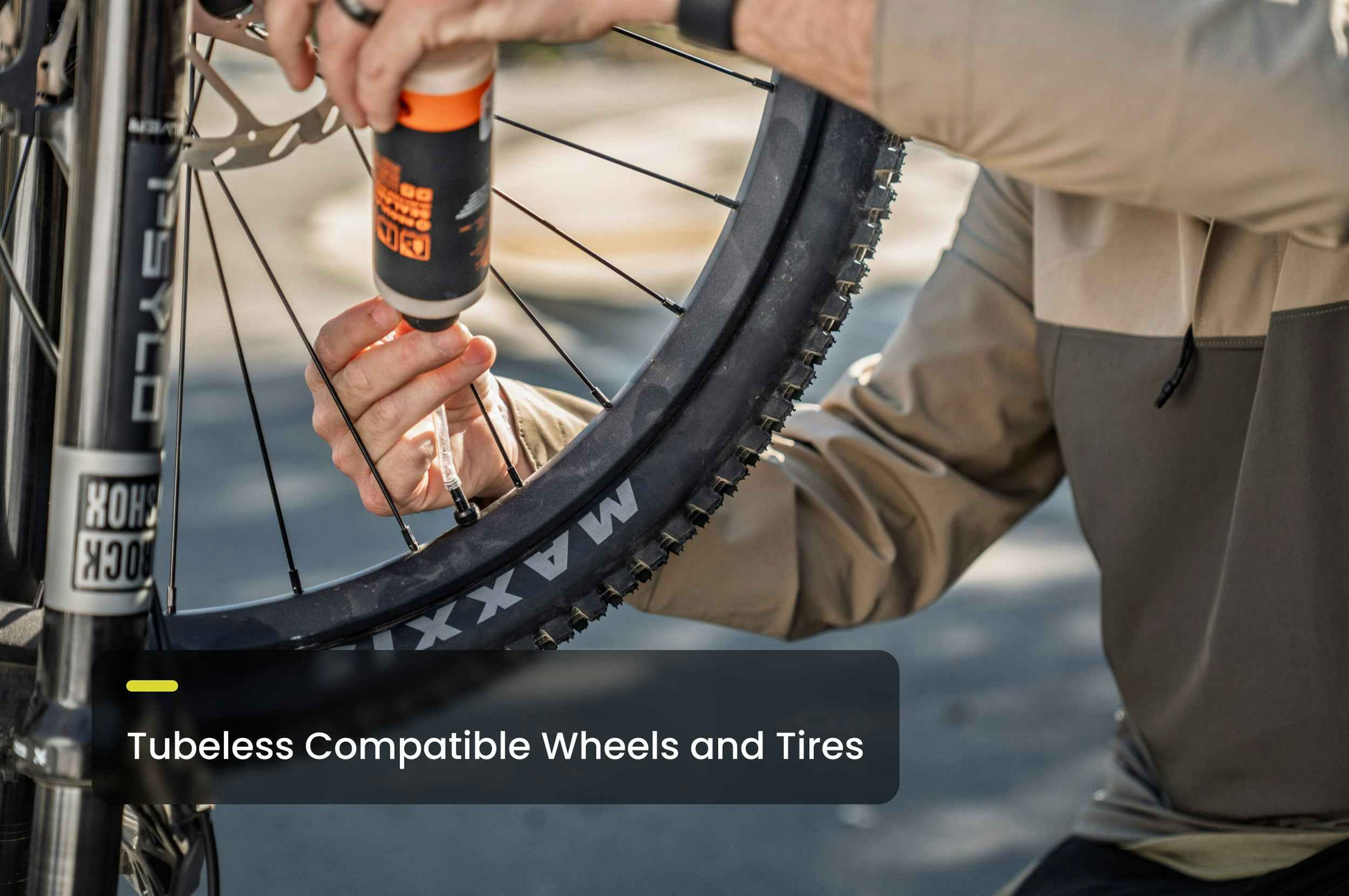

🛞 Trail-Ready Wheel & Tire Setup

• 29” BOOST wheels (15x110 front / 12x148 rear)

• Tubeless ready

• Maxxis Rekon 29” x 2.4” tubeless-ready tires

Designed for grip, control, and efficiency across varied trail conditions.

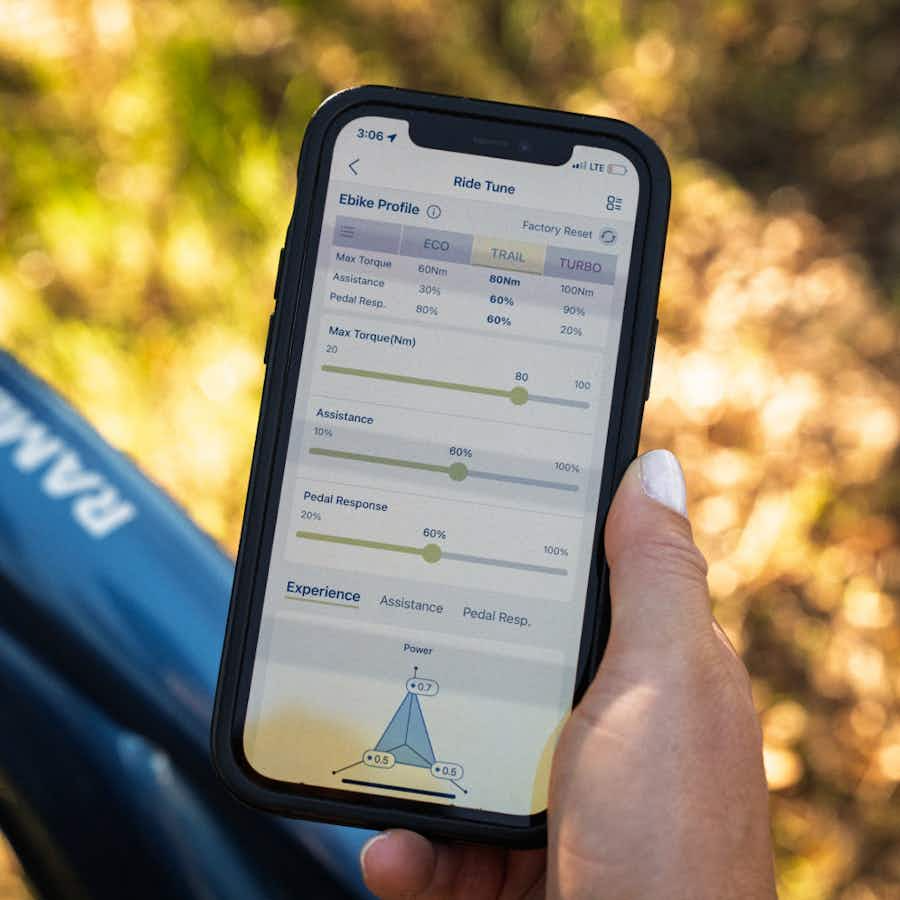

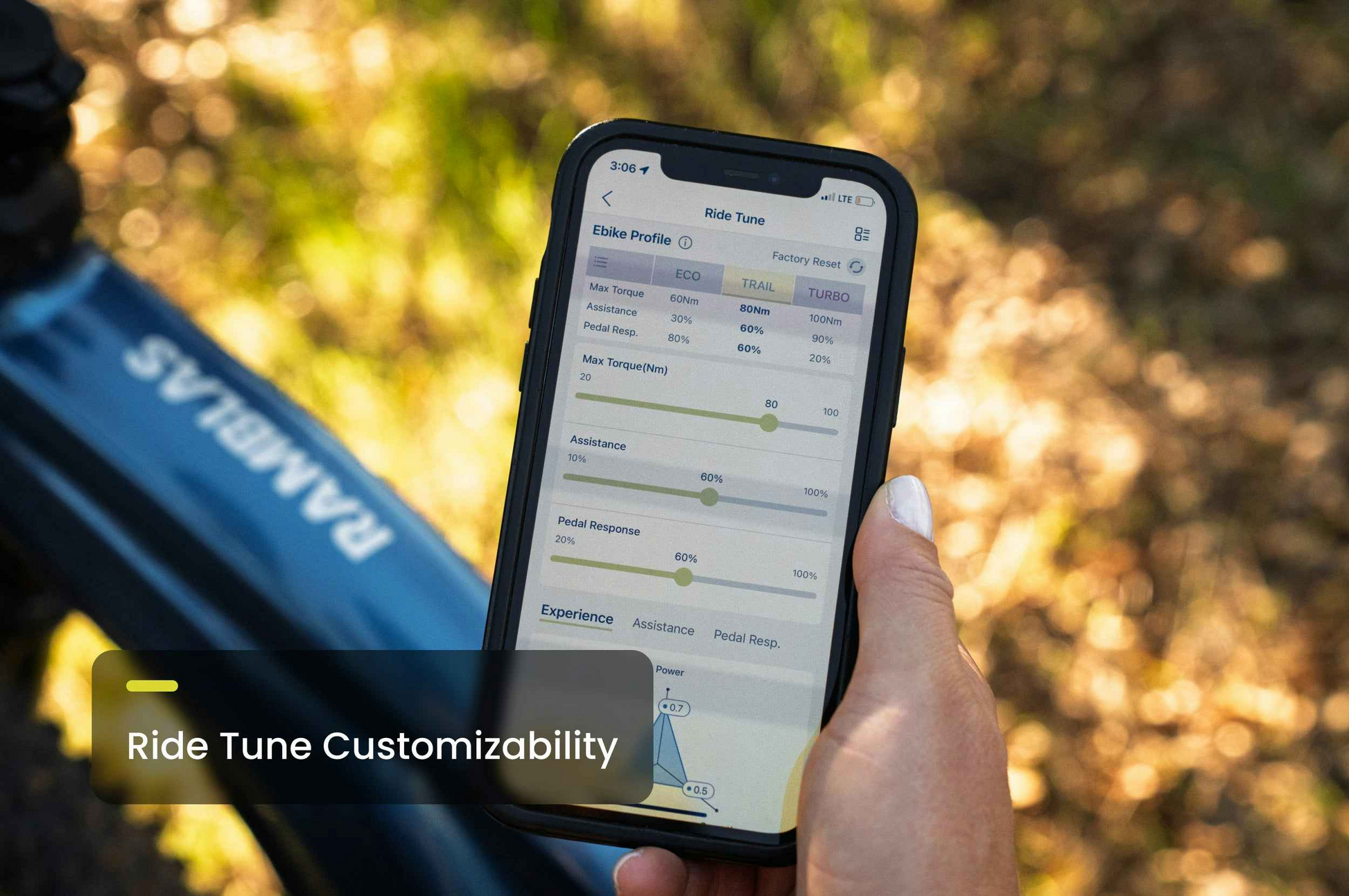

📱 Smart Integration

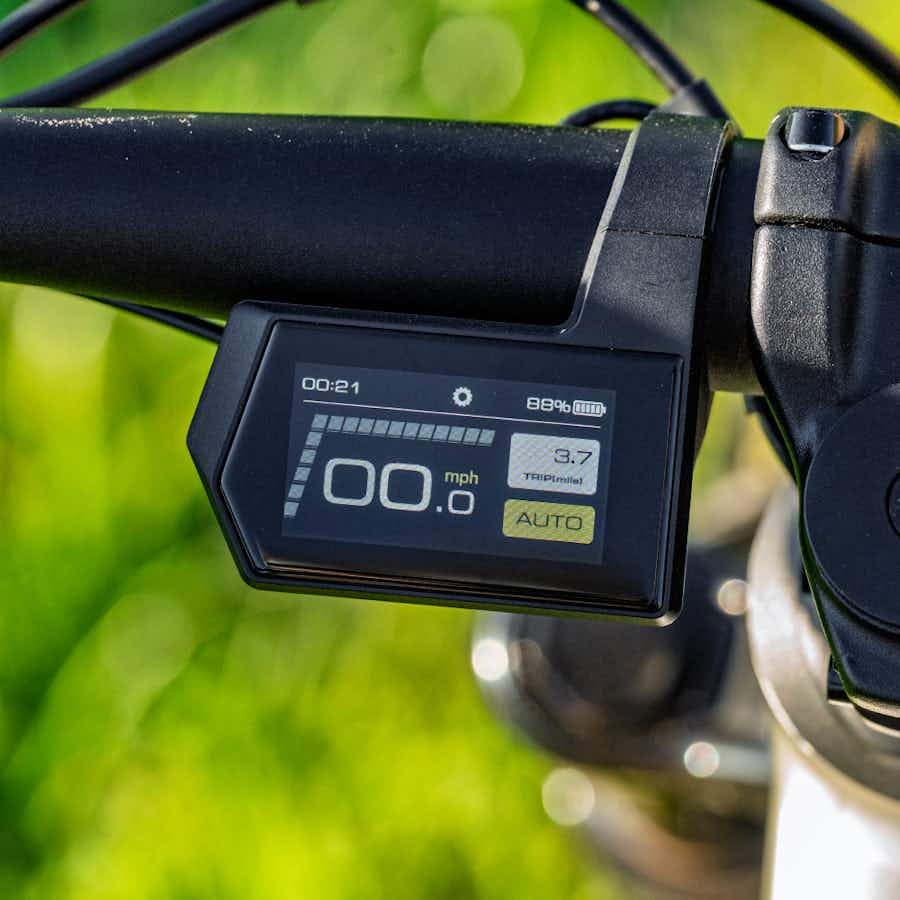

• Aventon BC201 display

• Aventon MyRide app compatibility

• Class adjustability via app

• Integrated lights

• IPX6 overall bike water resistance

• Motor rated IP67 (submersible for short periods)

Built for real-world riding conditions.

🚲 Key Specifications

Motor: Aventon a100 Mid-Drive, 250W sustained / 750W peak, 100Nm
Battery: 708Wh (36V LG 21700 cells)
Range: Up to 90 miles (claimed)
Class: Class 1 (Adjustable to Class 3 via app)
Throttle: Not compatible
Brakes: SRAM DB6 4-piston hydraulic, 200mm rotors
Fork: RockShox Psylo Silver R, 35mm stanchions
Drivetrain: SRAM NX 12-speed
Tires: Maxxis Rekon 29” x 2.4”

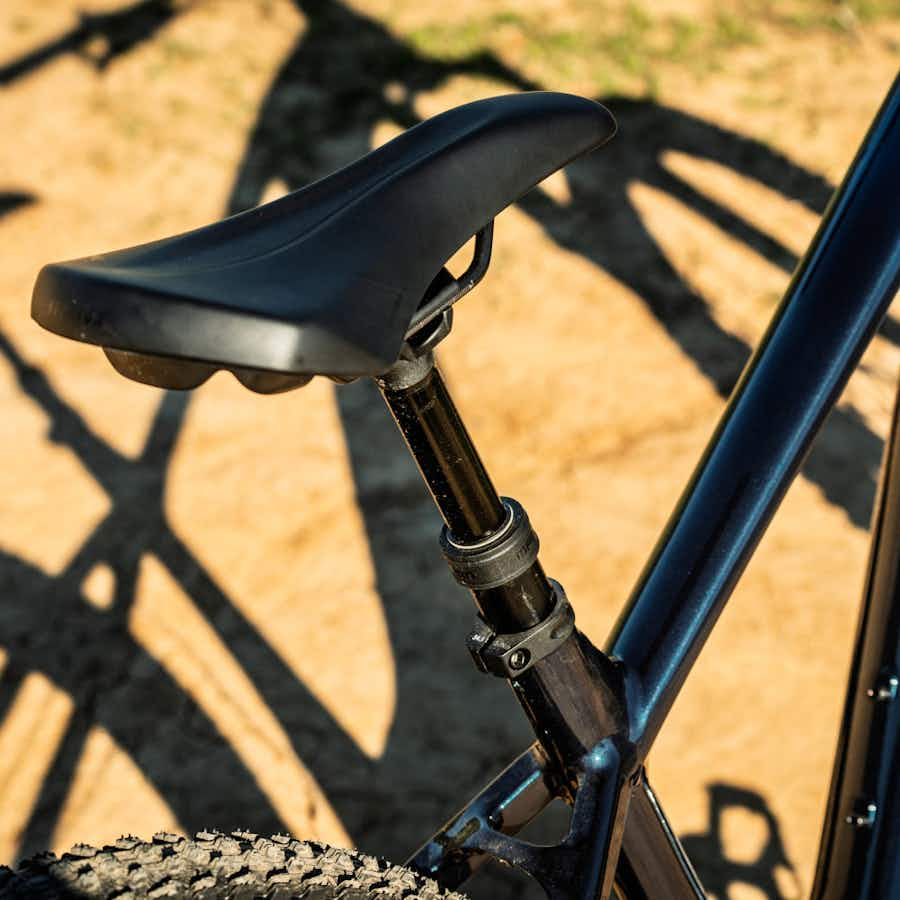

Seatpost: Manic LC 150mm dropper (M–XL)
Frame: 6061 Single-Butted Aluminum
Weight: 54 lbs
Max Rider Weight: 300 lbs
Water Resistance: Bike IPX6 / Motor IP67
Certifications: TUV Certified to UL 2849 & UL 2271

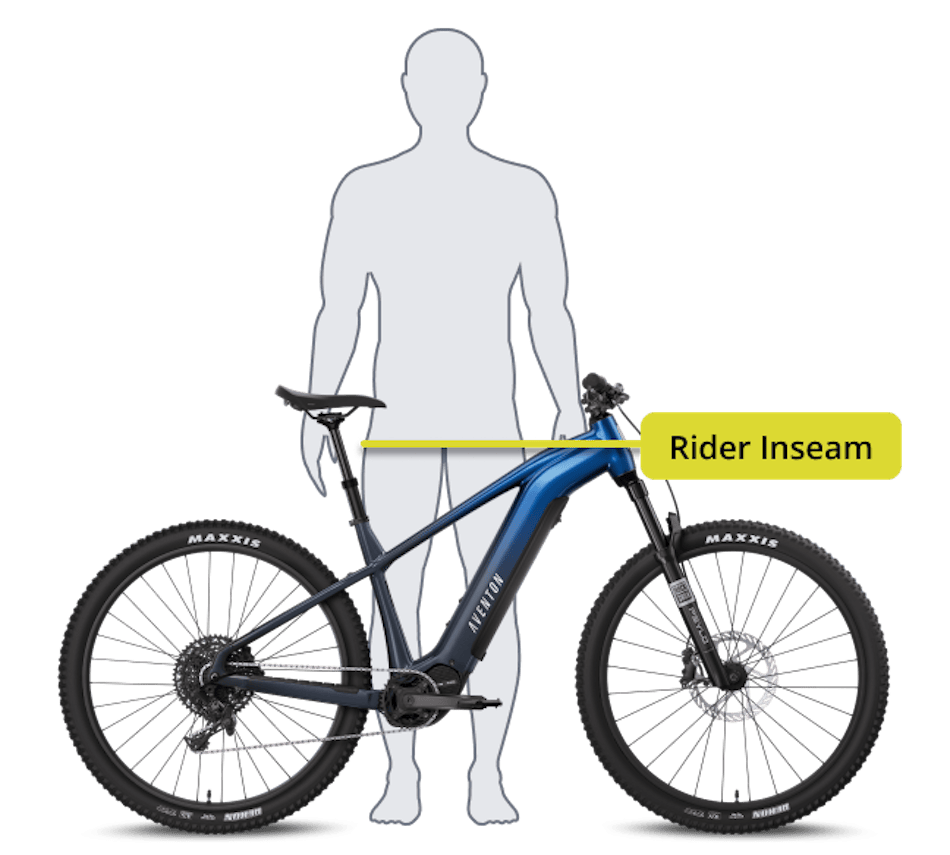

📏 Rider Fit

Recommended Rider Height:
5’5” – 6’5”

🌟 Why We Love It at Tampa Bay eBikes

The Ramblas ADV stands out because it delivers:

✔ True 100Nm mid-drive torque
✔ Premium SRAM 12-speed drivetrain
✔ 4-piston brakes with 200mm rotors
✔ Real mountain geometry
✔ Class adjustability via app
✔ Strong IP67 motor protection

It’s built for riders who want real trail performance — not just assist.

📍 Available at Tampa Bay eBikes

When you purchase from TBEB, you get:

✔ Professional assembly & suspension setup
✔ Local service & warranty support
✔ Trail-ready setup by experienced staff
✔ Test rides before you buy

👉 Come ride the Ramblas ADV and feel the difference mid-drive makes.
