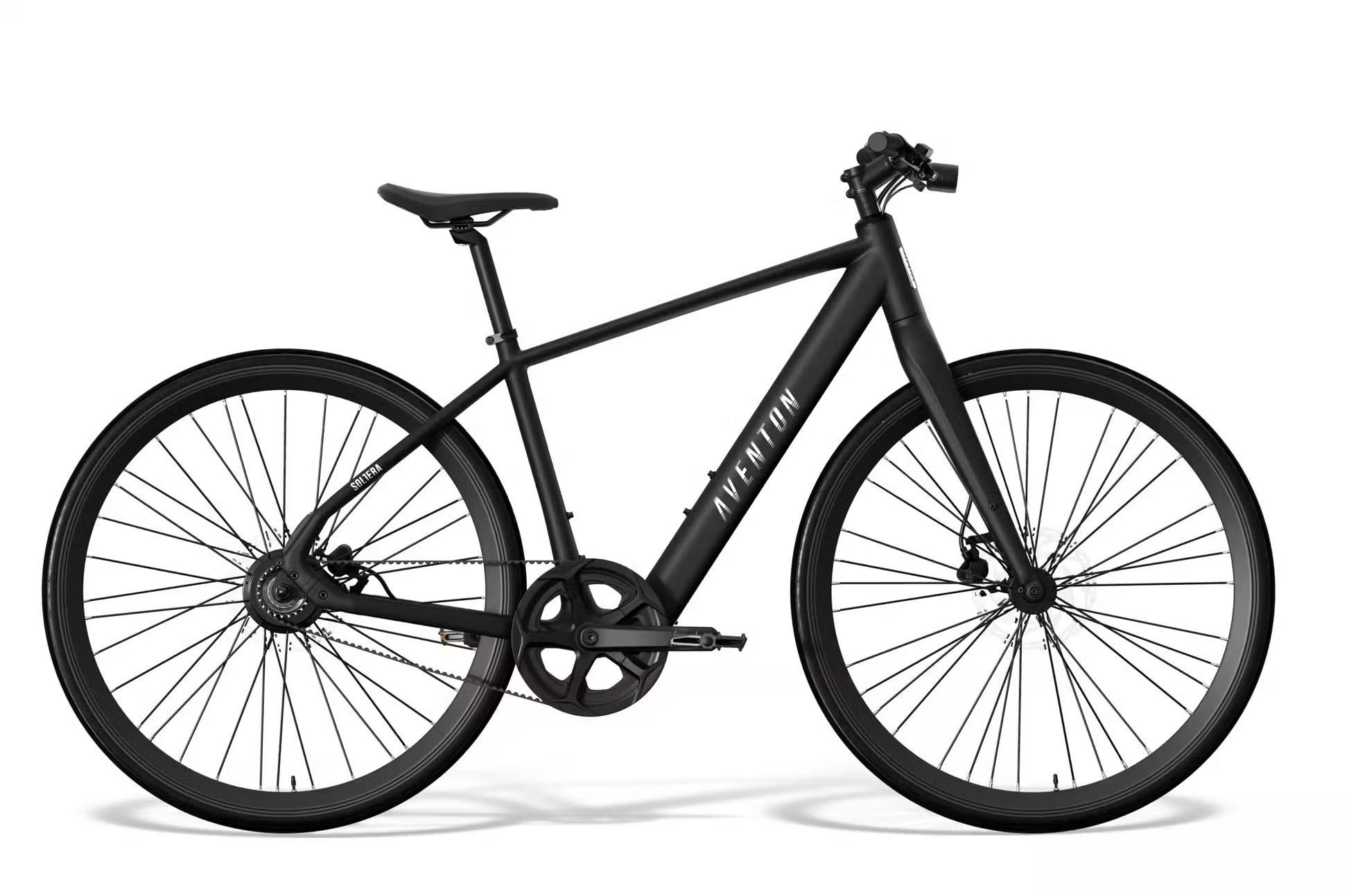

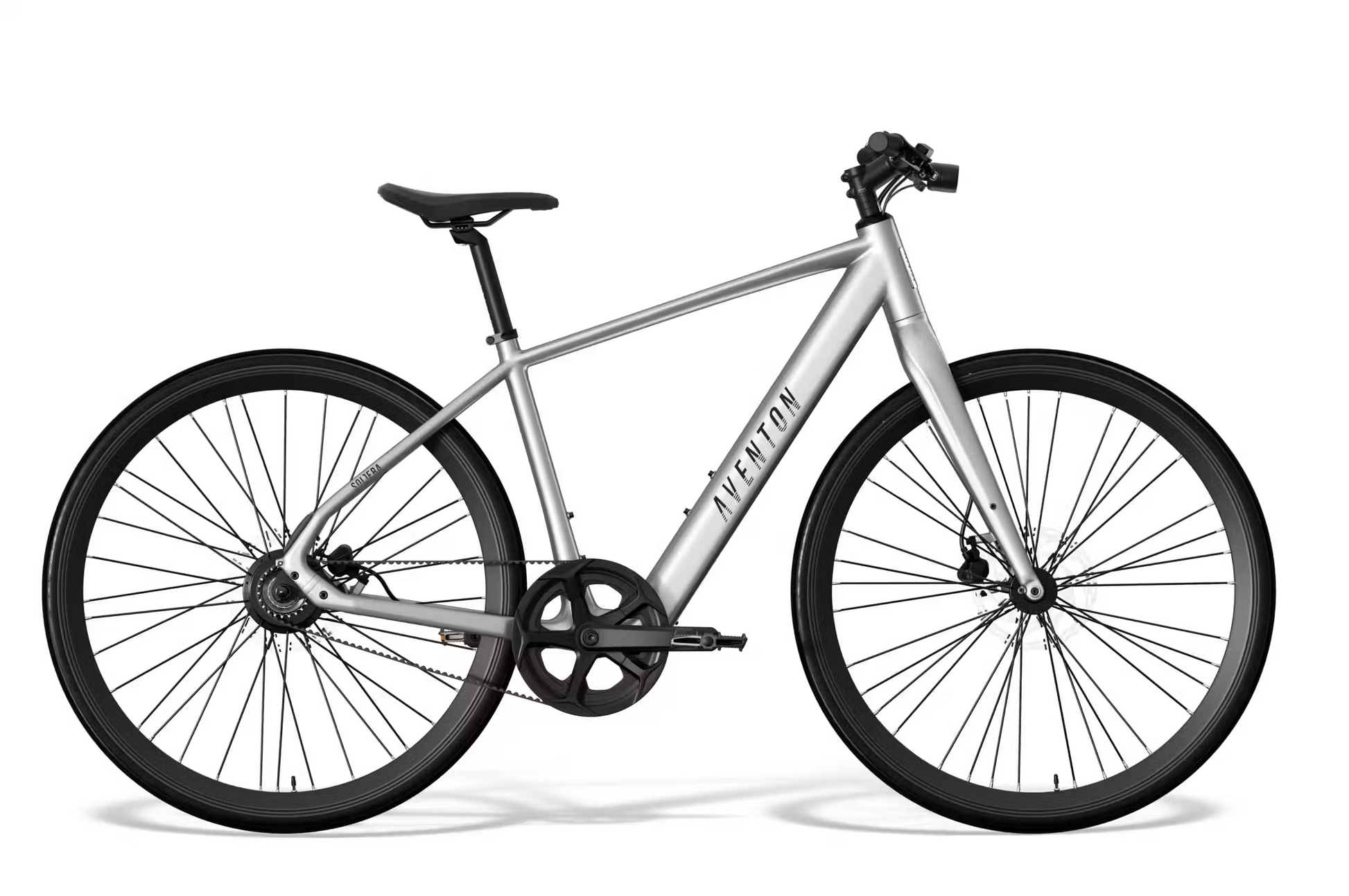

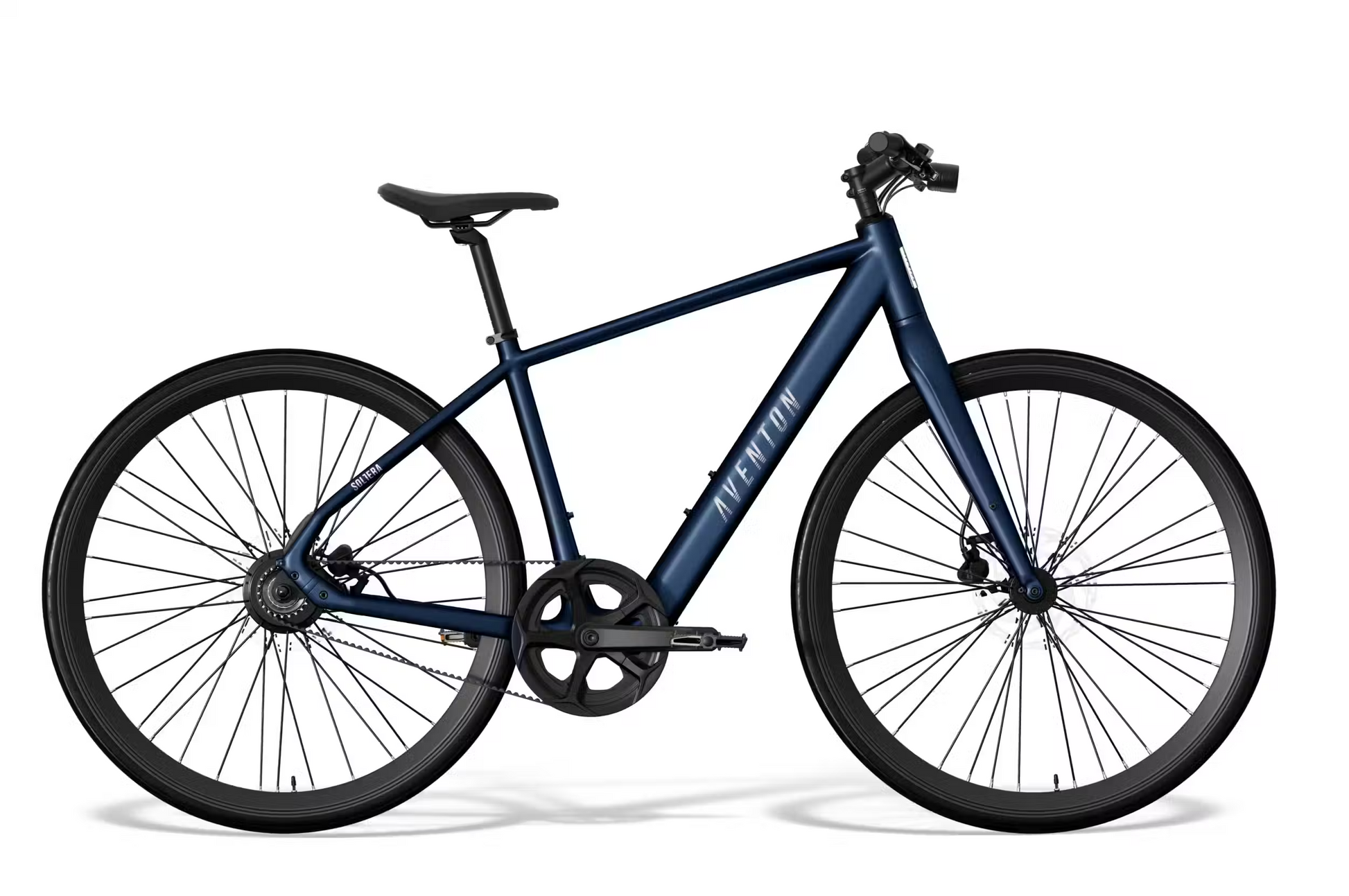

Aventon Soltera 3 ADV

Meet the Aventon Soltera 3 ADV, a sleek, simple city ebike built for everyday riding with less maintenance and more fun 🚲✨ Designed for urban agility, it pairs a lightweight feel with smooth, intuitive assist so you can cruise commutes, quick errands, and waterfront rides with confidence 🌴🌊

Why you will love the Soltera 3 ADV ✅

• Low-maintenance drivetrain: Gates Carbon Belt Drive keeps things clean and quiet, with no chain grease and no chain stretch 🧼🔇

• Natural pedal assist: A torque sensor responds to your effort for smooth, controlled power that feels more like “you, but faster” ⚡️

• Confident stopping power: Hydraulic disc brakes deliver strong, reliable braking in Tampa’s changing weather 🛑🌧️

• Simple and efficient: Single-speed setup for straightforward riding and easy upkeep 🎯

• Weather-ready build: Built to an IPX6-rated standard for strong water resistance in heavy rain and splashy conditions ☔️💦

Technical overview 🔧

The Soltera 3 ADV ships as a Class 1 ebike (pedal assist only) and is not throttle compatible 🚫🕹️

Gates Carbon Belt Drive eliminates common chain issues like stretch and typical wear. Belt systems often last 2 to 3 times longer than traditional chains and cogs under similar conditions 🔁⏳

IPX6-rated standard means the bike is protected against high-pressure water streams from any angle, offering strong water resistance for wet rides 🌧️✅ It is not waterproof and is not designed for submersion 🌊❌ Avoid pressure washers or high-pressure sprayers, since pressurized water can still damage electrical and mechanical components 🚿⚠️

*Max range is determined using PAS Eco on flat terrain with a 160 lb rider. Range varies based on rider weight, terrain, wind, temperature, tire pressure, and assist level 📏📉

General Info

• Model: Soltera 3 ADV Ebike
• Weight: 37lbs
• Total Weight Limit: 300 lbs
• Rider Height: S 5'1"-5'5", M 5'5"-5'9", L 5'9"-6'1", XL 5'1"-6'4"
• Water Resistance: IPX6
• Range: Up to 70 Miles
• Bike Safety Certifications: TUV Certified
• Battery Safety Certifications: TUV Certified
• Ideal Use: Urban Riding

Frameset

• Frame: 6061 Double-Butted Aluminum Alloy with Internal Battery
• Fork: Rigid Aluminum Fork
• Rear Spacing: 142mm
• Fork Spacing: 100mm
• Frame Style: Step-Over

Wheelset

• Front Wheel: 700c, 32-spoke, Double Wall Aluminum Rim, Thru Axle
• Rear Wheel: 700c, 36-spoke, Double Wall Aluminum Rim, Nutted Hub Drive Motor
• Tires: Kenda K1085 700x38C

Ebike System

• Speed: Class 1
• Motor: 36v, 250W
• Motor Torque: 40Nm
• Display: Aventon BC147
• Battery: Integrated Lithium-ion 36.9V, 9.94Ah, 366.8Wh
• Battery Weight: 4.2lbs
• Controller: 36v 15A
• Throttle: N/A
• Sensors: Double Sided Bottom Bracket Torque Sensor
• Charger: 36V Output: 42V/ 4A
• Charging time from 0% to 100%: 3-4 hours
• Lights: Front and Rear Lights Integrated w/ Turn Signals

Brakes

• Front Brake: Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
• Rear Brake: Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)
• Front Brake Rotor: Tektro 180mm 6 bolt
• Rear Brake Rotor: Tektro 180mm 6 bolt

Drivetrain

• Drivetrain: Single Speed, Gates Carbon Belt Drive
• Chainring: 60T
• Hub Flywheel: 22T
• Belt: Gates Carbon Belt Drive 122T CDN
• Chainring BCD: 130
• Crankset: 3pc, 165mm crank arm
• Bottom Bracket: Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
• Pedals: 9/16" Composite Platform

Cockpit

• Saddle: Aventon Saddle
• Seatpost: Aventon 27.2
• Seatpost Clamp: 31.8mm
• Handlebars: Aluminum 31.8mm, 680mm
• Stem: 31.8mm, 70mm Length, 15°
• Grips: Aventon Lock on grips
• Headset: Aventon headset with integrated cable routing

Included Accessories

• Kickstand: Included in accessory box
