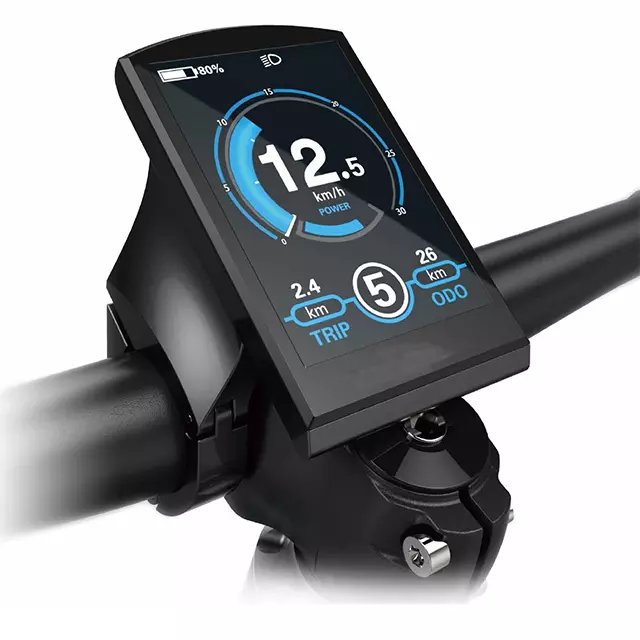

Key Display KD986N - Upgrade / Replacement for eBikes

Key Display KD986N — Now with Bluetooth, Apple Find My, and USB-C

The KD986 has been replaced by the updated KD986N. It adds Bluetooth connectivity for the Key-Disp (Key-Display) app, integration with Apple’s Find My network, and a built-in USB-C port for charging on the go.

App & Connectivity

• Bluetooth pairs with the Key-Disp app for: bike info, controls, location, ride records, and diagnostic data.

• Optional Turn-by-Turn Navigation: $6.00/month, billed in-app by Key-Disp/the navigation provider (not by Tampa Bay eBikes).

  App Info & Instructions: https://drive.google.com/file/d/1rCFl-fhCZLhzrAFs8-YFtlTAZfLuj1oE/view?usp=drive_link

Key Features

• High-luminance, fast-response screen with updated graphics

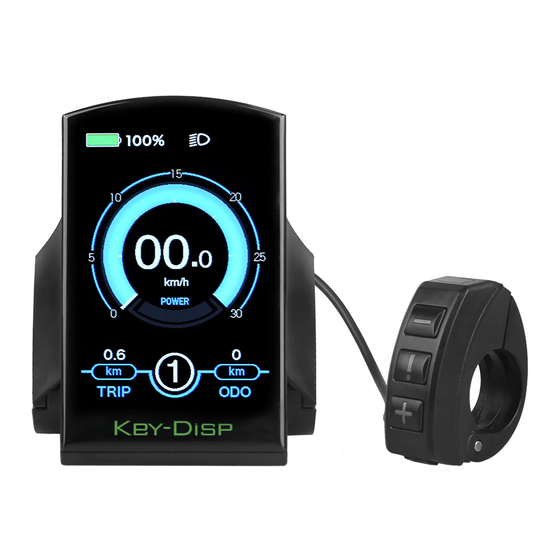

• Detachable 4-button remote (note: the “+” button toggles lights)

• Light sensor for automatic headlight on/off

• Built-in USB-C for phone/accessory charging

• Up to 9 PAS levels

• Power-on password option

• Display does not dim when lights are on

Settings & Limits (bike-dependent)

• Easy access to key parameters: wheel size, speed limit, battery voltage, assist tuning, and more

• Max speed-limit setting: up to 56 mph (off-road use; see legal note below)

• Max current limit: 25 A

• Performance varies based on your bike’s components; some setups may see no performance change

US/EU Mode Switching

(where supported)

Mode switching is done by pressing the “i” button on the remote. Availability varies by make/model; preset limits cannot be overridden in the settings menu.

US modes

• ECO: 4 mph throttle, 20 mph PAS limit

• STD: 4 mph throttle, 28 mph PAS limit

• PER (Max): Unlimited throttle & PAS (max speed-limit mode)

EU modes

• ECO: 6 km/h throttle, 25 km/h PAS limit

• STD (Max): Unlimited throttle & PAS (max speed-limit mode)

On some bikes, throttle may share the same limit as PAS (e.g., 20/28 mph in the US, 25 km/h in the EU). Max speed-limit mode is generally for off-road use only. Local regulations vary; we make no claims regarding legal compliance in your area.

Fitment Notes

• Himiway Cruiser/Cruiser ST: Check the back of your stock display and select the option that matches the five middle digits printed on it.

• Some displays may show different graphics.

• Please specify your bike’s make & model at checkout. We’re not responsible for incorrect orders. May work with other e-bikes, but purchase at your own risk—reach out first if unsure.

Compatibility

• Addmotor

• Airwest

• Bafang UART With Female Higo

• Bafang V 5.8

• Bafang V 5.8 Dual Motor

• Coffman AWD Maxx

• Coffman Mule

• Coffman Ridgeline, Mamba, Alpha, Omega

• Eahora

• Engwe

• Envo

• EOOOU

• Euybike

• Himiway C5 Sport w/DZ40

• Himiway C5 Ultra w/C-2

• Himiway Cruiser, Step-Through, or Escape With 22798 or 26798

• Himiway Cruiser, Step-Through, or Escape With 23595 or 26595

• Himiway D3

• Himiway D5

• Himiway D7

• Himiway Rhino

• Himiway Zebra, Cobra, Big Dog

• KBO Breeze or Step Through

• KBO Ranger

• KBO Tornado

• Lectric

• MATE

• Mavric

• Opeak

• Other

• Pasalec

• Polarna

• RAEV

• Rattan

• RBSM

• Ride1Up

• SDream

• Snapcycle 20” Tires

• Snapcycle 26” Tires

• Sole

• Sole e24

• Synergy

• Tesgo

• Trustmade

• Velotric

• Walkke

• Wolf Artic

• Yamee

Note: Please verify your e-bike's LCD connector type before ordering. Contact us if you're unsure about compatibility.
