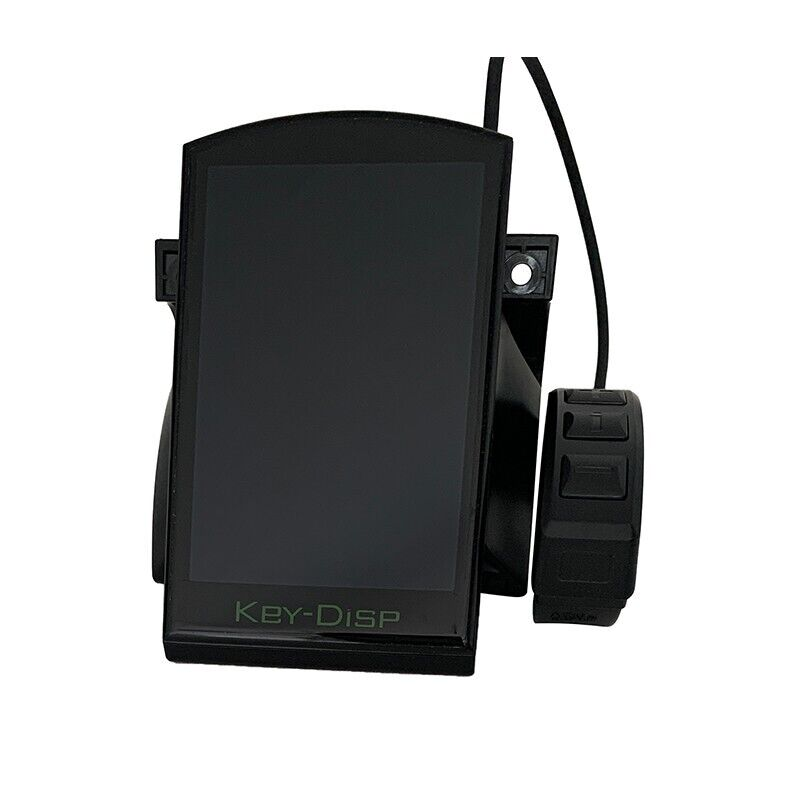

KD986N Color LCD Display With Bluetooth and FindMy

KD986N for most models is now equipped with bluetooth for connecting to the Key-Display App, Apple's FindMy Feature for connecting to Apple Find my App, and built in USB-C.  The App provides for bike info, bike control, bike position, cycling records, and diagnostic information all through the App.  Navigation is also available at an additional cost of $6.00 per month which is paid through the App.  It is not a fee from us, rather from Key-Disp and the navigation service provider.  App Info and Instructions:  https://drive.google.com/file/d/1rCFl-fhCZLhzrAFs8-YFtlTAZfLuj1oE/view?usp=drive_link

Key Display model KD986N specifically configured for use with many different ebikes including the Himiway Zebra, Cobra, Cruisers, Escape, Big Dog, KBO Breeze, KBO Ranger, KBO Tornado, Yamee, Addmotor, Snapcycle, Eahora, MATE, EOOOU, Coffman, Sole, and others. See what Citizen Cycle says about our display:  https://www.youtube.com/watch?v=pcUh29V7vs0&t=439s.  Easy to operate interface. Easy installation. Updated graphics. High luminance, Faster response, Detachable remote and built in USB-C.  Light sensing for automatic on/off of lighting circuit. Allows easy access to various parameter settings including wheel size,  speed limit, battery voltage, power assist parameters, etc.  The max speed  limit setting is 56 mph.  Results vary depending on ebike components.  There may or may not be a performance improvement.  The max current limit setting is 25 amps.  The displays do not dim when the lights are turned on.  Up to 9 pedal assist levels.  Includes built in USB-C for phone charging, etc.  Power-on password option.  Results vary  depending on ebike components.  All units are tested on an actual bike  prior to shipment.  Please specify make and model of bike when  ordering as we are not responsible if display is ordered for the wrong bike.  May work on other ebikes but purchase is at  your own risk.  Contact us first if you have a bike not listed.  Note that the remote is a 4 button remote and that the  “+” button on the remote is used to turn on and off the lights.   Shipping, handling, and tax included to continental U.S.A. only.  Choose additional international shipping fee from options if shipping to country other than U.S.A.  6 month warranty.  Additional import fees may apply to international purchasers that are not included in the international shipping fee and are the responsibility of the purchaser. FOR HIMIWAY CRUISER/CRUISER ST PLEASE LOOK AT THE BACK OF YOUR DISPLAY AND CHOOSE THE OPTION THAT MATCHES THE 5 MIDDLE NUMBERS ON YOUR STOCK DISPLAY.  Some displays will have different graphics.

US and EU Mode switching now available.  US mode switching allows for mode switching between 4 MPH throttle and 20 MPH PAS speed limit mode (ECO), 4 MPH throttle and 28 MPH PAS speed limit mode (STD), and unlimited throttle and PAS mode (PER or max speed limit mode).  EU mode switching allows for mode switching between 6 Km/h throttle and 25 Km/h PAS speed limit mode (ECO) and unlimited throttle and PAS mode (STD or max speed limit mode).   On some bikes throttle will have same speed limit as PAS, ie., 20 MPH or 28 MPH for US bikes, 25 Km/h for EU bikes. Mode switching is by pressing the "i"  button on the remote.  Mode switching only available for certain make/model bikes at this time.   Mode switching has preset speed limits that cannot be overridden in the settings menu.  Max speed limit mode is generally for off road use only.  Other modes may or may not be compliant with laws in your area and we make no representation regarding compliance.
