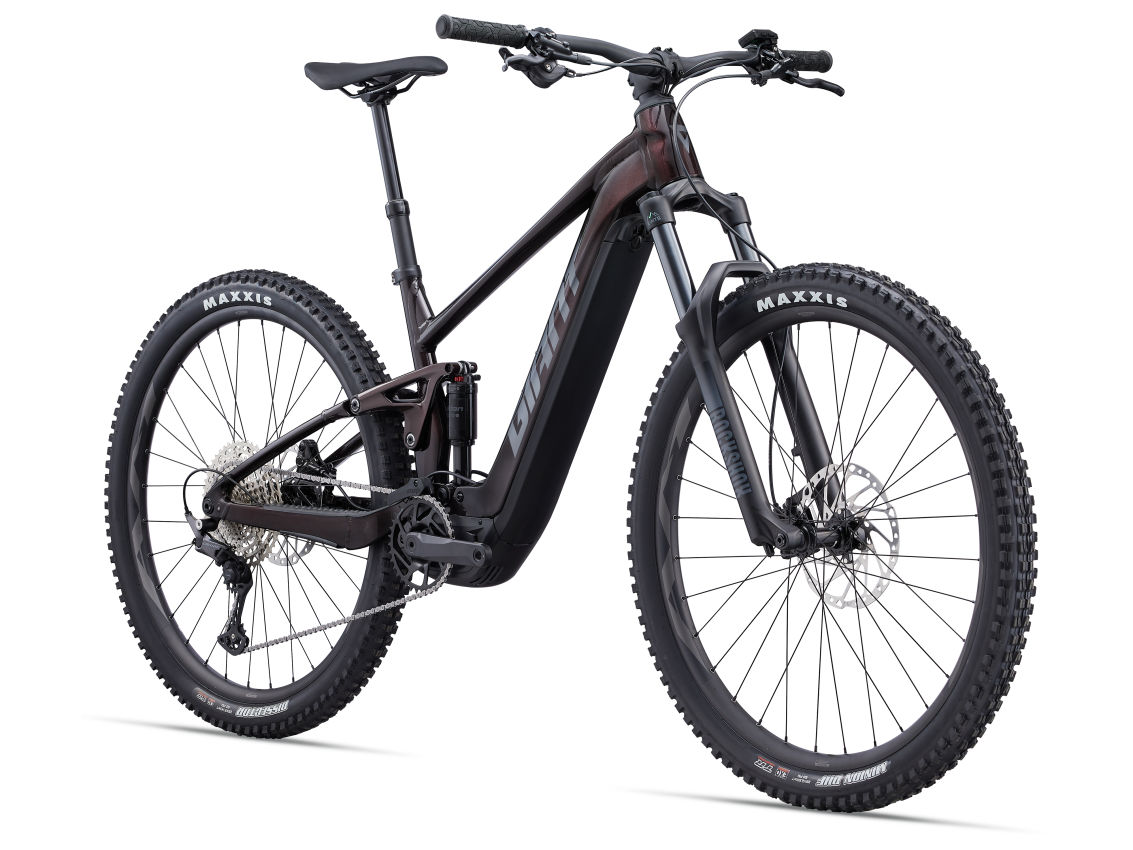

• A black Giant Stance E+1 Pro electric mountain bike with thick tires and a powerful motor, isolated on a white background.
  • A modern Giant - Stance E+1 Pro electric mountain e-bike with a black frame and maxxis tires, displayed against a white background.
1 2

Giant

Giant - Stance E+1 Pro

Giant - Stance E+1 Pro

$4,000.00
$5,300.00 $4,000.00
Sale Sold out
Shipping calculated at checkout.
Size

RIDE TRAILS WITH CONFIDENCE, CONTROL AND FLAT-OUT FUN. THIS NEW E-BIKE HAS A POWERFUL MOTOR, PLUSH SUSPENSION, AND INTUITIVE CONTROLS THAT CAN TAKE YOUR TRAIL ADVENTURES TO A WHOLE NEW LEVEL.

KEY PERFORMANCE FACTORS

Powerful pedaling support

The SyncDrive Pro motor with 85Nm of torque and 400 percent tunable support helps riders climb steep, rugged trails with greater ease.

Confident handling

ALUXX SL aluminum frame with 125mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.

Long-lasting fun

The new EnergyPak 800 offers the longest possible range. The integrated battery pack makes charging quick and easy.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.

  S M L XL
SEAT TUBE LENGTH (inch) 15.7 16.7 17.7 18.7
SEAT TUBE ANGLE 76.0° 76.0° 76.0° 76.0°
TOP TUBE LENG TH (inch)
 22.8 23.9 25.2 26.4
HEAD TUBE LENGTH (inch) 4.1 4.5 4.9 5.3
HEAD TUBE ANGLE 65.5° 65.5° 65.5° 65.5°
FORK RAKE (inch) 1.7 1.7 1.7 1.7
TRAIL (inch) 4.9 4.9 4.9 4.9
WHEELBASE (inch) 47.4 48.5 49.9 51.2
CHAIN STAY LENGTH (inch) 18.4 18.4 18.4 18.4
BOTTOM BRACKET DROP (inch) 1.6 1.6 1.6 1.6
STACK (inch) 24.3 24.7 25 25.4
REACH (inch) 16.7 17.7 18.9 20.1
STAND OVER HEIGHT (inch) 29.9 29.9 30.7 31.3
HANDLEBAR WIDTH (inch) 30.7 30.7 30.7 30.7
STEM LENGTH (inch) 1.6 1.6 2 2
CRANK LENGTH (inch) 6.5 6.5 6.5 6.5
WHEEL SIZE 29" 29" 29" 29"


Detailed Specs

  • Motor
    Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Dash, Smart Assist automatic mode, 5 manual support levels, USB-C (10W)
  • Display
    Giant RideControl Dash, high-angle visibility, full color LCD display
  • Battery
    Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
  • Charger
    Giant EnergyPak 6A smart charger, 60% in 2:15h
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL
  • Colors
    Cordovan
  • Frame
    ALUXX SL-grade aluminum, 1.5"~1.8" head tube,125mm travel FlexPoint suspension system, 'Boost' 148x12 UDH rear axle, EnergyPak Plus Range Extender Compatible
  • Fork
    RockShox 35 Silver, 140mm, 1.8" tapered steerer, 110x15 Maxle Stealth
  • Shock
    SR Suntour Raidon R, 190x45mm, recommended sag: 30%
  • Handlebar
    Giant Connect TR Riser 31.8x780mm
  • Grips
    Giant Tactal single lock-on
  • Stem
    Giant Contact
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
  • Saddle
    Giant Sport
  • Pedals
    Flat pedal
  • Shifters
    Shimano Deore
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    Shimano Deore 12-speed
  • Brakes
    Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm
  • Brake Levers
    Tektro HD-M745 Orion
  • Cassette
    Shimano CS-M6100-12, 10-51T, 12-speed
  • Chain
    KMC e.12 Turbo, EcoProteq, e-bike optimized
  • Crankset
    FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
  • Rims
    Giant AM30, Tubeless ready, 30mm inner width, 29"
  • Hubs
    Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • Spokes
    Sapim E-Lite [R] Race [F], e-bike optimized
  • Tires
    Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40"" Foldable, WT, TLR, EXO, 60TPI [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter

Materials

Dimensions

  • Weight:
  • Height:
  • Length:
  • Suggested Rider Height:

Care Instructions

View full details
