Tampa Bay eBikes

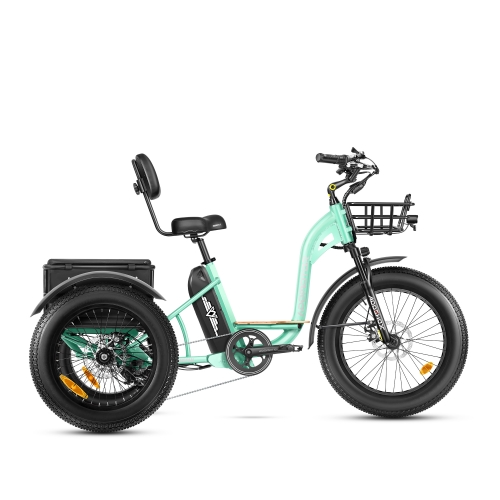

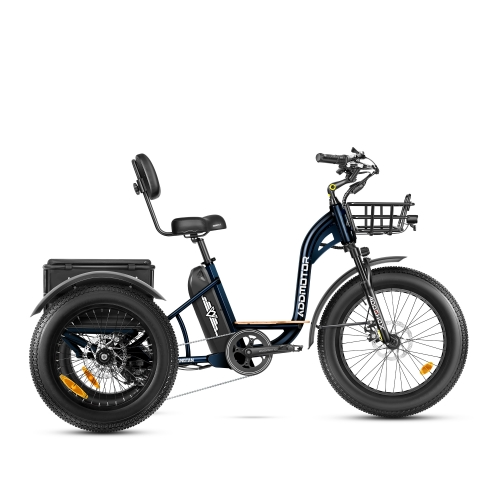

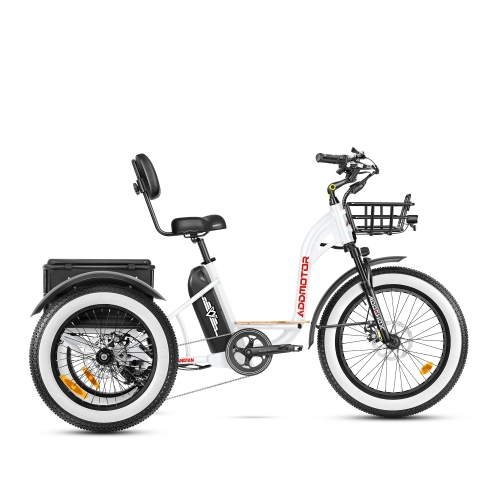

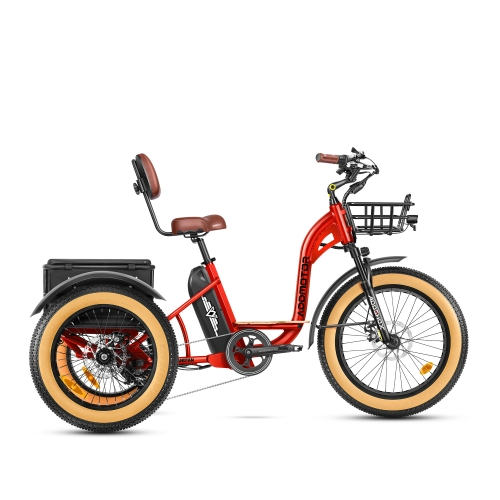

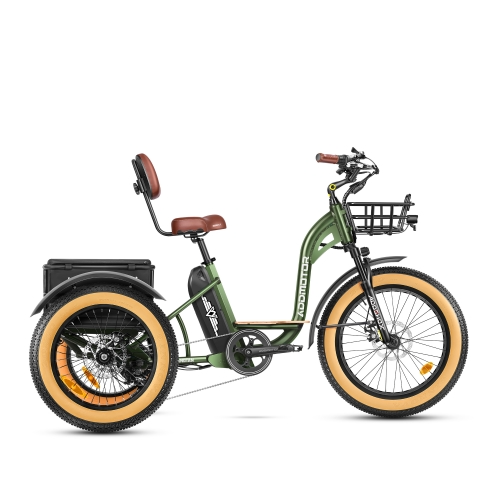

ADDMOTOR GRANDTAN II M-340

ADDMOTOR GRANDTAN II M-340

Regular price $2,899.00
Regular price $3,099.00 Sale price $2,899.00
Sale Sold out
Shipping calculated at checkout.
Color
An eTrike for Unlimited Adventures

Explore effortlessly with the Grandtan E-Trike. Its fat tires smoothly navigate various terrains for a seamless ride.

GRANDTAN M-340 E Trike


Motor
750W Rear-Mounted Motor
Battery
960Wh UL-Certified Battery w/ Samsung Cells
Sensor
Torque Sensor
Max Motor Torque
90 Nm



Grandtan: Standard Wheels

Suits riders in the height range of 5'2"-6 '4", max load capacity up to 450 lbs.

Upgraded 750W Rear Motor

The rear-mounted motor makes the Grandtan much more stable and helps maintain a better balanced ride when climbing hills

Max Motor Torque: 90 Nm

Peak Motor Watts: 1,400W

Rear Differential: Turn Better

The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. Grandtan better ensures you smooth and safe trike riding.

EB 2.0 Samsung Cell Battery

World’s first 48V*20Ah UL Recognized battery built w/ Samsung latest 50E 21700 cells. It offers a stable 30A output current capability and IPX6 water resistance to withstand heavy rain and showers for your safety.

Charging Time: 8-10 hrs

In Accordance with UL-2271

No Roll, No Slip

The new parking brake system can lock the wheels in place when activated. So you can stop or park anywhere with confidence.

PEDAL-ASSIST
PAS LEVEL SPEED RANGE
PAS 1 8 mph 85 miles
PAS 2 10 mph 75 miles
PAS 3 12 mph 65 miles
PAS 4 14 mph 55 miles
PAS 5 16 mph 50 miles
PAS 6 18 mph 45 miles
PAS 7 20 mph 40 miles



Smooth, Responsive Pedaling

With the mid-axis torque sensor, the Grandtan can better match your pedaling effort, boosting your efficiency and comfort for a more natural and responsive ride.

Mechanical Disc Brake With Motor Cutoff Sensor

Full-wheel Tektro mechanical disc brake
system with an automatic motor cutoff
sensor allows you to slow or stop quickly.

180mm F / 2*180mm Rear Brake Rotors

Technical specs
-Electronics
Motor- 48V*750W Rear-Mounted Brushless Motor: 90 Nm Torque; 1400 Watts Peak Power.
Battery- Addmotor EB 2.0 48V*20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells | Charging Time: 8-10 Hrs; Rated For 1,000-1,500 Charge Cycles.
Display- Addmotor EB 2.0 LCD Display
Controller- Addmotor 25A Controller
Throttle- Right Hand Half Twist Throttle with Switch
Lights- Latest EB 2.0 front light and 5-in-1 taillight
USB Port- Integrated in Display, 5V, 1Amp
Wiring- Water-Resistant Connectors and Wiring Harness
Pedal Assist- Intelligent 7 Level Pedal Assist, Upgraded Torque Sensor
Charger- 48V*2A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Max Range- Up to 85 Miles Per Charge with PAS 1(Estimated)
-Components
Frame- 6061 Aluminum Alloy Frame
Front Fork- Oil Spring Fork with 80mm of Travel
Brake- Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors- 180mm Front / 2*180mm Rear Rotors on 3 Wheels
Stem- Aluminum 100mm + Adjustable Angle (90°)
Tires- 24" X 4.0" Front & 20" X 4.0" Rear Fat Tires
Grips- Durable Ergonomic Design
Handlebar- Black Aluminum, 630mm Wide, Sweep Back
Seat Post- Aluminum 270mm x 31.6mm
Saddle- Addmotor Exclusive Well Padded Saddle with Backrest
Seatpost Clamp- Quick Release
Rims- Aluminum Double Wall, 36H
Spokes- Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals- Wellgo Aluminum with Standard 9/16'' x 20 TPI Threading
Fenders- Aluminum Fenders, Front & Rear Included
Basket- Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset- Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur- SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter- SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel- SHIMANO SIS Index 7-Speed, 14-32T
Chain- KMC Rust Resistant Chain

Materials

Dimensions

  • Weight:
  • Height:
  • Length:
  • Suggested Rider Height:

Care Instructions

View full details
