• Addmotor - Grandtan Plus II 2024 with a front basket and rear rack, featuring wide tires and a blue frame. This model, known as the Addmotor - Grandtan Plus II 2024, is powered by a 750W rear motor.

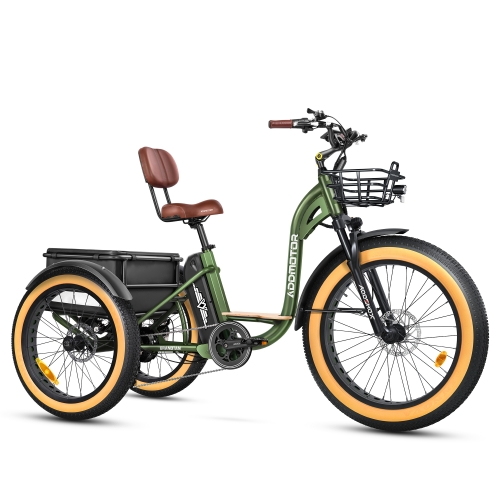

  • Addmotor's Grandtan Plus II 2024 electric cargo bike with fat tires, a UL Certified Battery, and a rear storage rack.

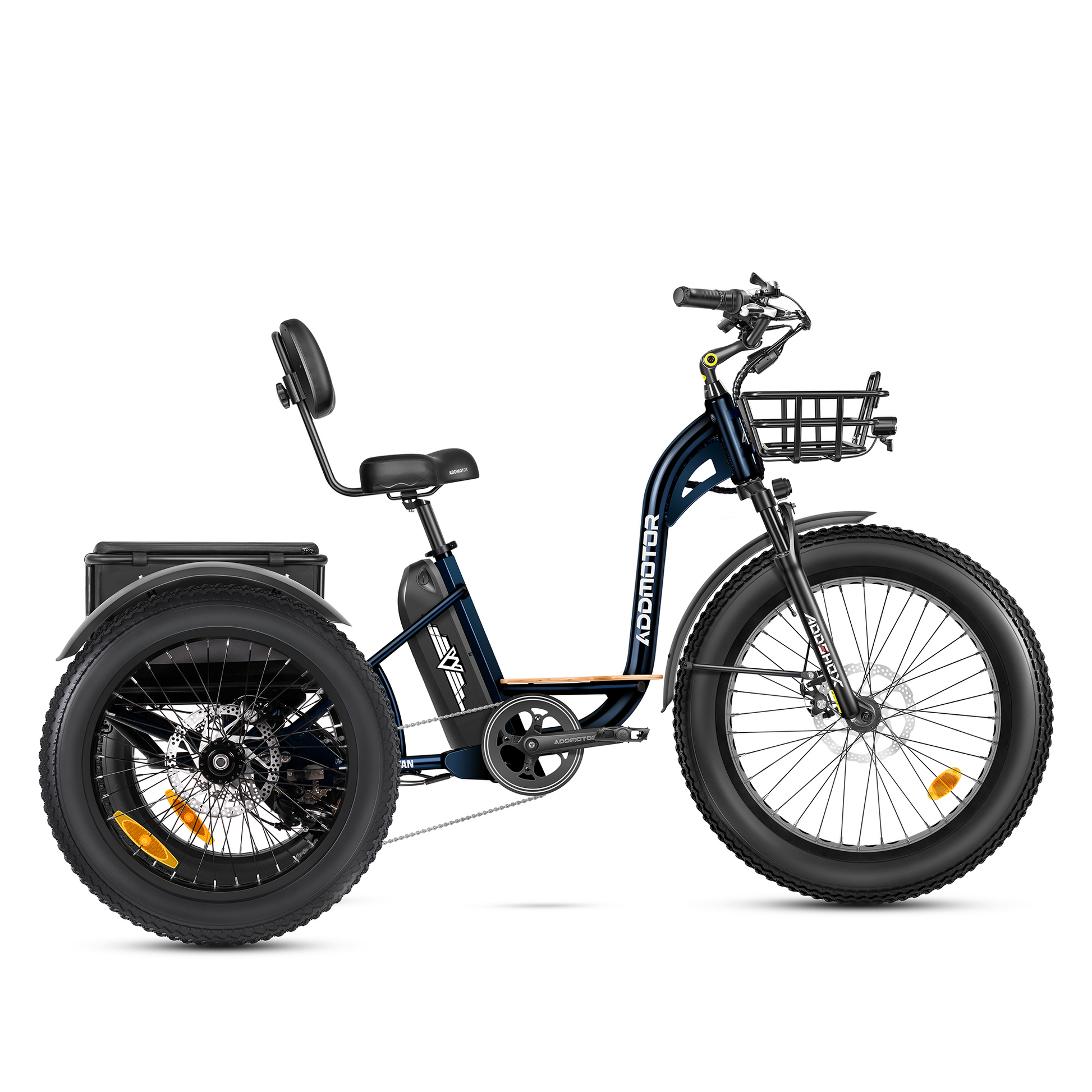

  • Addmotor - Grandtan Plus II 2024 three-wheeled electric bicycle with cargo storage on a white background.
1 1

Addmotor

Addmotor - Grandtan Plus II 2024

Addmotor - Grandtan Plus II 2024

$2,999.00
$3,099.00 $2,999.00
Sale Sold out
Shipping calculated at checkout.
Color
The Plus Version Of Grandtan M-340

Three Wheels, Endless Fun. Grandtan Plus makes your ride easier and opens up more opportunities for your life.

Upgraded 750W Rear Motor

Grandtan Plus has an upgraded rear motor for a more stable and balanced ride uphill and faster acceleration.

Max Motor Torque: 90 Nm

Peak Motor Watts: 1,400W

Enhancing Stability & Cornering

The new rear differential allows the rear wheels to rotate at different speeds, which improves the balance and stability of the trike, making it safer and more comfortable to drive at high speeds or turning.

48V*20Ah UL Certified Battery

A rechargeable and removable 960Ah Samsung cell battery will give you enough juice for long-range riding. UL lab testing reduces your fire risk by at least 90% through its rigorous, complex, and comprehensive procedures.

Charging Time: 8-10 hrs

In Accordance with UL-2271

Parking Brake System

The parking brake keeps your electric trike firmly in place, whether you need a break, a quick stop, or a stable park on a slope. It adds extra safety and security to your ride.

Technical Specs

Motor
48V*750W Rear-Mounted Brushless Motor: 90 Nm Torque; 1400 Watts Peak Power
Battery
Addmotor EB 2.0 48V*20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells | Charging Time: 8-10 Hrs; Rated For 1,000-1,500 Charge Cycles
Display
Addmotor EB 2.0 LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Latest EB 2.0 front light and 5-in-1 taillight
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Torque Sensor
Charger
48V*2A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Range
85+ Miles Per Charge with PAS 1(Estimated)

Components

Frame
6061 Aluminum Alloy Frame
Front Fork
Oil Spring Fork with 80mm of Travel
Brake
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm Front / 2*180mm Rear
Stem
Aluminum 100mm + Adjustable Angle(90°)
Tires
26" X 4.0" Front & 24" X 4.0" Rear Fat Tires
Grips
Durable Ergonomic Design
Handlebar
Black Aluminum, 630mm Wide, Sweep Back
Seat Post
Aluminum 270mm x 31.6mm
Saddle
Addmotor Exclusive Well-Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Rims
Aluminum Double Wall, 36H
Spokes
Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals
Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Fenders
Aluminum, Front and Rear Fenders Included
Basket
Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset
Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel
SHIMANO SIS Index 7-Speed, 14-32T
Chain
KMC Rust Resistant Chain

Measurements

Suits riders in the height range of 5'5"- 6'5"

Max load capacity is 450 lbs

-Total Length 78"

-Total Width 33.5"

-Wheelbase 50"

-Maximum handlebar Height 49"

-Minimum handlebar Height 43"

-Standover Height 18.7"

-Seat Tube 18"

-Minimum Seat Height 33.5"

-Maximum Seat Height 40"

-Reach 18"

-Rear Basket 48L, 17.7" x 21" x 10"

-Battery 9.5LBS/4.3KG

-Bike Weight (excluding battery) 108LBS/49KG
