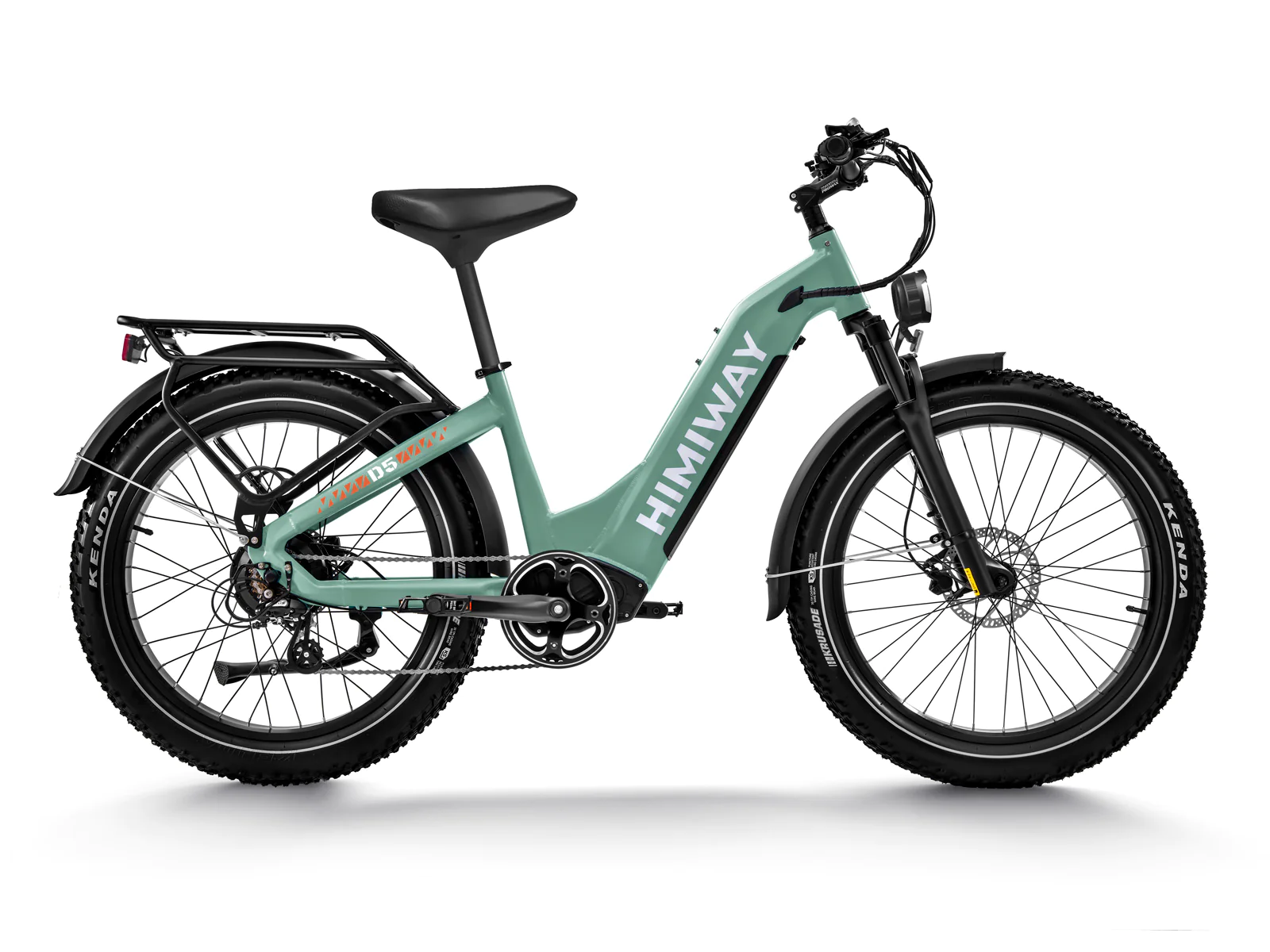

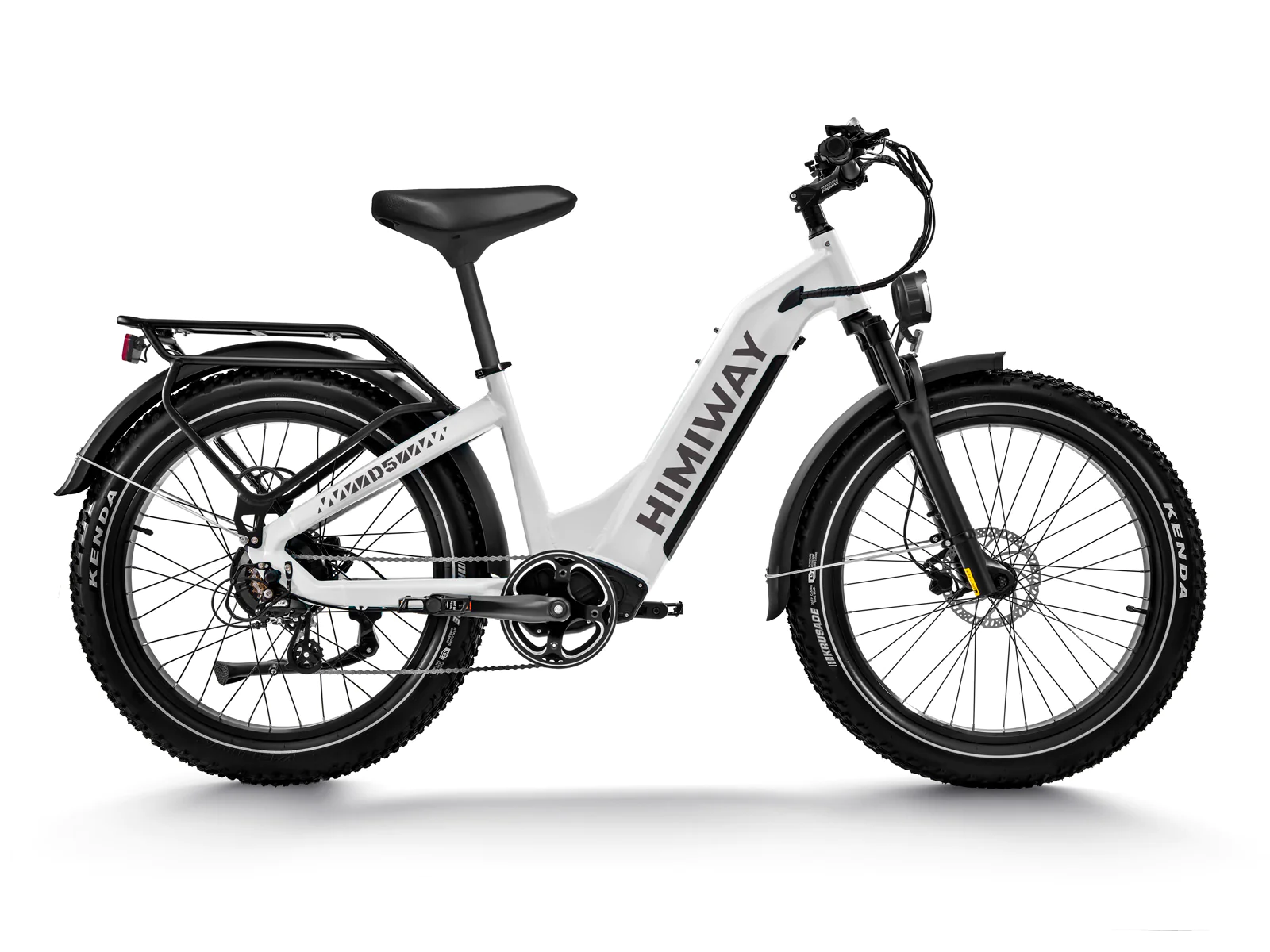

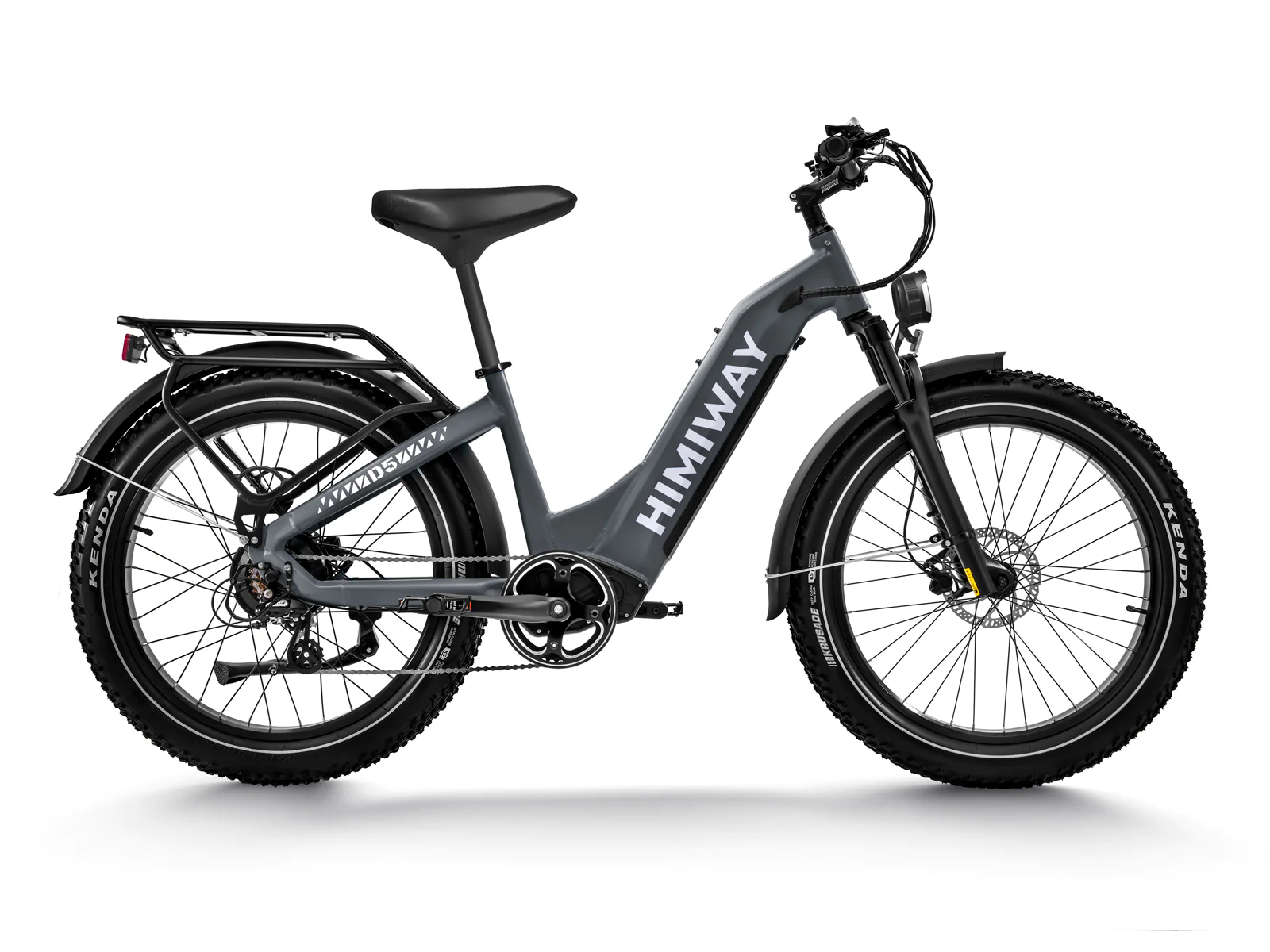

Himiway - D5 Step Through
Himiway - D5 Step Through
Regular price
$1,799.00
Regular price
Sale price
$1,799.00
Unit price
per
Premium All-terrain Electric Fat Bike D5
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5. Go Further Than Ever!
Specs
-
Frame6061 Aluminum frame
-
HeadsetNeco H156EM 28.6*44-56*30
-
ForkTRAMA 26"FAT34-26-HLO 95mm travel 9*135mm quick release
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheelRim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 214L stainless (304M) | Hub: 48v 750w Himiway hub motor
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 20Ah
-
Motor (hub)750W brushless gear motor
-
DisplayLCD display with Type-c charger
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Front brakeTektro HD-E3520 hydraulic brake
Components
-
StemPromax MA-400 28.6*90*10D*41H
-
HandlebarPromax HB-3188 22.2*31.8*700mm
-
SeatpostHimiway Seatpost
-
SaddleHimiway Saddle
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Dimensions
Recommended Height: 5'3" ~ 6'5"
-
– total length 78.7"
-
– handlebar height 47"
-
– handlebar length 28"
-
– wheelbase 49.2"
-
– wheel diameter 28.7"
-
– minimum seat height 20.9"
-
– maximum seat height 31.4"
-
– chain stay length 19"
-
– frame stack 24.6"
-
– frame reach 17.8"
-
– effective top tube length 24.4"
-
– head tube length 5.5"
-
– head angle 65°
-
– standover height ST 22.4"/ SO 31.1"
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5′3″ ~ 6′5″
-
Weight79 lb. (with battery)
-
Max. system weight400 lb.
