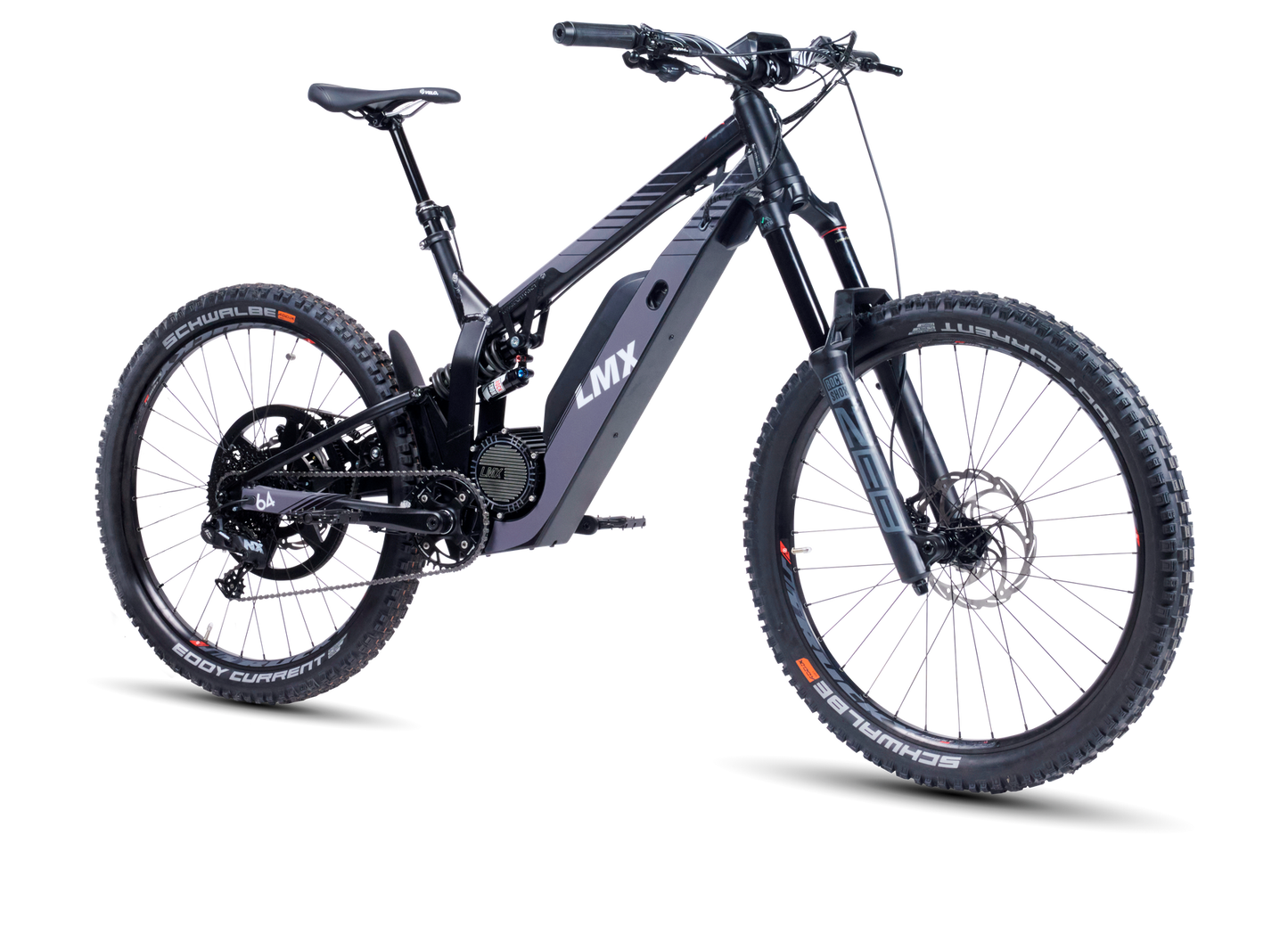

• A black LMX - 64 with electric motor assist, featuring thick off-road tires and a robust frame. Powered by a brushless mid-mounted motor for smooth pedal assistance, the bike is branded with "LMX" on the frame. Available exclusively at Tampa Bay eBikes.

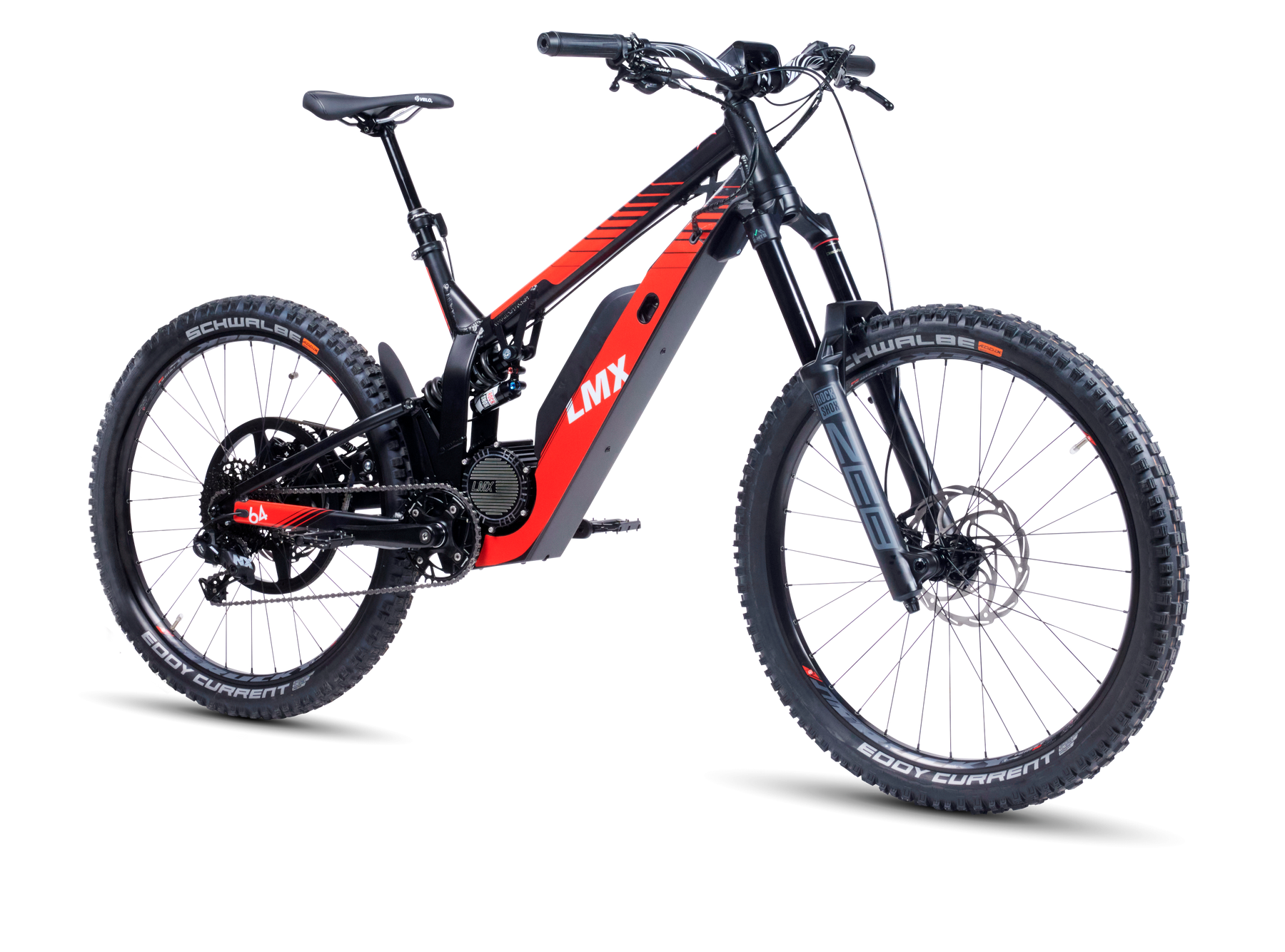

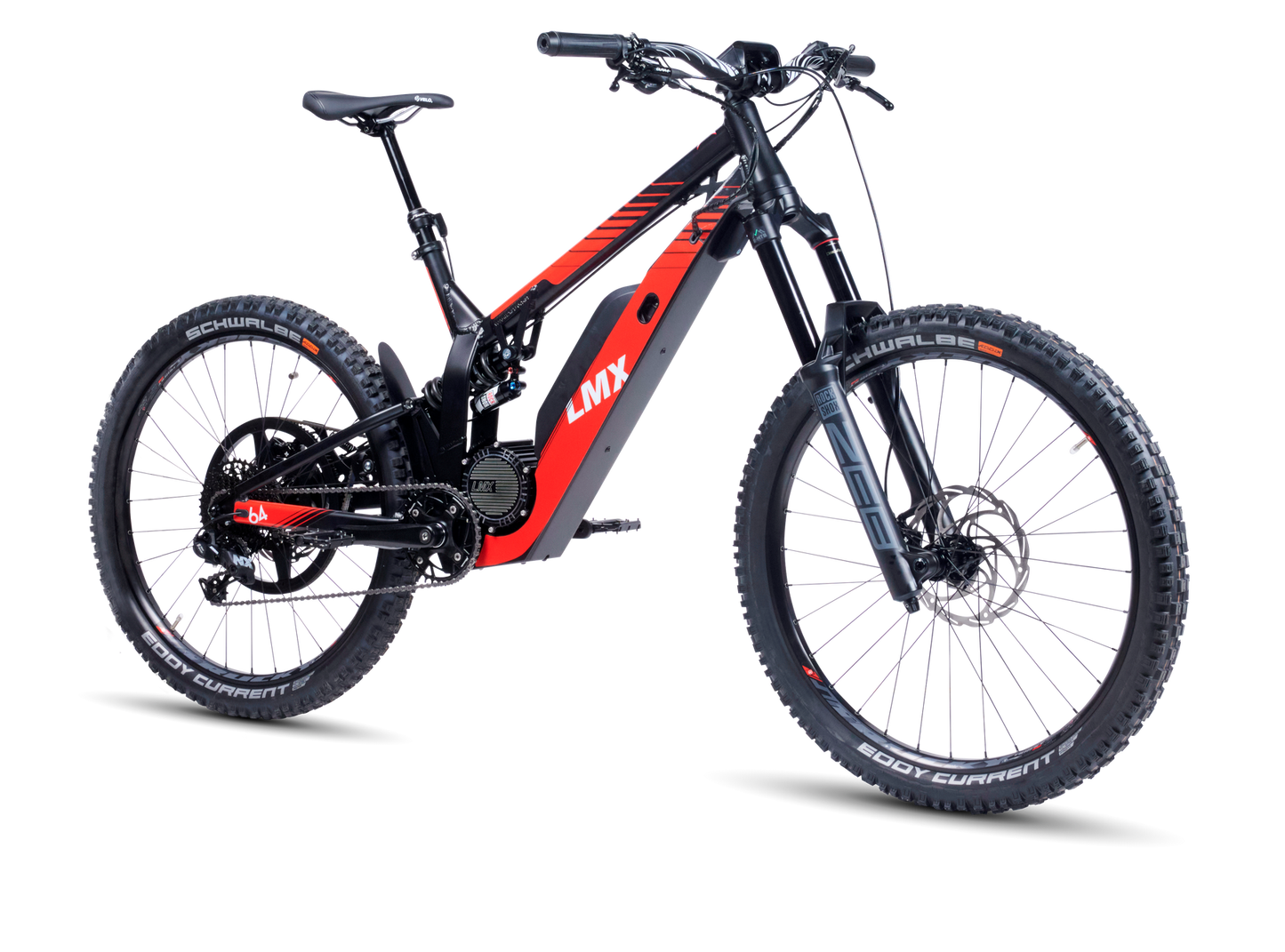

  • A black and red LMX - 64 mountain bike from LMX features a brushless mid-mounted motor, thick tires, a sturdy frame, and visible "LMX" branding on the battery compartment. It also includes pedal assistance for an enhanced riding experience.

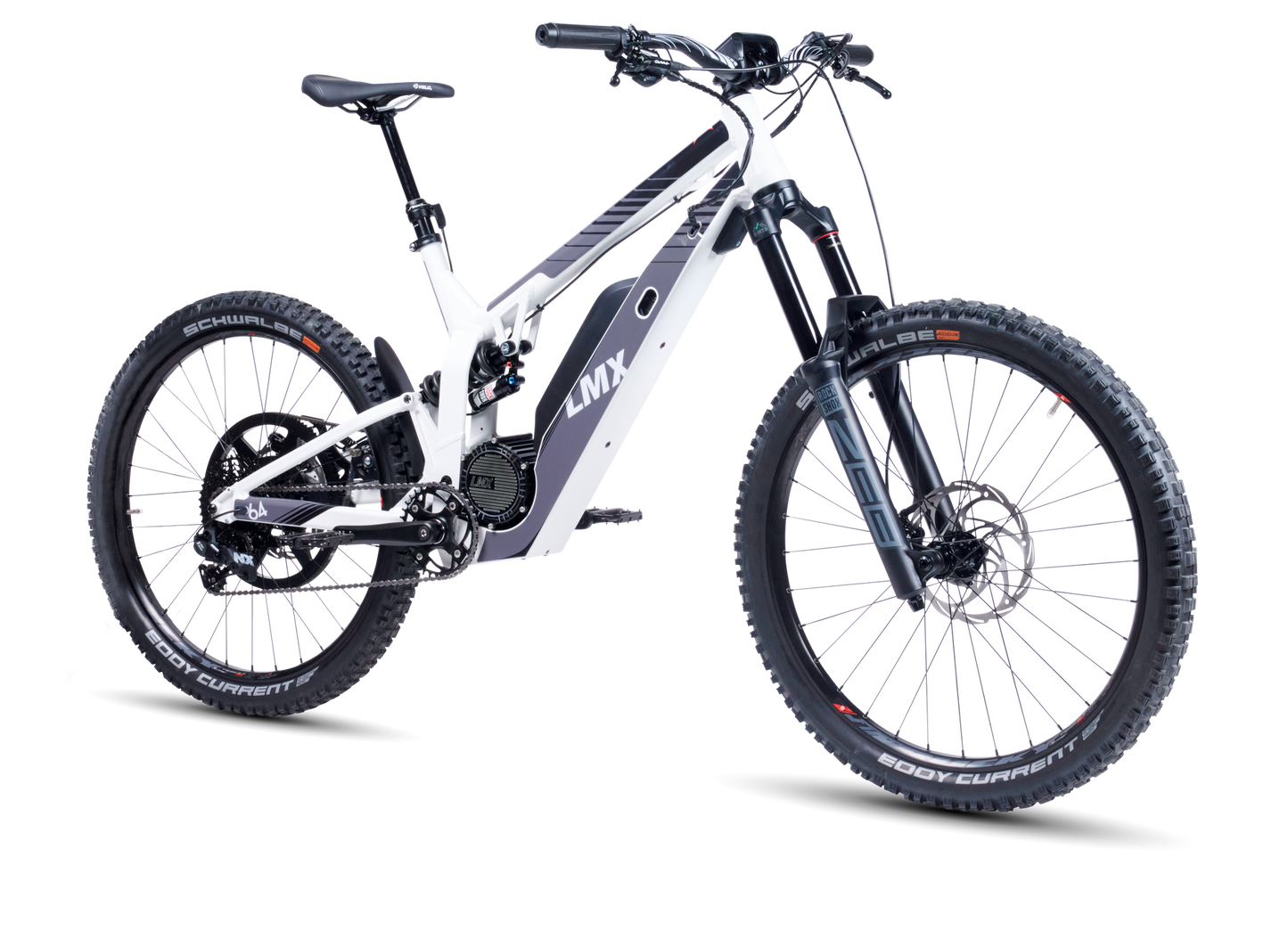

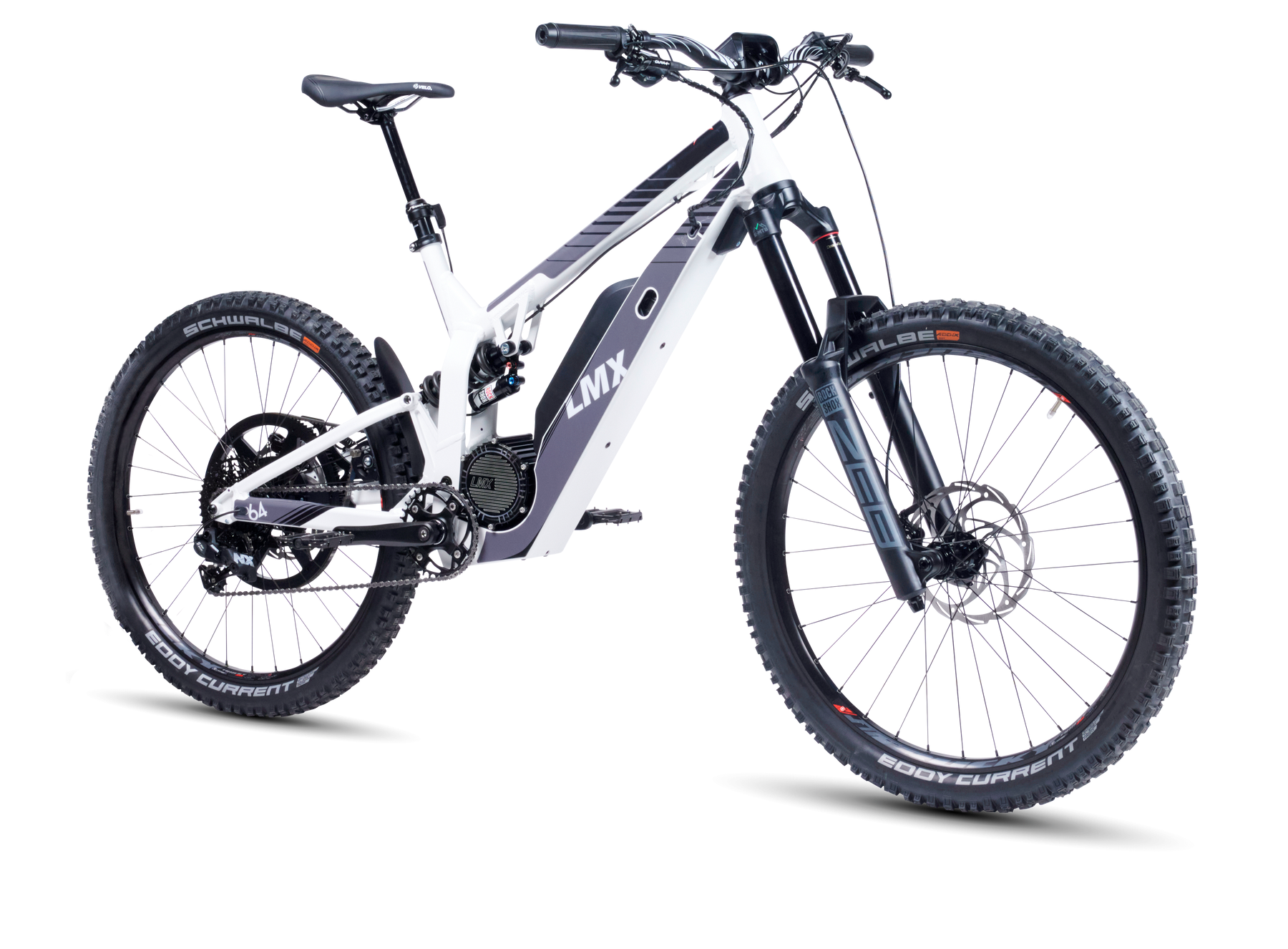

  • A white and black electric mountain bike with wide tires, disc brakes, and a suspension fork, featuring a brushless mid-mounted motor for smooth pedal assistance, viewed at a slight angle from the side. The LMX - 64 by LMX is available now at Tampa Bay eBikes.

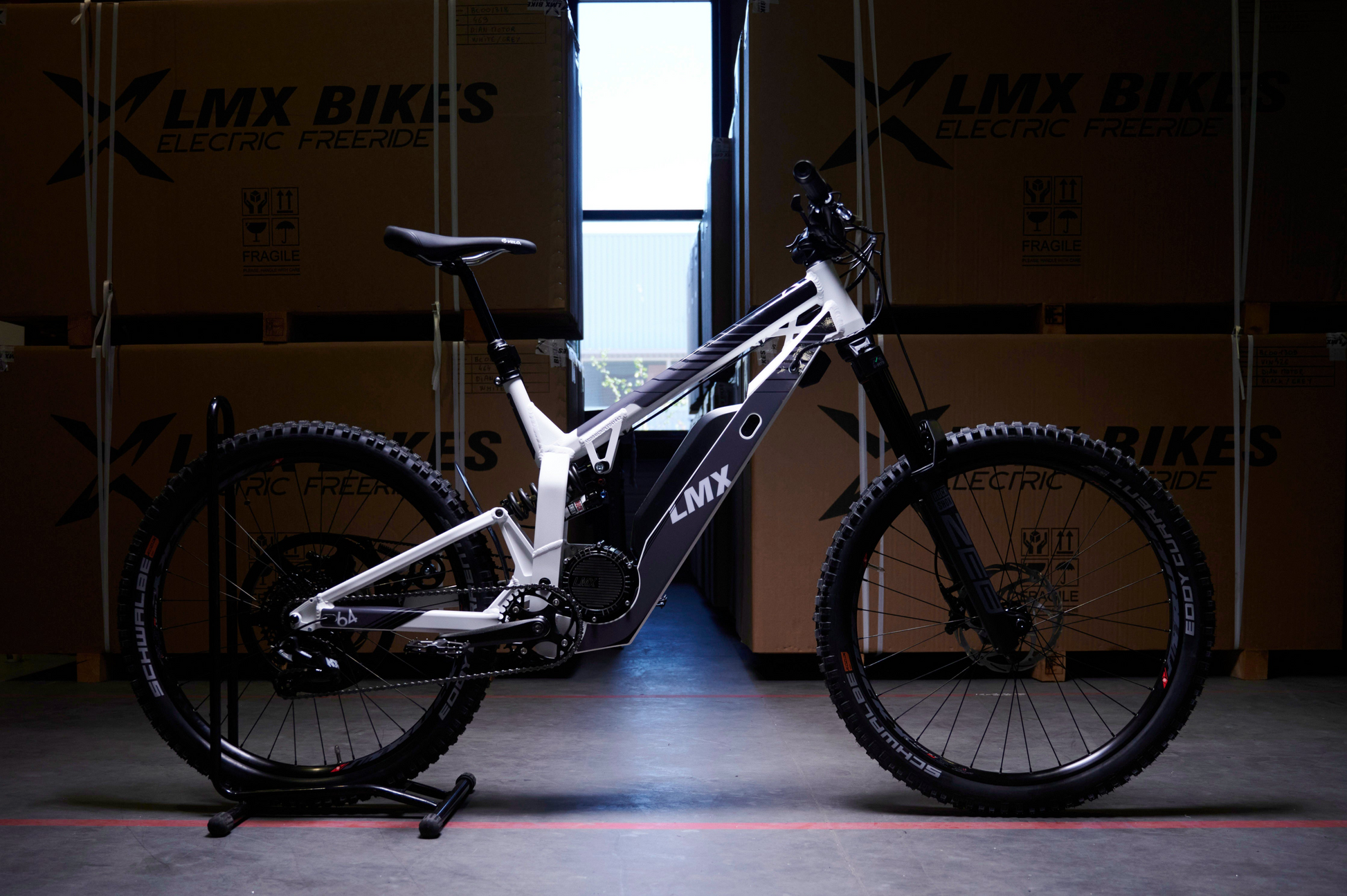

  • An LMX - 64 electric mountain bike featuring a mid-mount motor in black and white is showcased in a warehouse, surrounded by large boxes branded "LMX Bikes Electric Freeride.

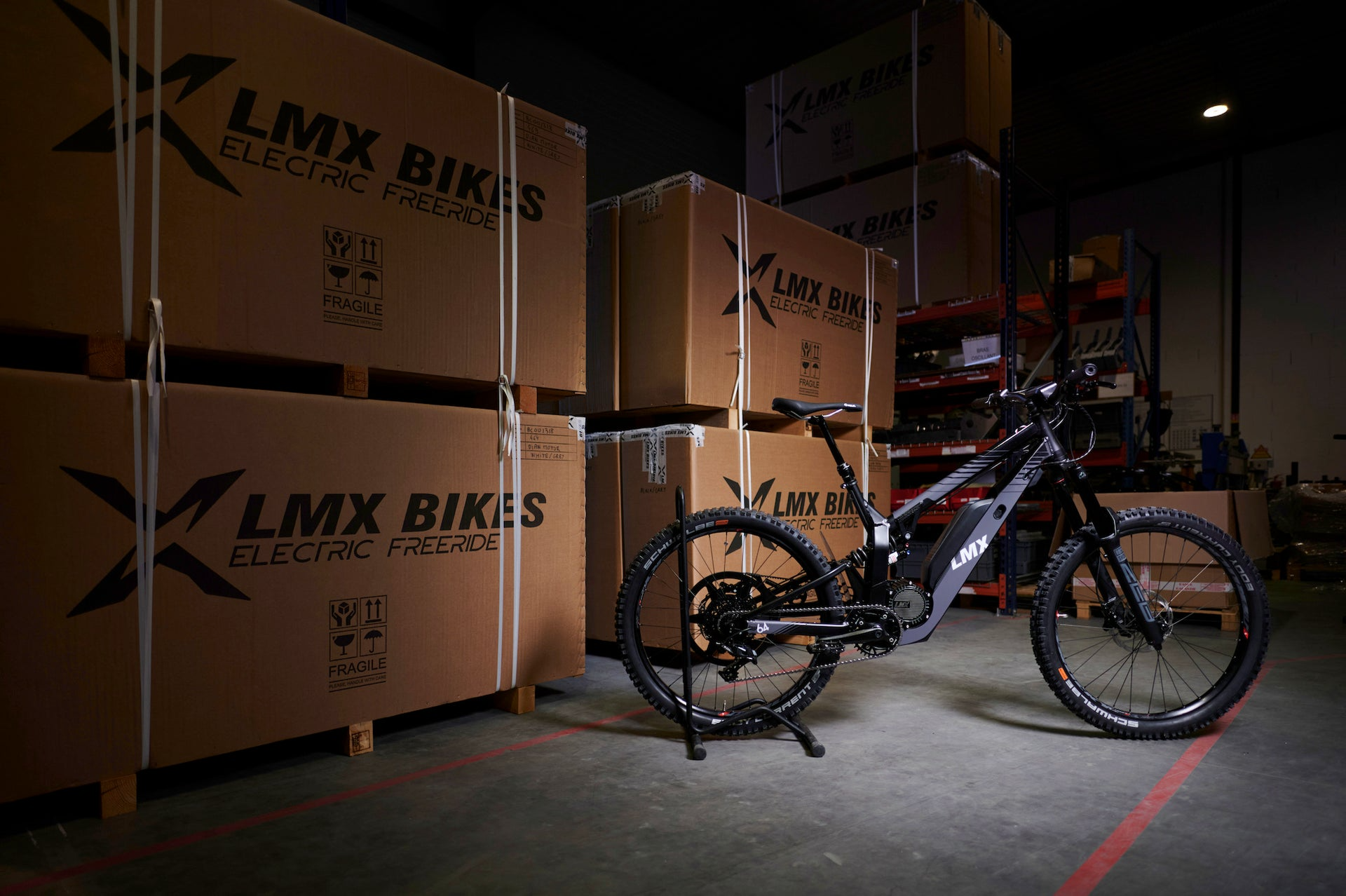

  • A black electric mountain bike with a brushless mid-mounted motor stands in a dimly lit warehouse, positioned in front of large cardboard boxes labeled "LMX - 64 Electric Freeride.

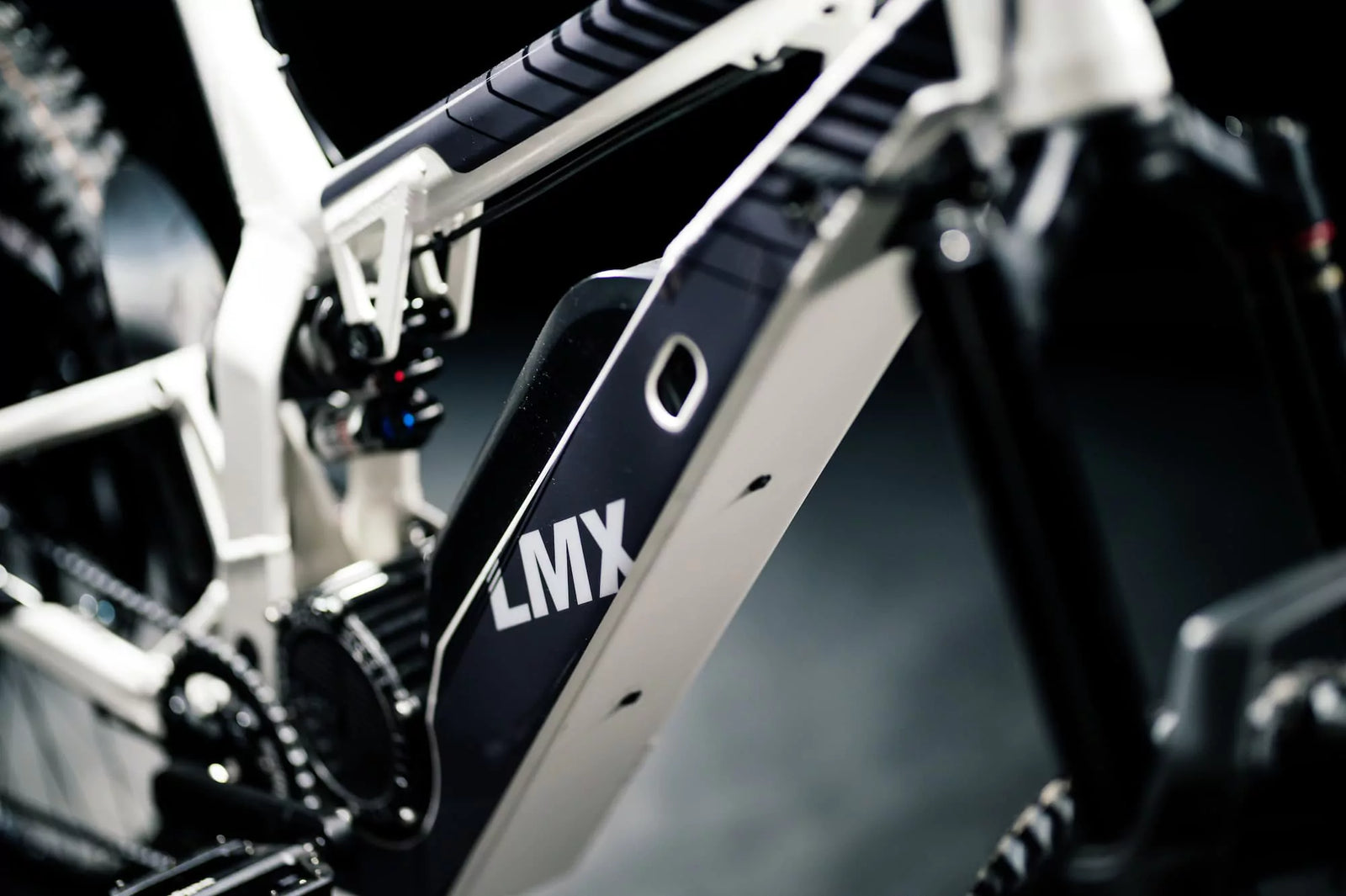

  • Close-up of a white LMX - 64 electric mountain bike frame, showcasing the central battery compartment, parts of the suspension system, and a robust brushless mid-mounted motor.

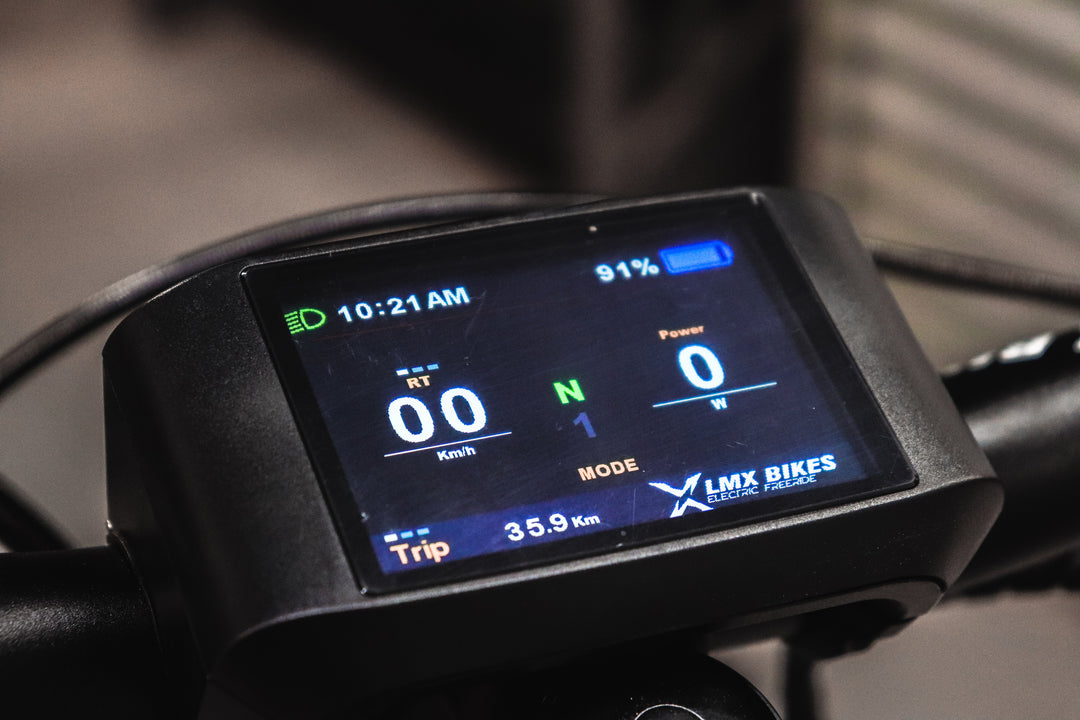

  • Close-up of an electric bike's digital display showing the time 10:21 AM, speed 0 km/h, power output 0, battery 91%, and trip distance 35.9 km. The display, from Tampa Bay eBikes, has the brand "LMX" at the bottom and a brushless mid-mounted motor providing smooth pedal assistance. The product is the LMX - 64 electric bike.

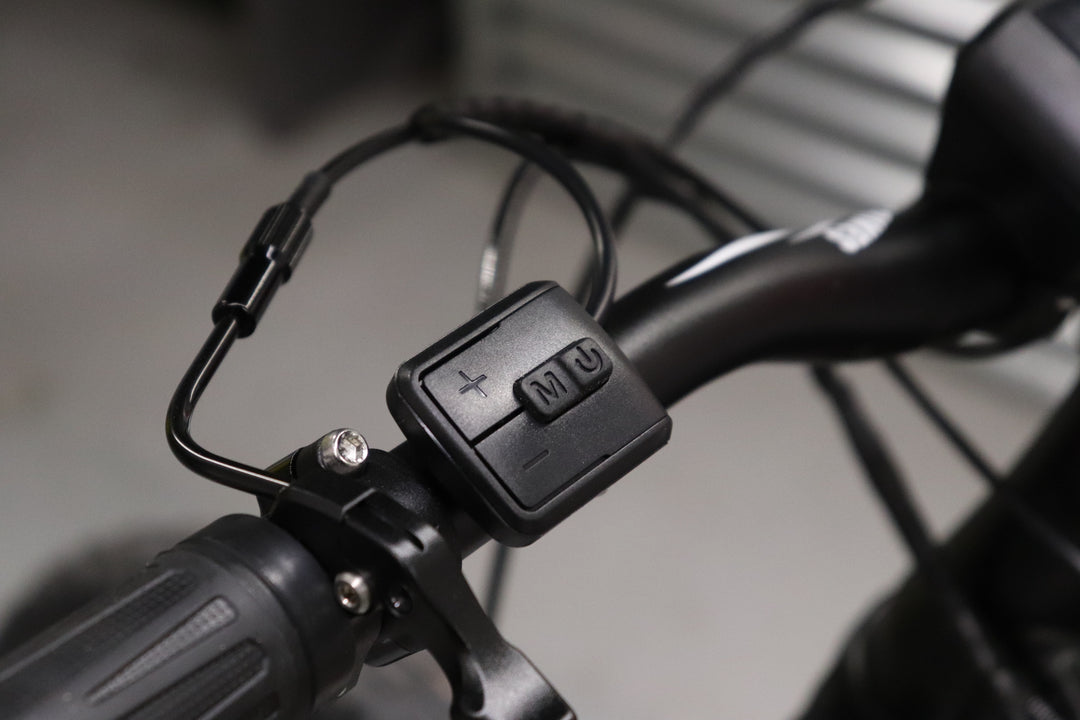

  • Close-up of a bicycle handlebar showing control buttons for pedal assistance. The buttons are labeled with plus, minus, and a middle button marked with an "M." This setup is often found on LMX - 64 by LMX featuring a brushless mid-mounted motor.

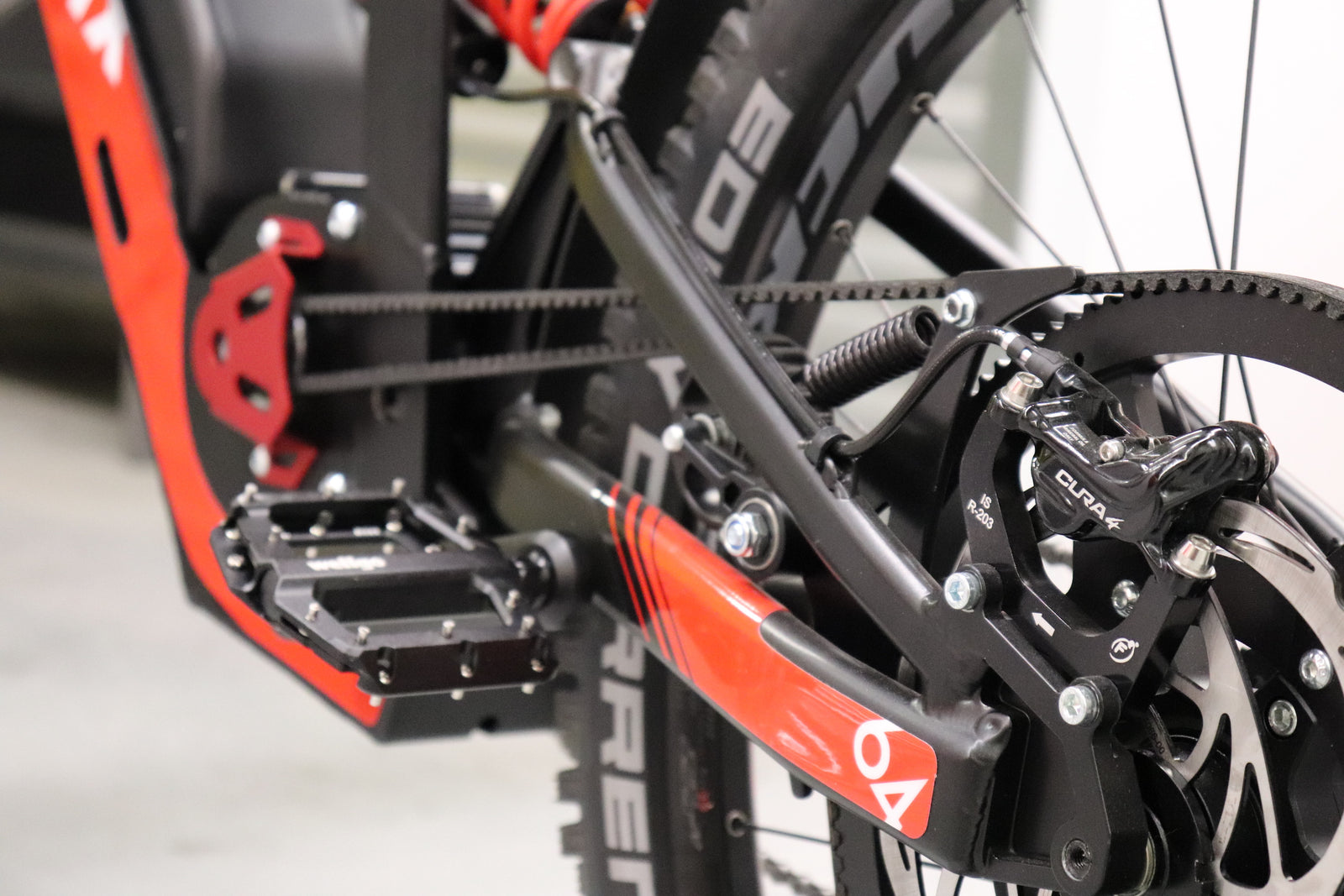

  • Close-up image of a bicycle drivetrain featuring a belt drive, rear derailleur, and pedals with a black and red color scheme from LMX, highlighting the brushless mid-mounted motor for optimal pedal assistance on the LMX - 64.

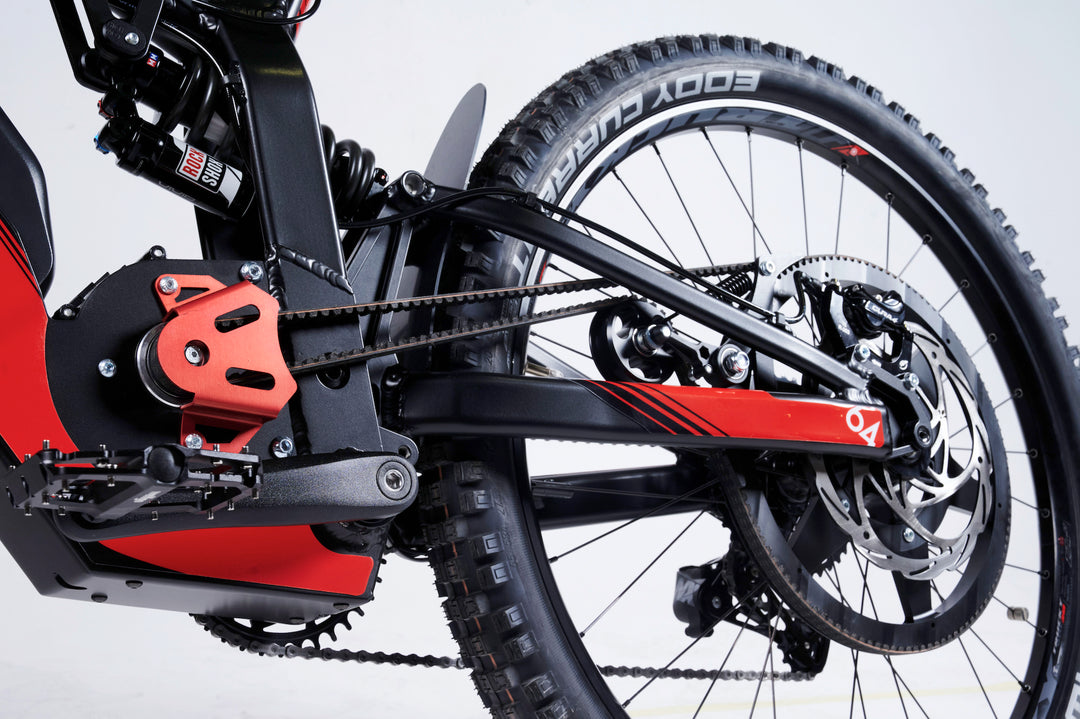

  • Close-up of a high-tech mountain bike's rear wheel and suspension system, featuring a belt drive, disc brakes, and shock absorber against a plain white background. The setup is enhanced by LMX's LMX - 64 brushless mid-mounted motor for reliable pedal assistance.
  • A person wearing protective gear performs a wheelie on an LMX - 64 mountain bike equipped with pedal assistance in a blurred outdoor setting with vibrant yellow flowers and greenery in the background.
  • A person wearing a helmet rides an LMX - 64 with pedal assistance up a rocky, sunlit trail in a dense forest, with rays of sunlight filtering through the trees.
  • A person on an LMX - 64 with pedal assistance is performing a high jump among tall trees with sunlight filtering through the foliage.
  • A cyclist in protective gear and helmet rides a mountain bike with pedal assistance down a steep, forested trail on a sunny day. With the advanced brushless mid-mounted motor from LMX - 64 by LMX, navigating the rugged terrain becomes an exhilarating experience.

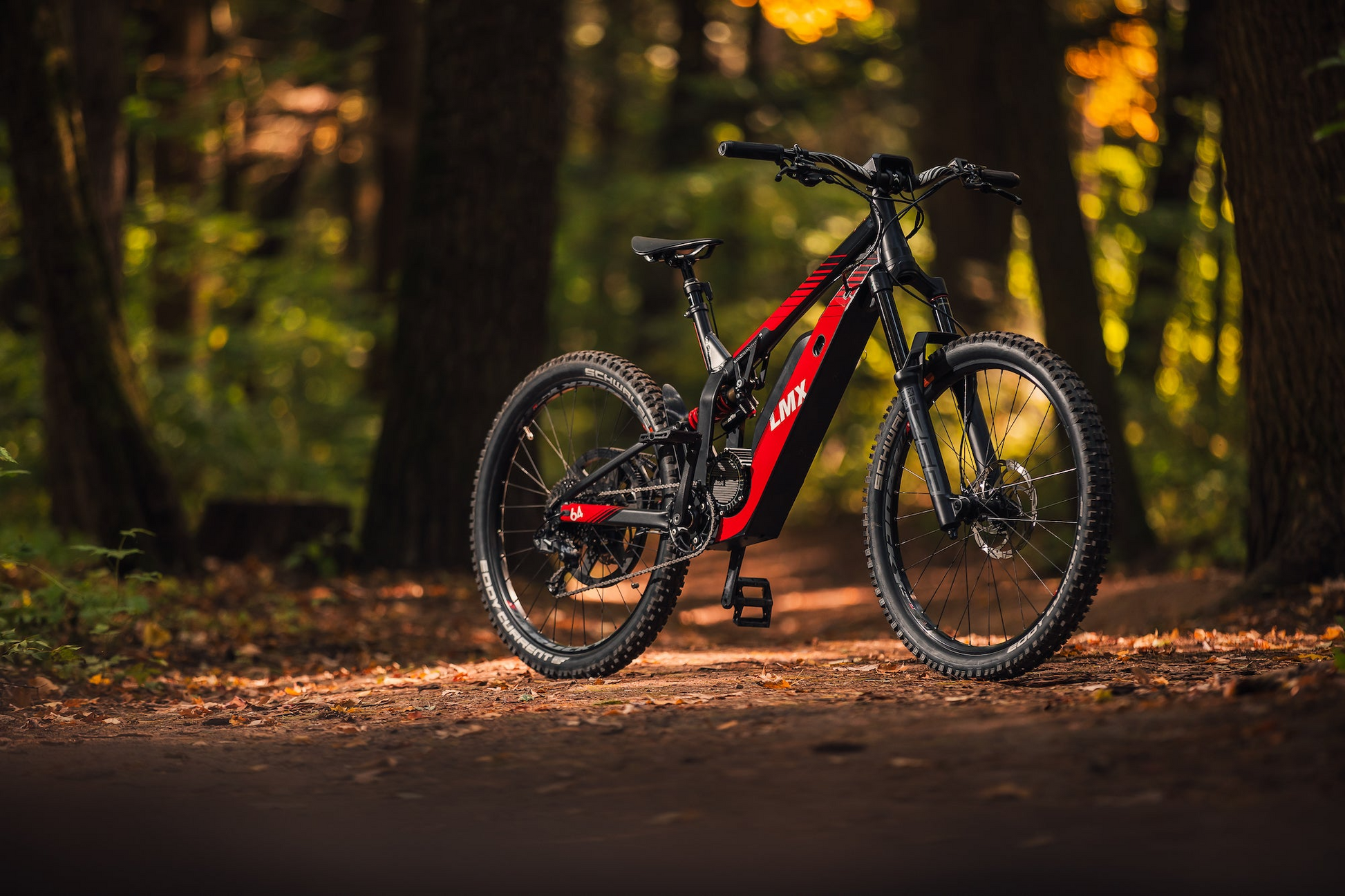

  • A red and black LMX - 64 electric mountain bike with a brushless mid-mounted motor is parked on a dirt trail in a forest, sunlight filtering through the trees. With pedal assistance from LMX, this ride promises both power and efficiency for any adventure.
  • A mountain biker wearing a helmet and protective gear rides an LMX - 64 with LMX branding, kicking up dirt as they navigate a woodland trail.
  • A person wearing protective gear rides a red mountain bike with pedal assistance through a dusty trail under a bridge, showcasing the capabilities of the LMX - 64 from LMX.
  • A person wearing a helmet rides an LMX - 64 mountain bike with pedal assistance on a dirt trail through a dense, sunlit forest.
  • A person in a helmet and protective gear rides an LMX - 64 equipped with a brushless mid-mounted motor on a path with a backdrop of misty mountains at sunrise or sunset.

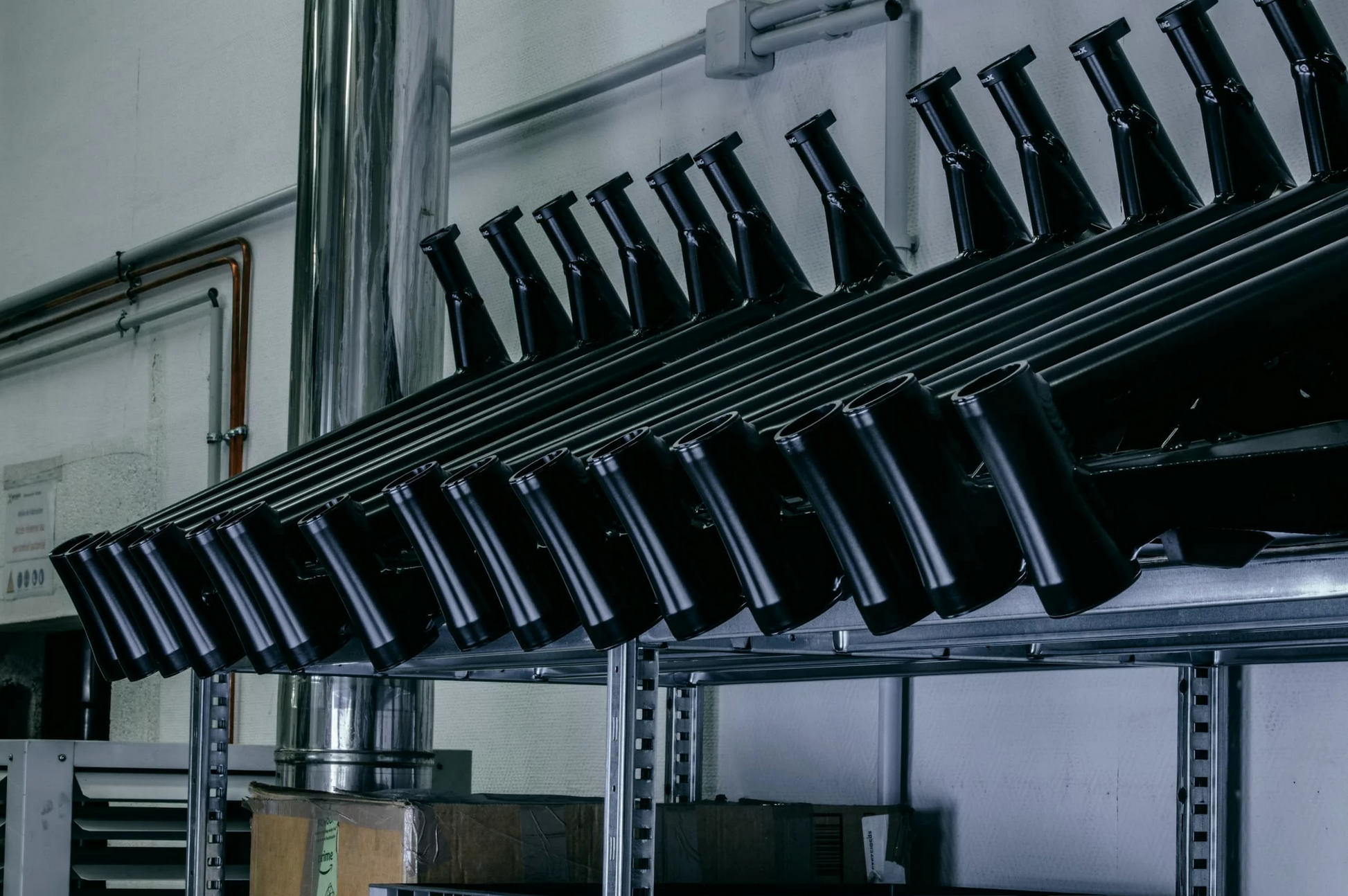

  • Several black metal pipes are arranged in an angled rack on a shelf within an industrial setting, much like the precision organization you'd find at LMX, where every part of the LMX - 64, from pedal assistance to brushless mid-mounted motors, has its place.
1 19

LMX

LMX - 64

LMX - 64

$7,499.00
$7,499.00
Sale Sold out
Shipping calculated at checkout.
Color

LMX: NOW IN NORTH AMERICA

Available Now at Tampa Bay eBikes

Specifications of the LMX 64

General

  • Class: Class 2 (USA & Canada)
  • Motor: Brushless mid-mounted LMX (2,500W)
  • Power Output: 750W (USA), 500W (Canada), up to 2,500W for off-road use
  • Transmission: Patented dual transmission (chain & belt)
  • Assistance: Pedal assistance with handlebar throttle
  • Max Speed: 20 mph (32 km/h) on-road, up to 32 mph (50 km/h) off-road
  • Battery: Removable 52V, 850wH
  • Controller: Advanced Field-Oriented Control (FOC)

Chassis

  • Weight: 64 lbs (29 kg)
  • Frame: High-resistance 6061-T6 aluminum
  • Colors: Black/red, black/grey, white/grey
  • Suspension: RockShox ZEB fork, RockShox Vivid R2C rear shock
  • Suspension Travel: 180 mm front and rear
  • Steering Angle: 65° (adjustable with Flip Chip)
  • Seat Tube Angle: 76°
  • Reach: 500 mm (L size)
  • Wheels: Mach 1 Trucky 30, 27.5 inches
  • Tires: Schwalbe Eddy Current 2.6″
  • Flip Chip: Adjusts steering angle +/- 1° and bottom bracket height by 8 mm
  • Seatpost: Telescopic

Drivetrain

  • Cassette: SRAM 11-speed, 11-42T
  • Crankset: Engine side: Reinforced chain or belt
  • Cranks: 170 mm
  • Belt: Carbon-fiber reinforced
  • Pedals: Wellgo premium aluminum

Brakes

  • System: Formula Cura 4-e with four-piston calipers
  • Discs: 203 mm

Versatility and Power in Every Ride
Unleash your adventurous side with the LMX 64, a Class 2 ebike that redefines the boundaries between urban commuting and trail-blazing thrills. Equipped with a standard 750W motor, this ebike adheres to a 20 mph top speed limit, ensuring compliance with urban ebike regulations. But when the city fades into the horizon, transform your ride with its modifiable capacity to 2,500W and a breathtaking 30 mph for exhilarating off-road ventures.

Innovative Dual Transmission Technology
Experience the pinnacle of engineering with LMX’s exclusive dual freewheel transmission. This system ingeniously separates the pedal and motor drives, featuring a conventional pedal chain on the right and a robust motor-driven belt on the left. This innovative design dramatically reduces stress and wear on the chain, enhancing durability and performance.

Customizable Riding Modes
Tailor your ride with three distinct riding modes that cater to every desire. From leisurely cruises using pedal assistance to dynamic adventures utilizing the motorcycle-style handlebar-mounted throttle, the LMX 64 adapts to your every need. Navigate with ease and control, whether you're commuting or conquering rugged trails.

State-of-the-Art Battery Technology
The LMX 64 is powered by a removable 52V, 850wH battery, offering a remarkable 100 km range on pedal-assist mode and 35 km on throttle mode alone, ensuring that you can explore further with confidence. A full recharge takes just 5 hours, so you're quickly ready to hit the road—or trail—again.

Superior Construction and Durability
Hand-built in France near Lyon, the LMX 64 is a testament to exceptional craftsmanship. Constructed from aircraft-grade 6061-T6 aluminum and equipped with premium components like Rockshox suspension, this ebike guarantees both performance and durability in harsh off-road conditions.

High-Performance Suspension and Informative Display
Enjoy a smooth ride with top-tier Rockshox suspension that handles bumps and shocks effortlessly. Stay informed and in control with the intuitive color display screen, providing real-time data on speed, power output, battery level, and more.

Shop Now at Tampa Bay eBikes
Elevate your biking experience with the LMX 64. Secure yours today and redefine what's possible with ebikes. Your next adventure awaits!
