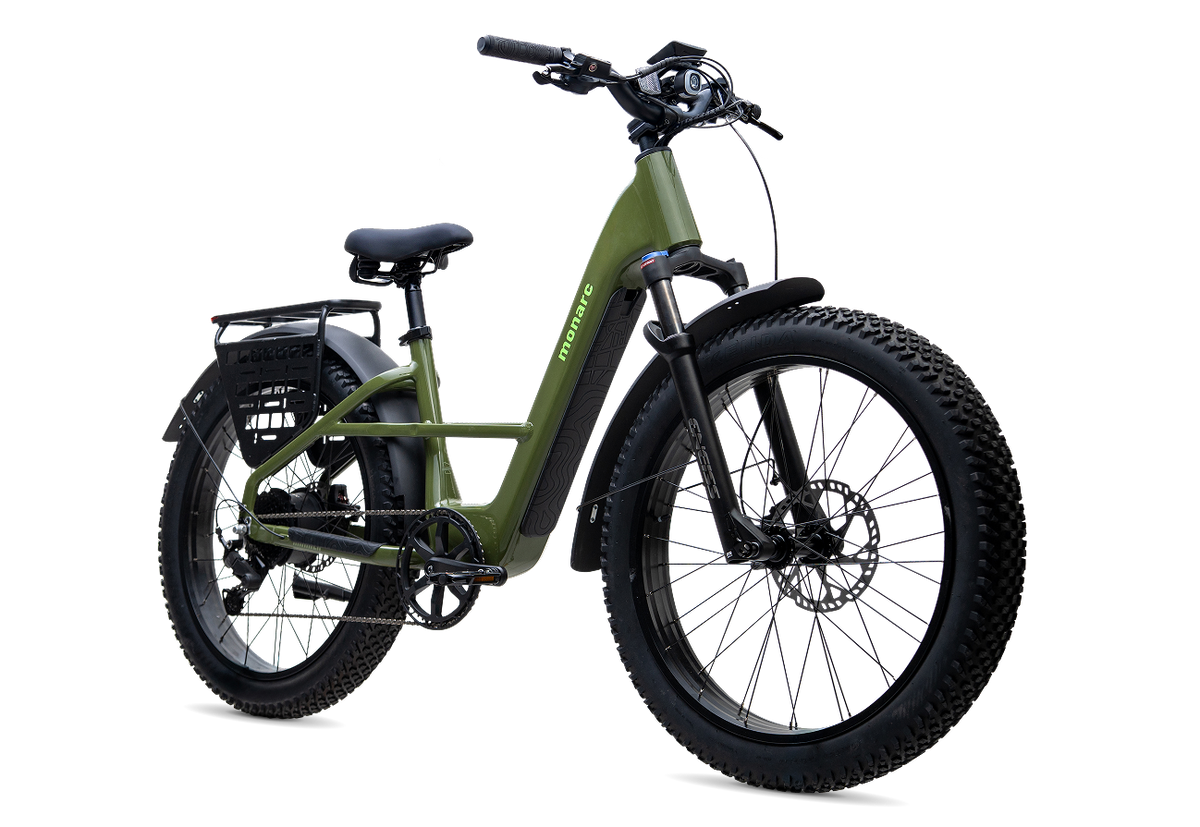

Monarc Marker Step-Thru

⚡ Monarc Marker Step-Thru Electric Bike

All-Terrain Versatility • Four-Piston Braking • Everyday Adventure

The Monarc Marker Step-Thru pairs wide all-terrain tires with an 80mm suspension fork for rides that combine daily transportation and outdoor exploring. Its step-through frame provides a lower 22.5-inch standover for easier mounting and dismounting.

Available at Tampa Bay eBikes, fully assembled and supported by local experts.

🏍️ Responsive Power for Everyday Riding

A 750W nominal Bafang B750 rear hub motor delivers up to 85Nm of torque. Choose torque-sensing or cadence-sensing pedal assistance, with torque sensing as the default, or use the left-side thumb throttle.

The bike ships in Class 2 mode and supports Class 1, 2, or 3 configuration. Monarc lists a maximum assisted speed of 28 MPH, depending on the selected class setting.

🔋 Reliable Range for Daily Riding

The removable 48V 15Ah (720Wh) lithium-ion battery uses LG cells. Monarc estimates up to 60 miles per battery, or up to 120 miles when using two batteries in succession. The supplied 5A charger takes approximately three hours to charge one battery from empty to full.

Actual range depends on assist level, rider and cargo weight, speed, terrain, tire pressure, and weather.

🛞 Confident Ride & Control

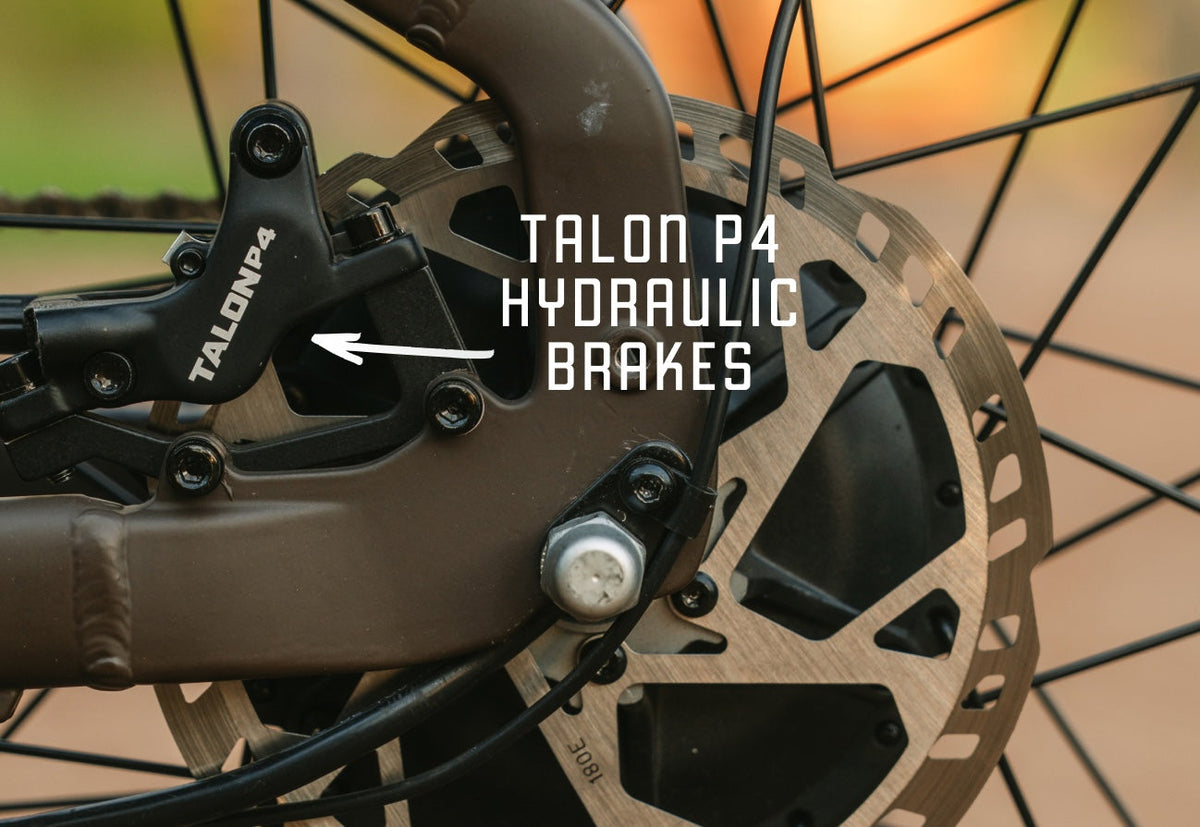

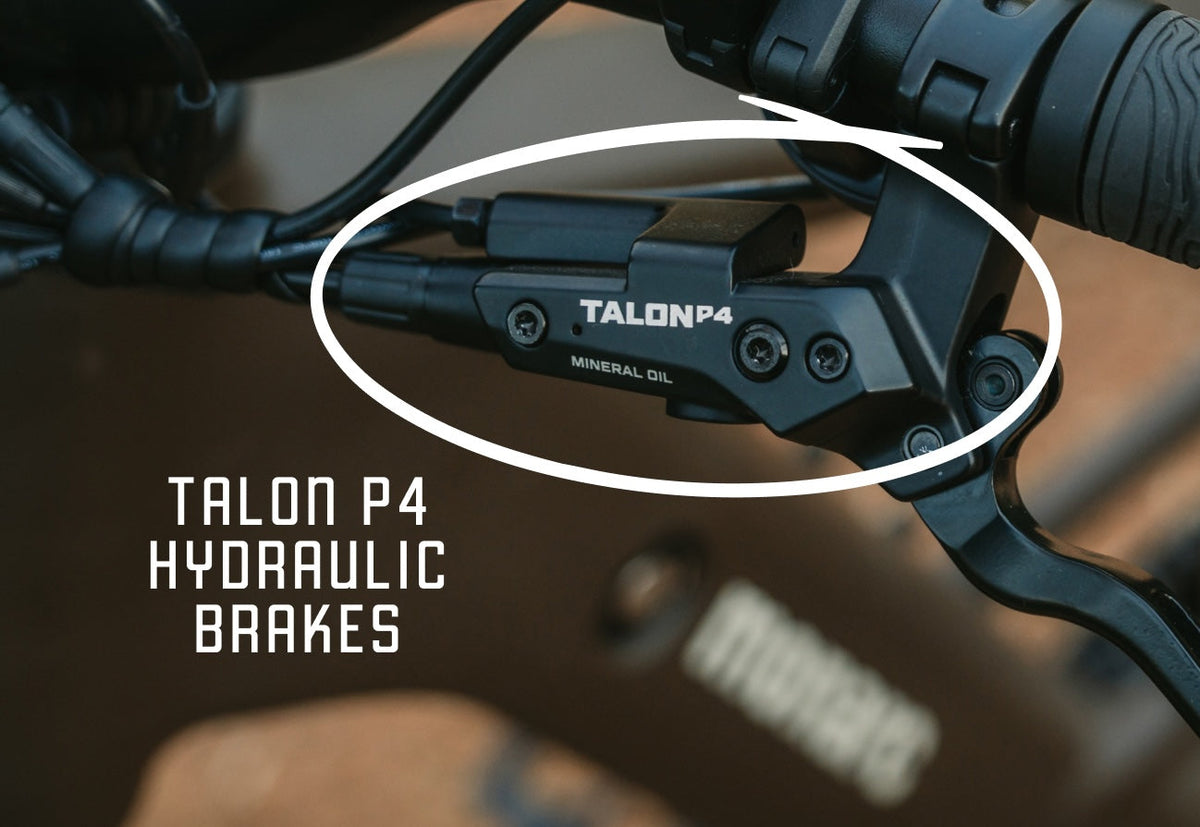

• Brakes: Star Union Talon P4 four-piston hydraulic disc brakes with a 203mm front rotor and 180mm rear rotor.

• Tires: 26 × 4-inch Kenda all-terrain tires.

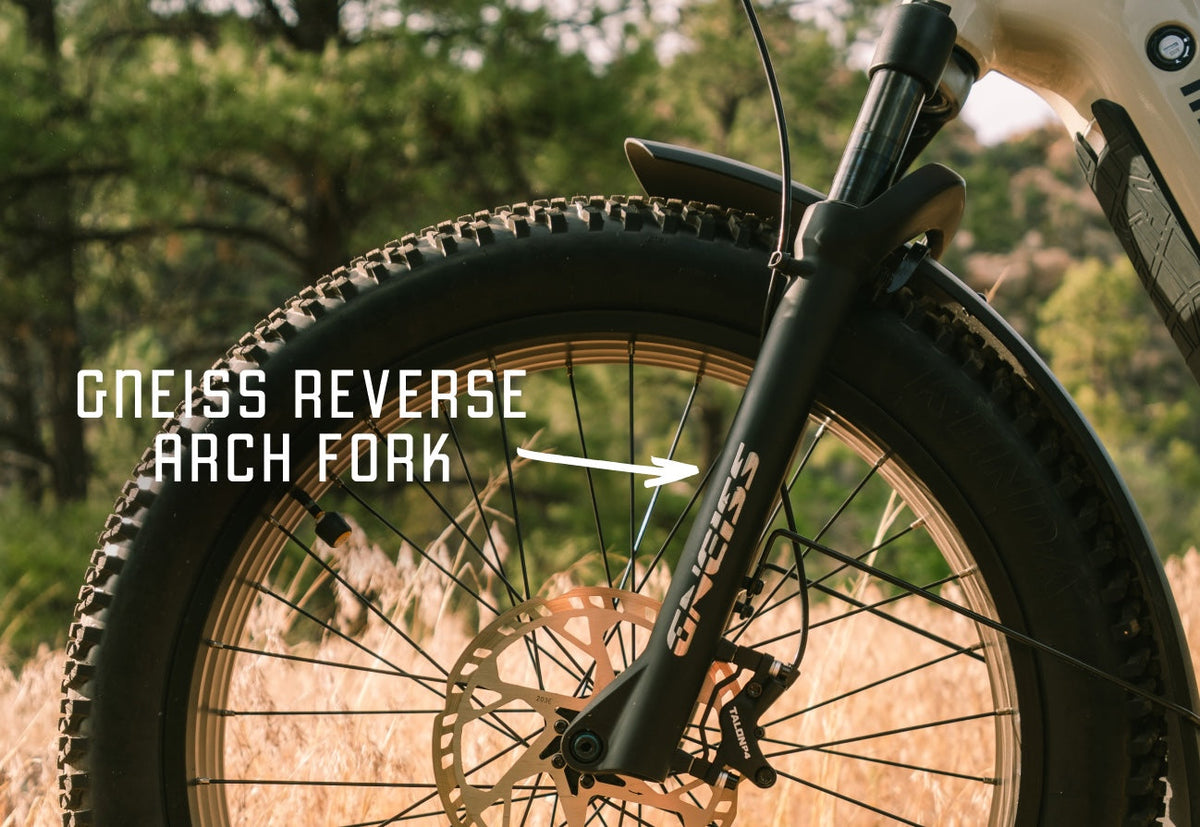

• Suspension: Gneiss reverse-arch fork with 80mm travel, lockout, and preload adjustment.

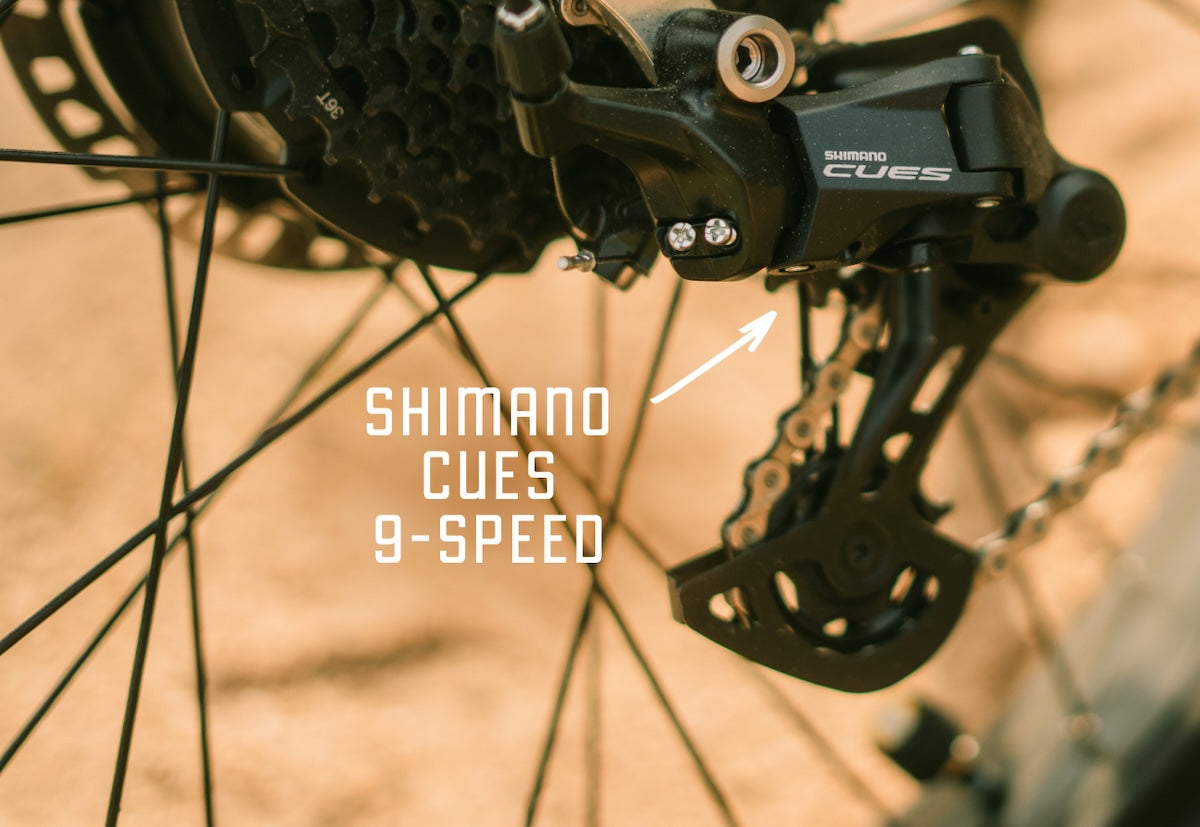

• Gearing: Shimano CUES nine-speed drivetrain with an 11–36T cassette.

• Fit: Recommended rider height 5′2″–6′3″; standover height 22.5 inches.

🎯 Built for Your Everyday Ride

Designed for commuting, park paths, and mixed-surface exploring, the Marker includes:

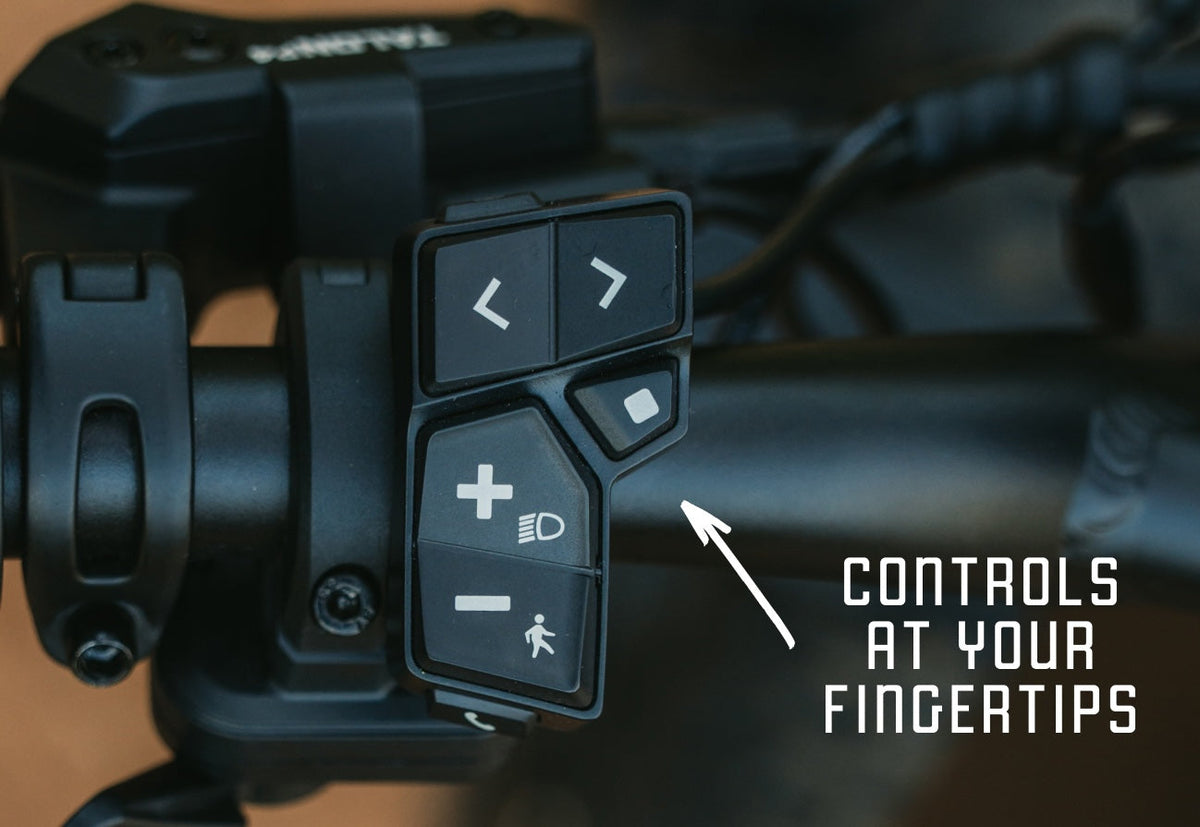

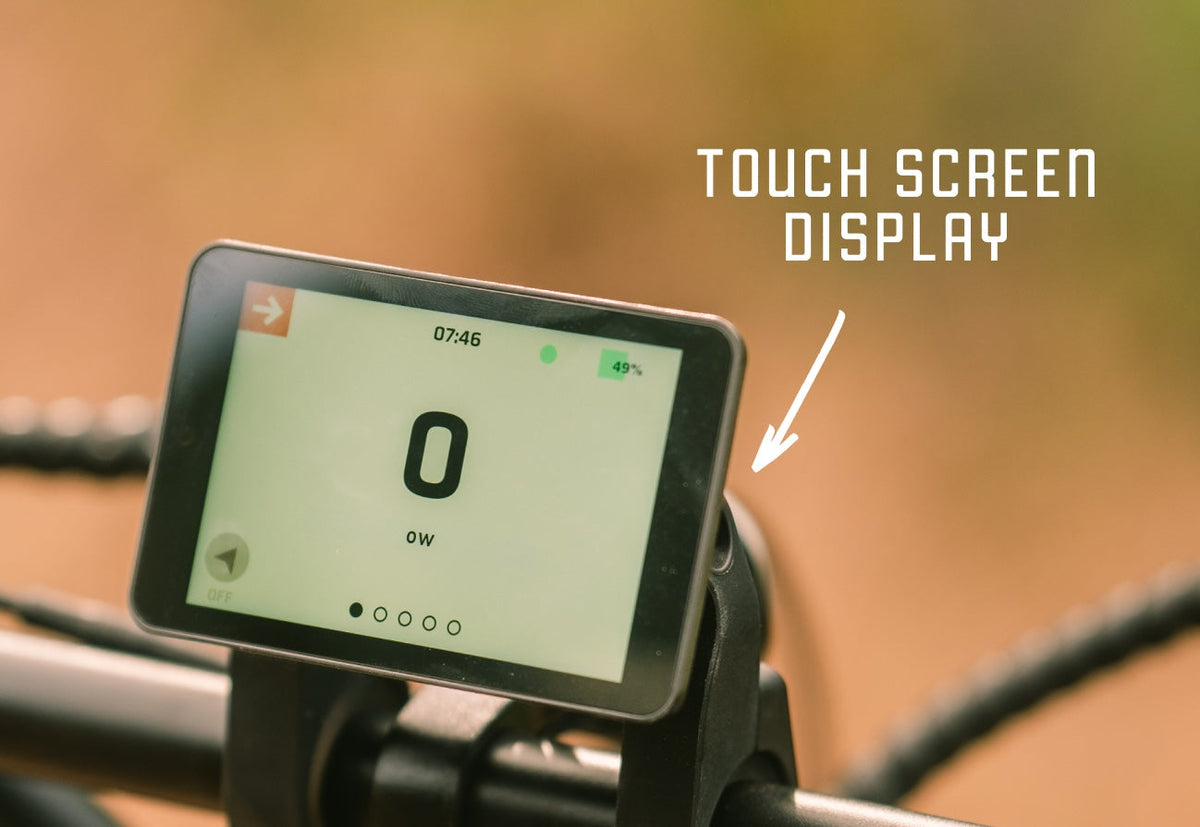

• A 3.5-inch Monarc TouchDisplay with app connectivity and USB charging.

• Five riding modes: Cruise, Breeze, Explore, Sport, and Boost.

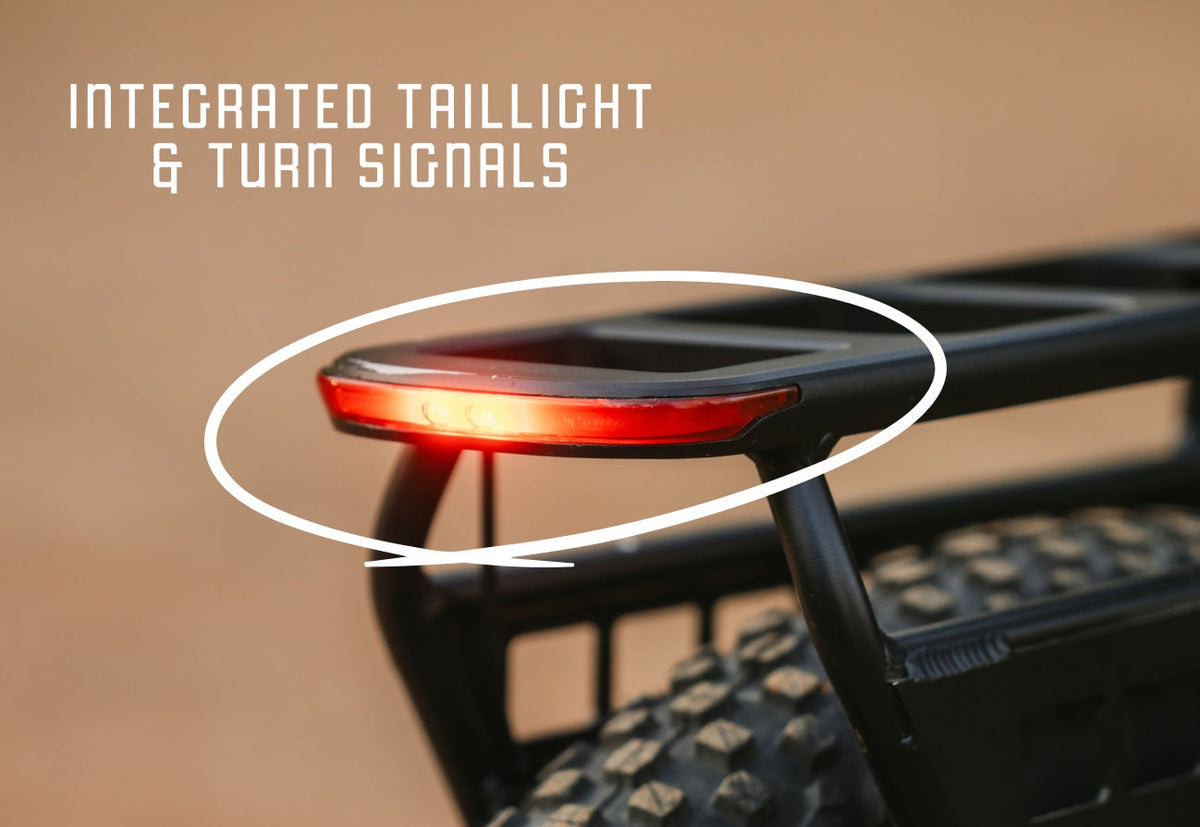

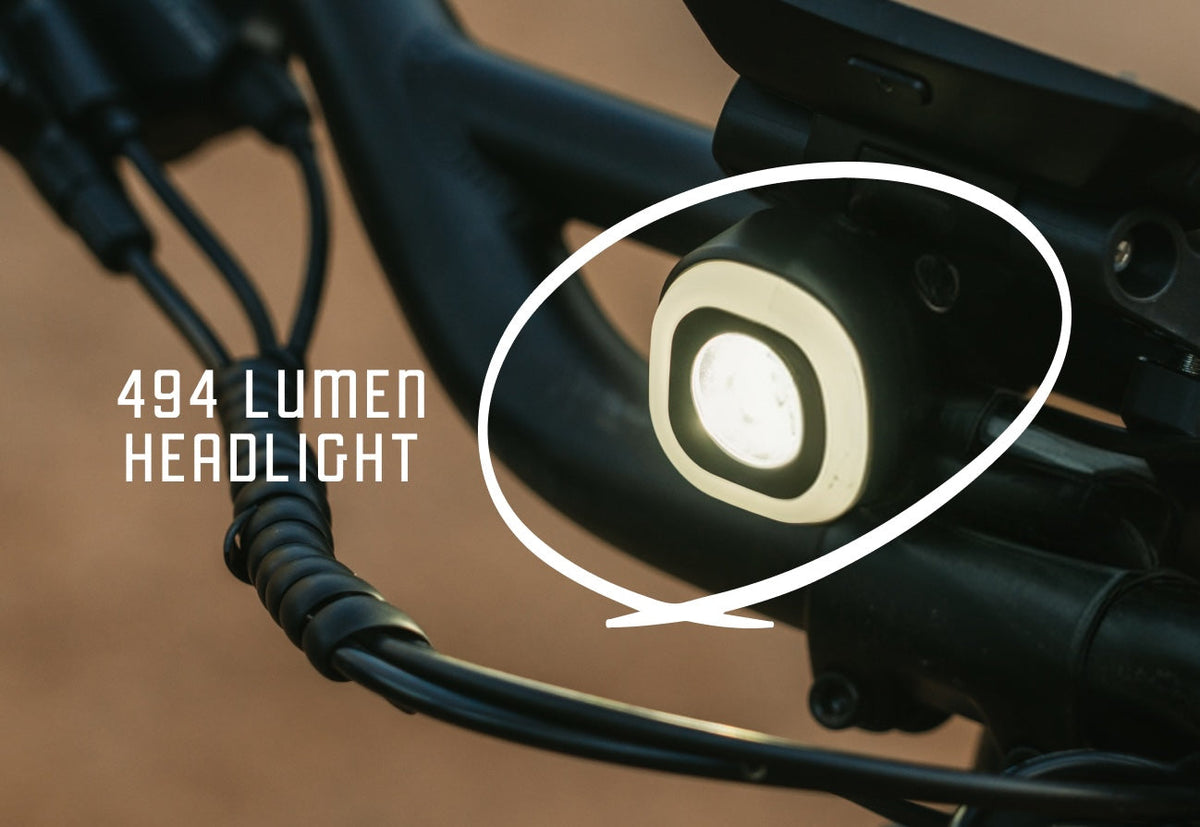

• An integrated 494-lumen headlight, plus a rear light with brake-light and turn-signal functions.

• Fenders and a rear rack rated for 66 lb (30 kg).

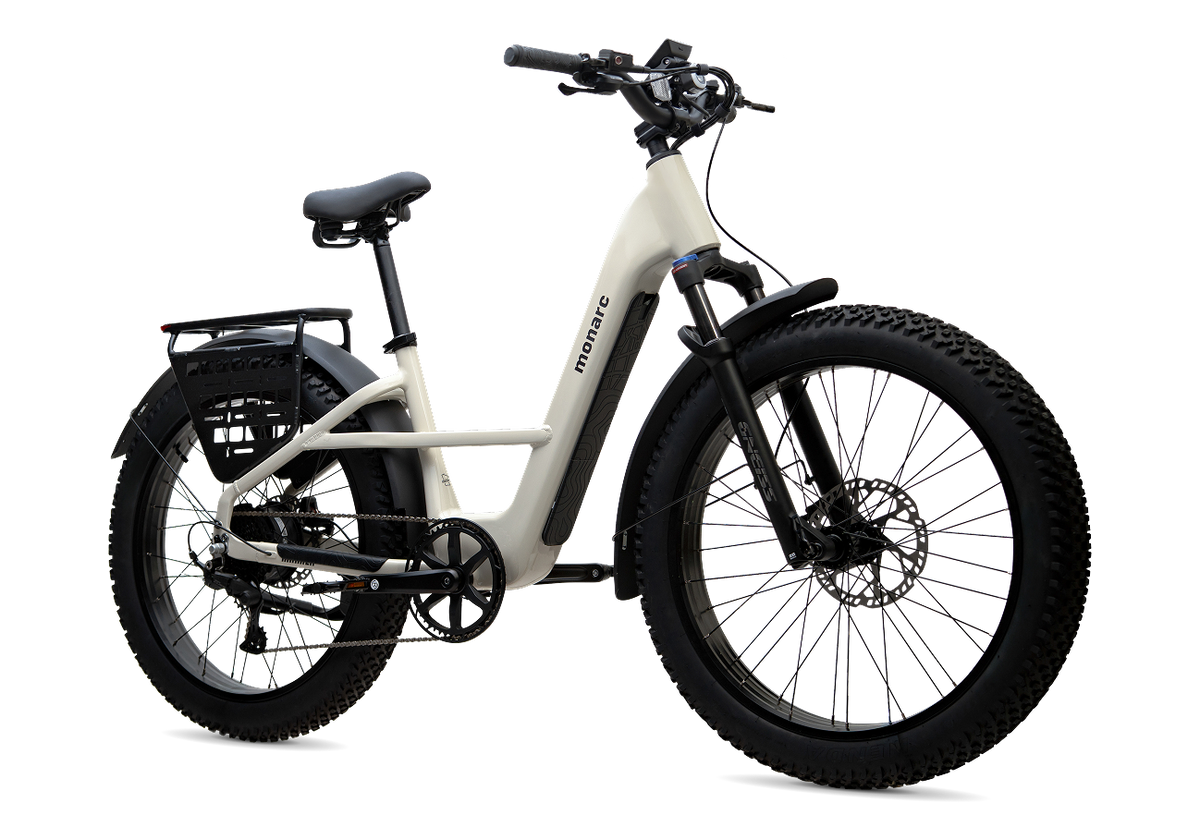

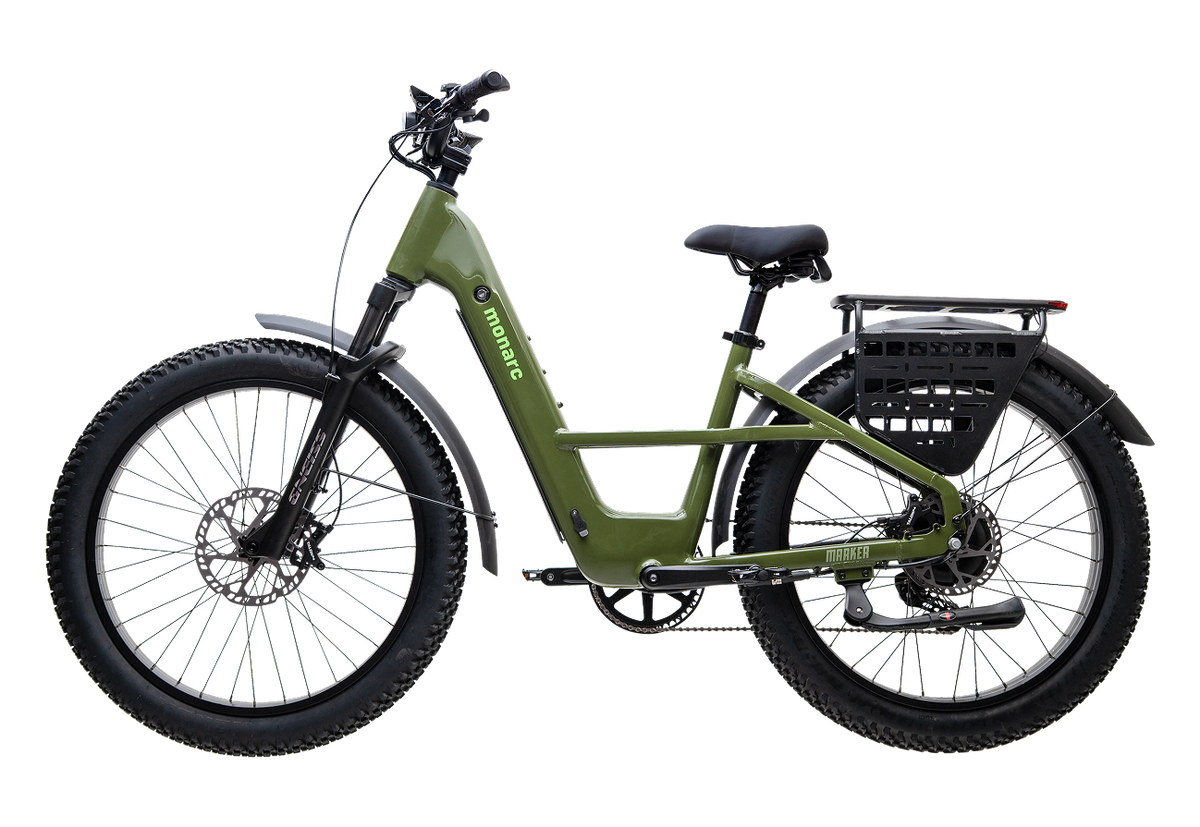

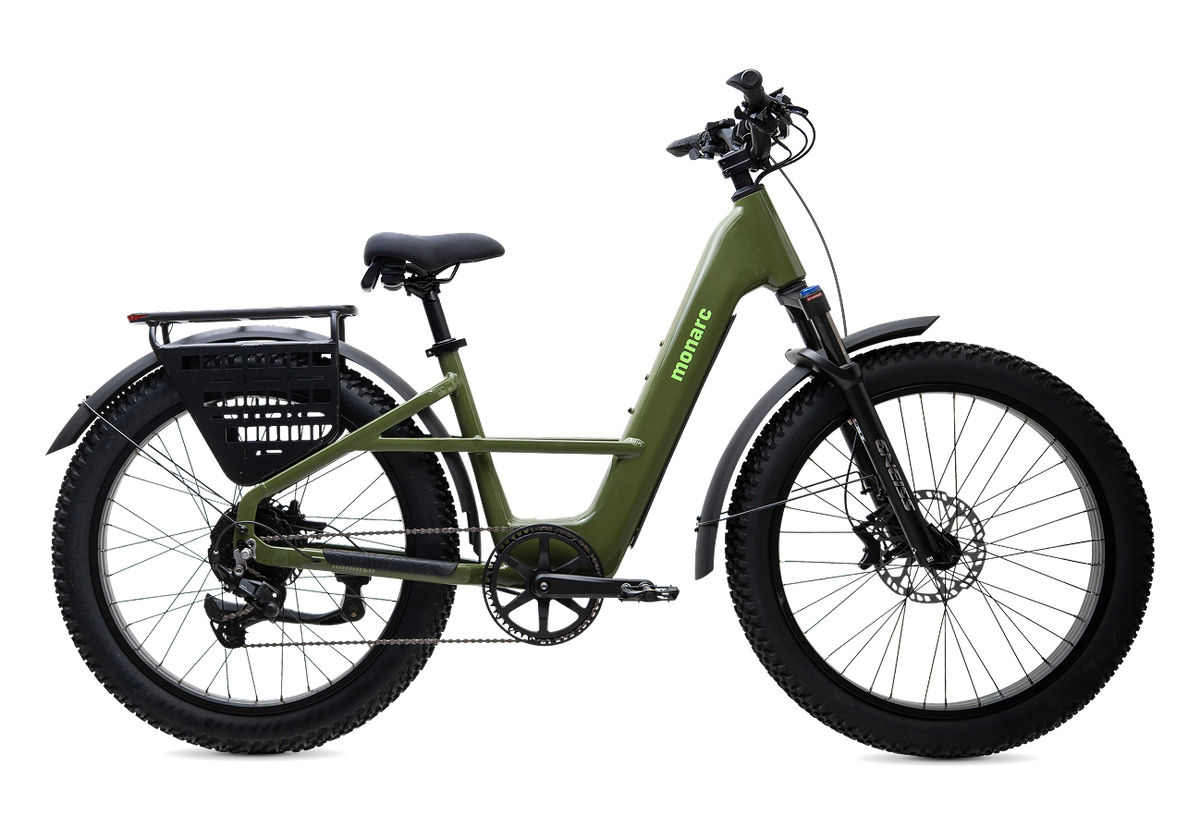

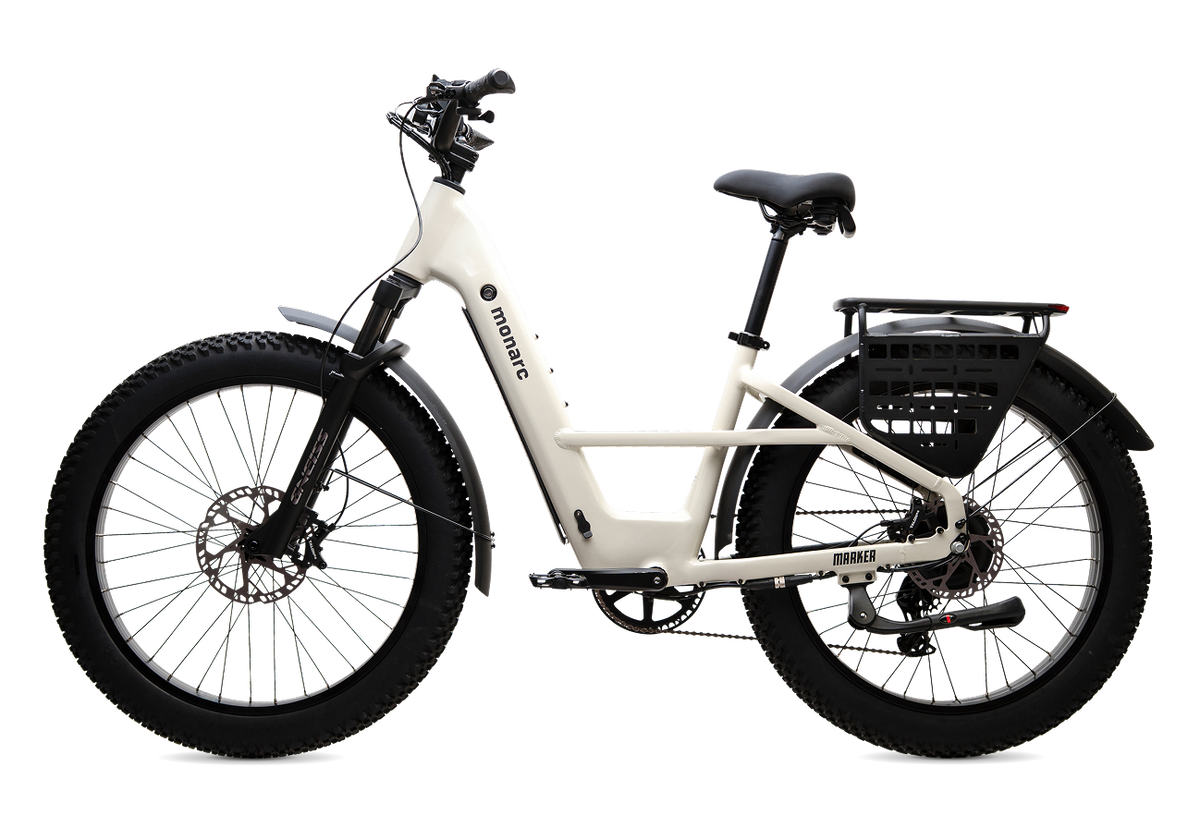

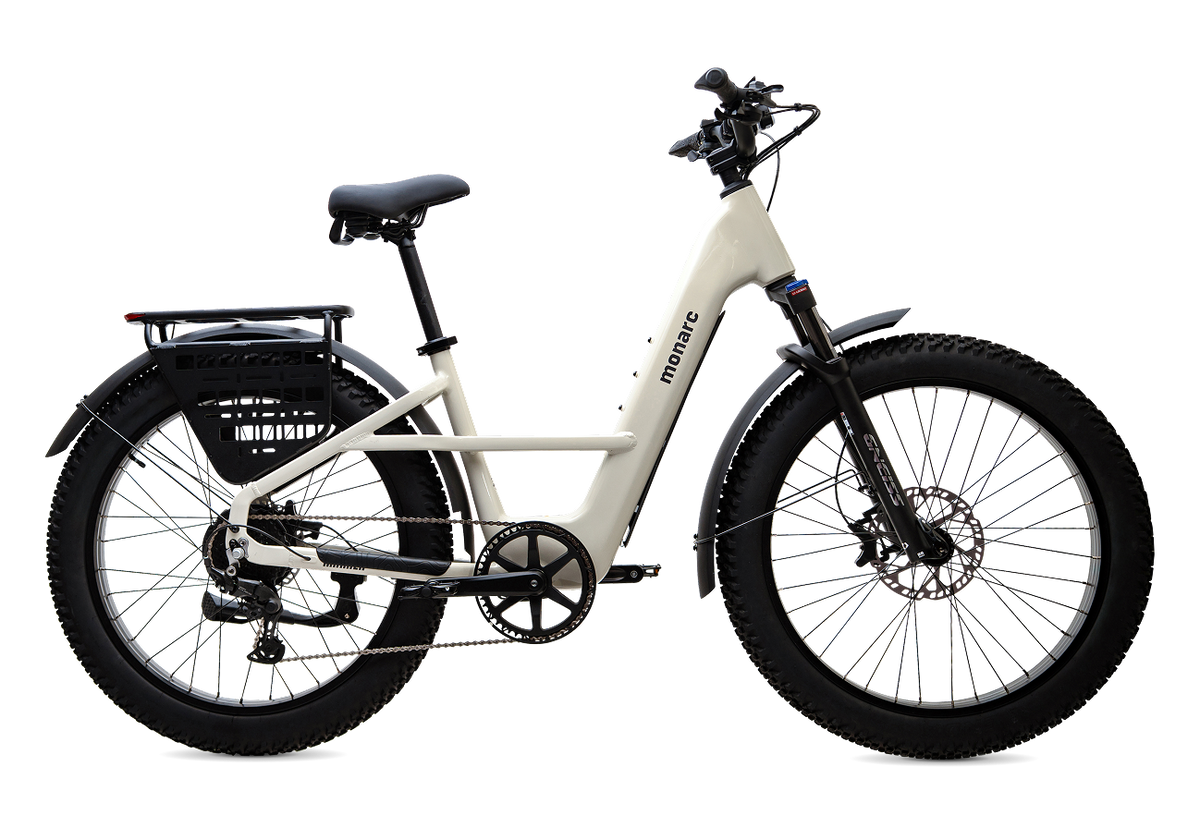

• Available colors: Greenway, Birchwood.

🚲 Key Features & Specifications

• Motor: Bafang B750 rear hub; 750W nominal, 1,638W peak

• Motor Torque: 85Nm

• Class / Speed: Class 2 by default; configurable Class 1/2/3; maximum assisted speed 28 MPH

• Battery: Removable 48V 15Ah / 720Wh lithium-ion battery with LG cells

• Range: Up to 60 miles per battery; up to 120 miles using two batteries

• Assist Type: Selectable torque or cadence sensing, plus thumb throttle

• Frame: Hydroformed 6061 aluminum

• Brakes: Star Union Talon P4 four-piston hydraulic discs

• Tires: 26 × 4-inch Kenda all-terrain tires

• Bike Weight: 87 lb

• Rider Height: 5′2″–6′3″

• Maximum Rider Weight: 330 lb

• Gross Payload Capacity: 420 lb

• Rear Rack Capacity: 66 lb (30 kg)

🌟 Why We Love It at Tampa Bay eBikes

The Monarc Marker Step-Thru combines practical equipment with features you can adjust to your riding style:
✔ Selectable torque and cadence assistance
✔ Four-piston hydraulic braking
✔ Suspension and an equipped rear rack
✔ Local help with fit, setup, and ongoing service

📍 Available at Tampa Bay eBikes

When you purchase from Tampa Bay eBikes, you get:
✔ Professional assembly & safety inspection
✔ Local service and warranty support
✔ Expert advice and test rides

👉 Visit Tampa Bay eBikes to find your Monarc Marker Step-Thru.
