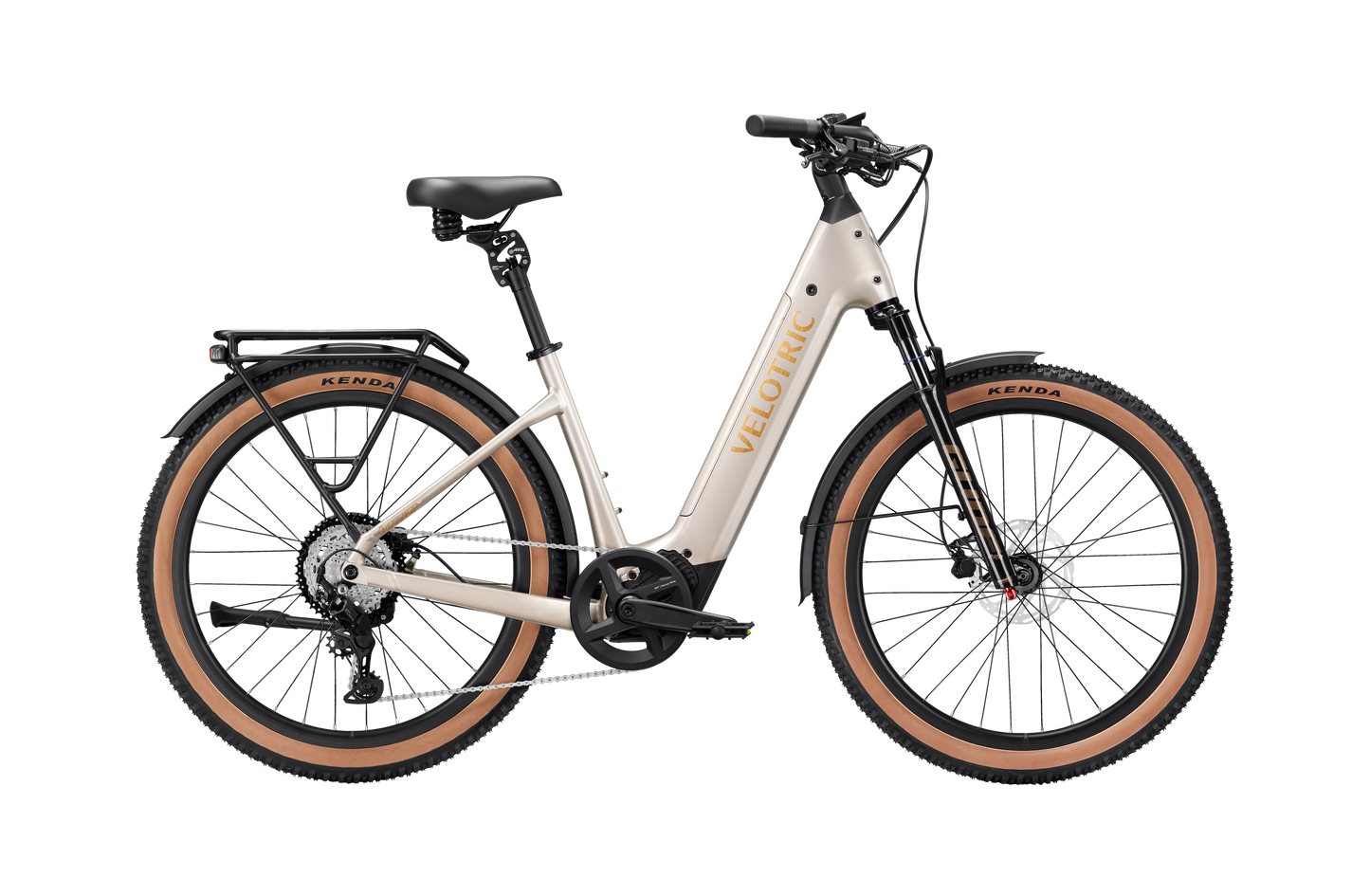

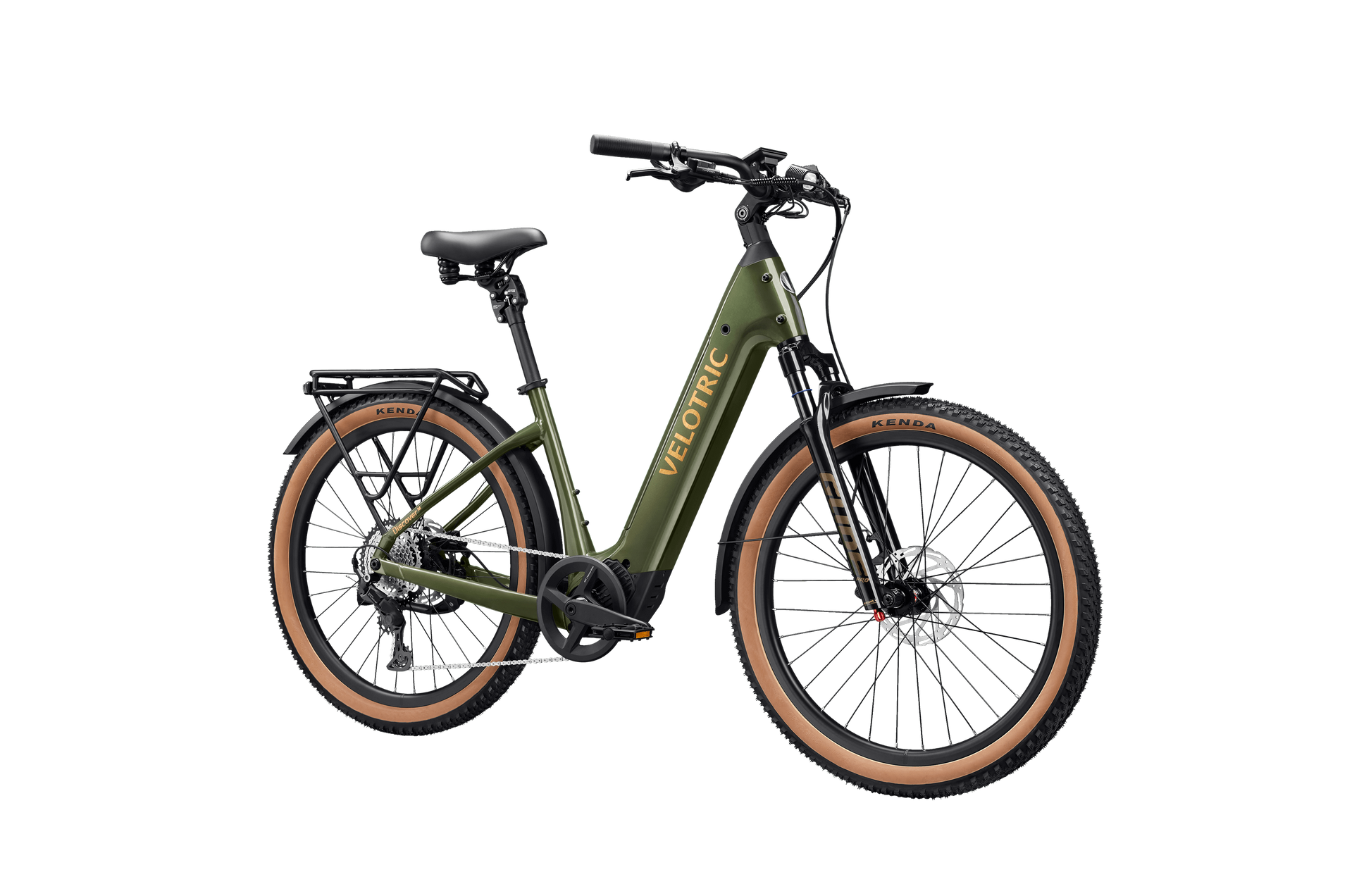

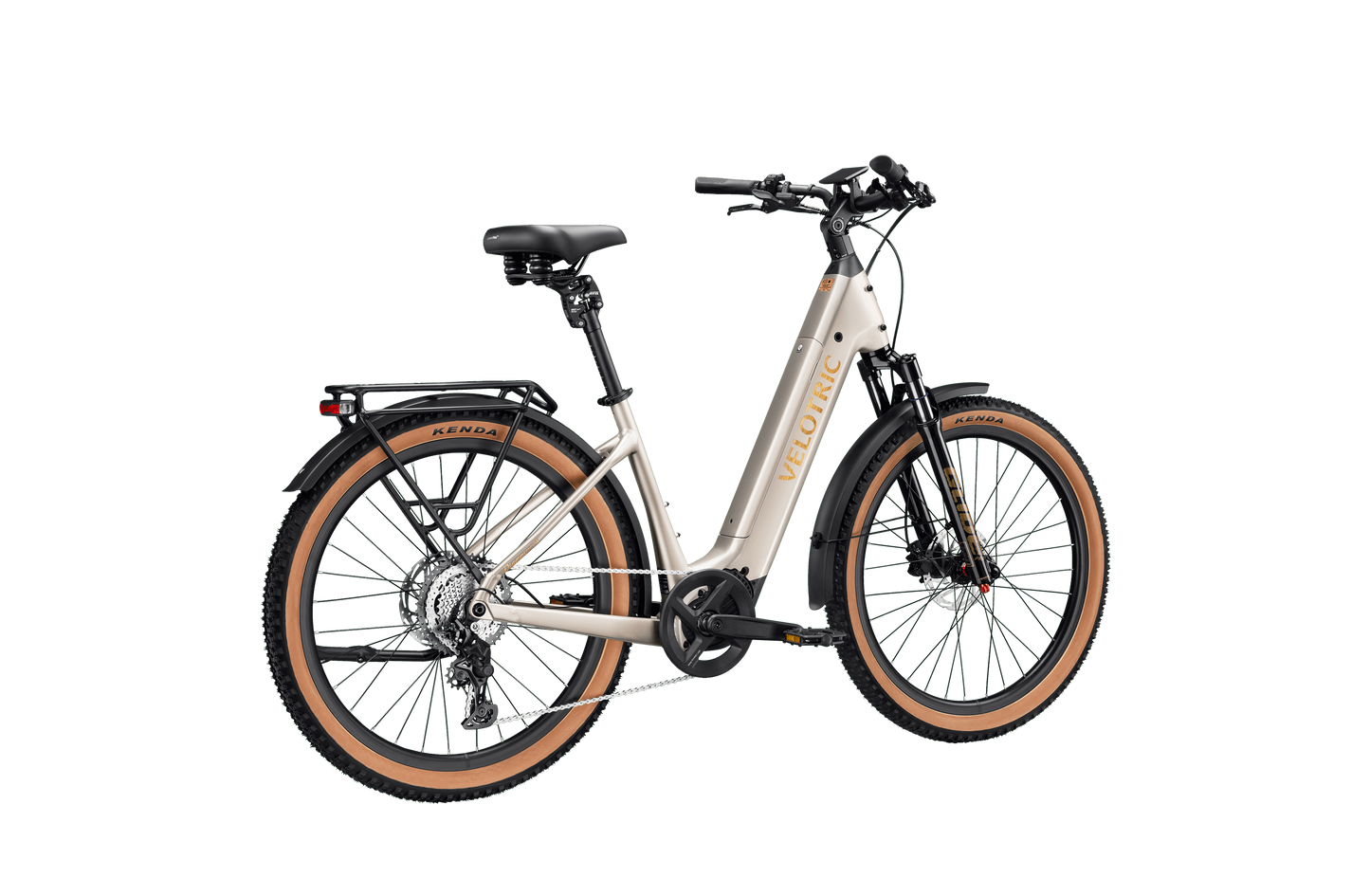

🚲✨ Velotric Discover M Electric Bike

True Mid-Drive Feel • Long-Range Power • Comfort-First Commuter

Meet the Velotric Discover M, a comfort-first commuter eBike built around Velotric’s advanced VeloCore mid-drive system. Designed to deliver smooth, natural power with real-world practicality, the Discover M feels responsive whether you’re cruising Bayshore, climbing a bridge, or riding into a headwind.

Available fully assembled and supported at Tampa Bay eBikes.

---

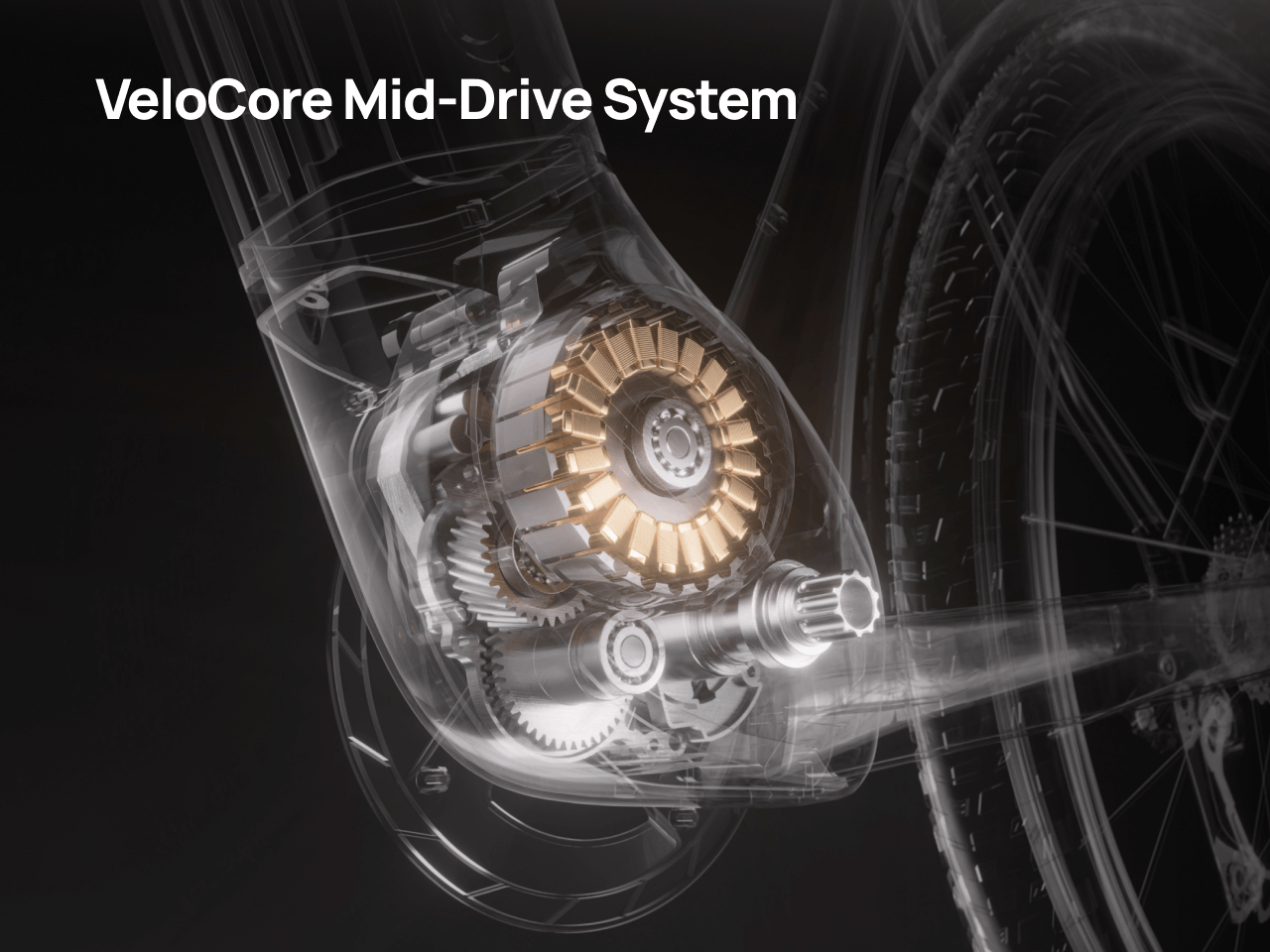

⚡ Mid-Drive Performance, Dialed In

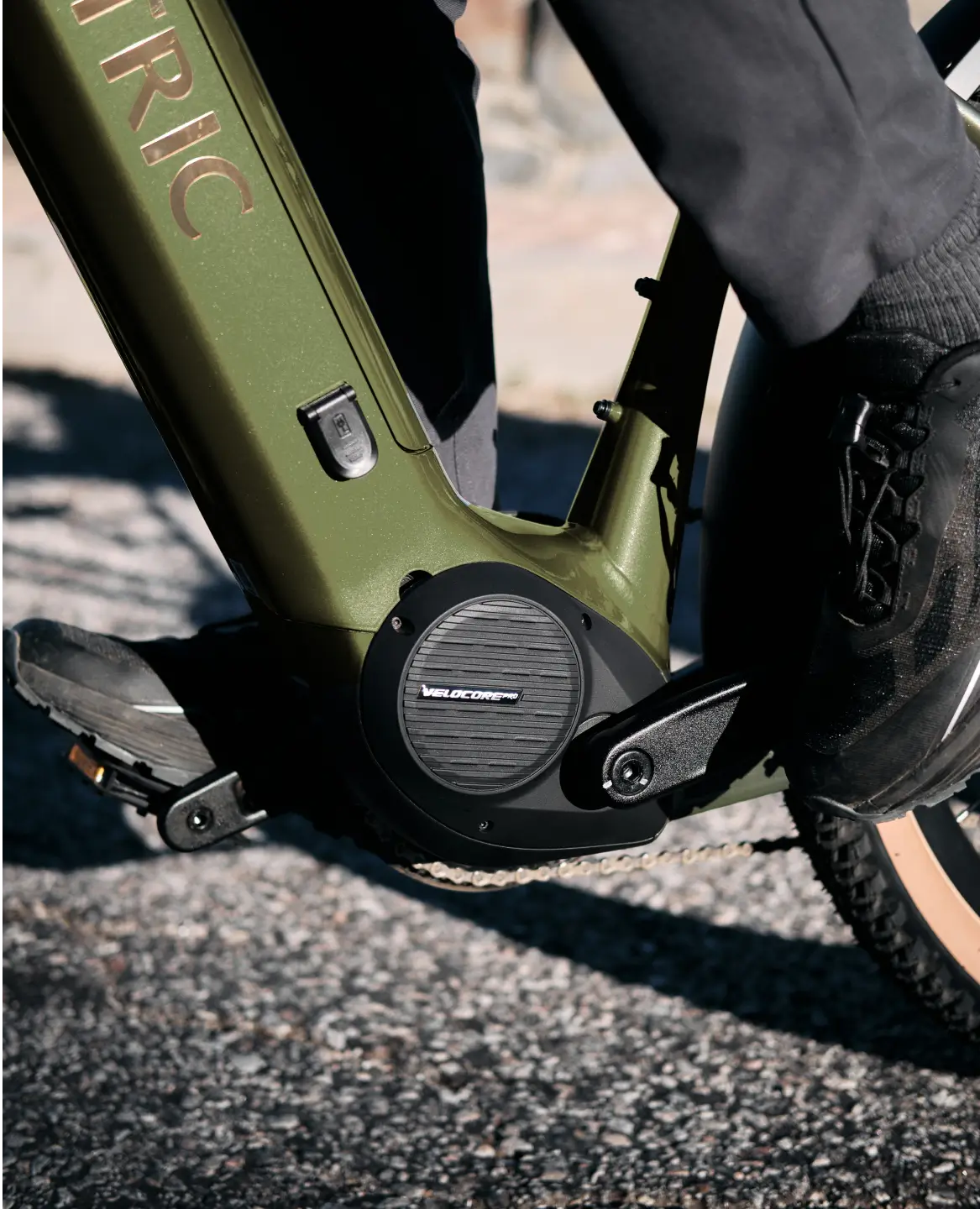

At the heart of the Discover M is a 48V mid-drive motor (500W, 960W peak) delivering an impressive 100Nm of torque. Unlike hub motors, the mid-drive system provides:

• Strong, balanced hill climbing

• Natural pedal feel

• Precise power delivery

• Improved efficiency across gears

Paired with torque and cadence sensors, the Discover M adapts instantly to your riding style.

---

🔋 Big Battery, Big Rides

• 48V 16.7Ah battery (801.6Wh)

• Up to 95 miles pedal assist range (claimed)

• Up to 70 miles throttle range (claimed)

• Samsung/LG 21700 cells

• UL 2271 certified battery

• IPX7 battery water resistance

Built for longer commutes and full-day adventures around Tampa Bay.

---

🌴 Comfort for Daily Miles

The Discover M is engineered for smoother riding on city streets and paved paths:

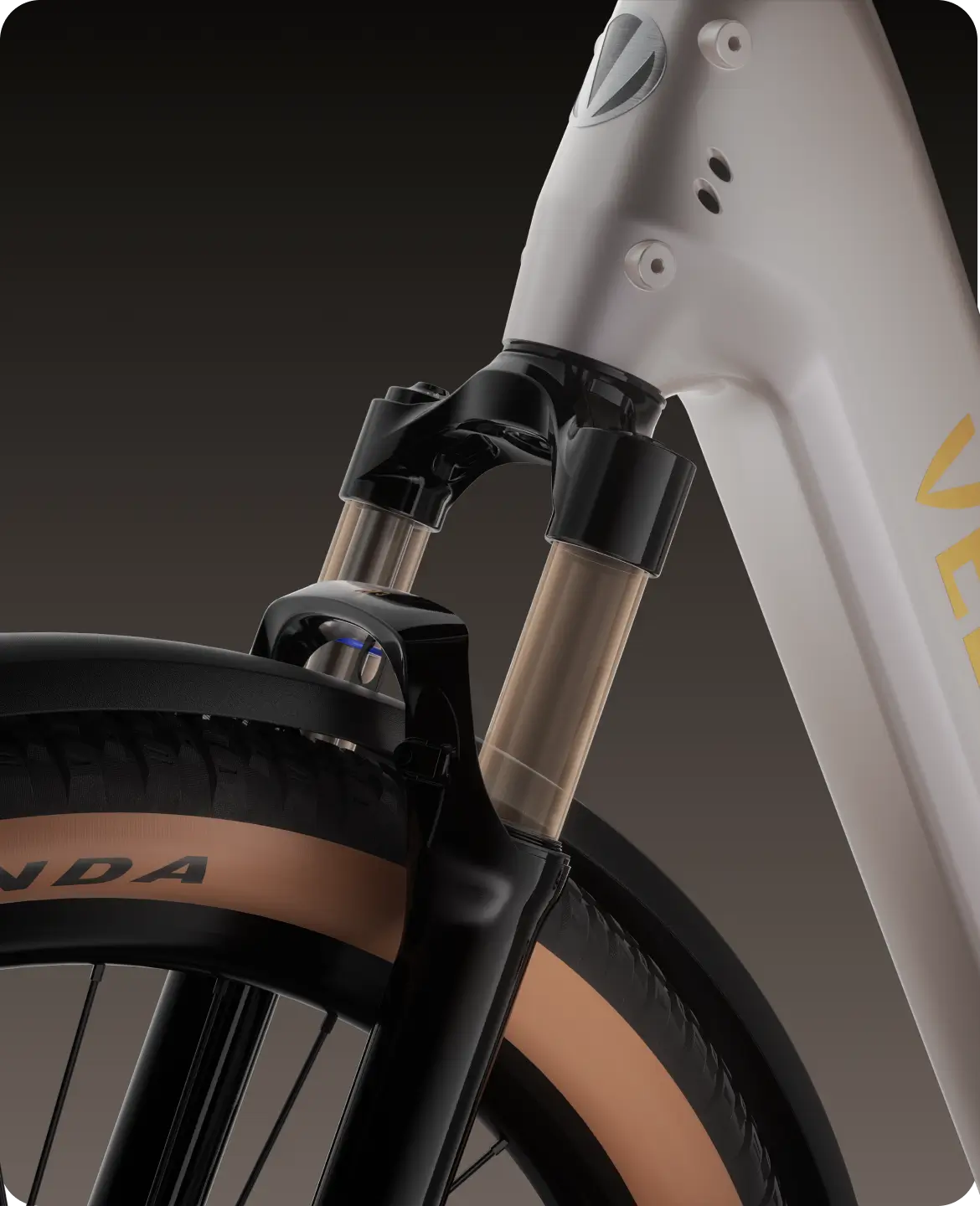

• Air suspension fork (80mm travel, lockout, rebound adjustable)

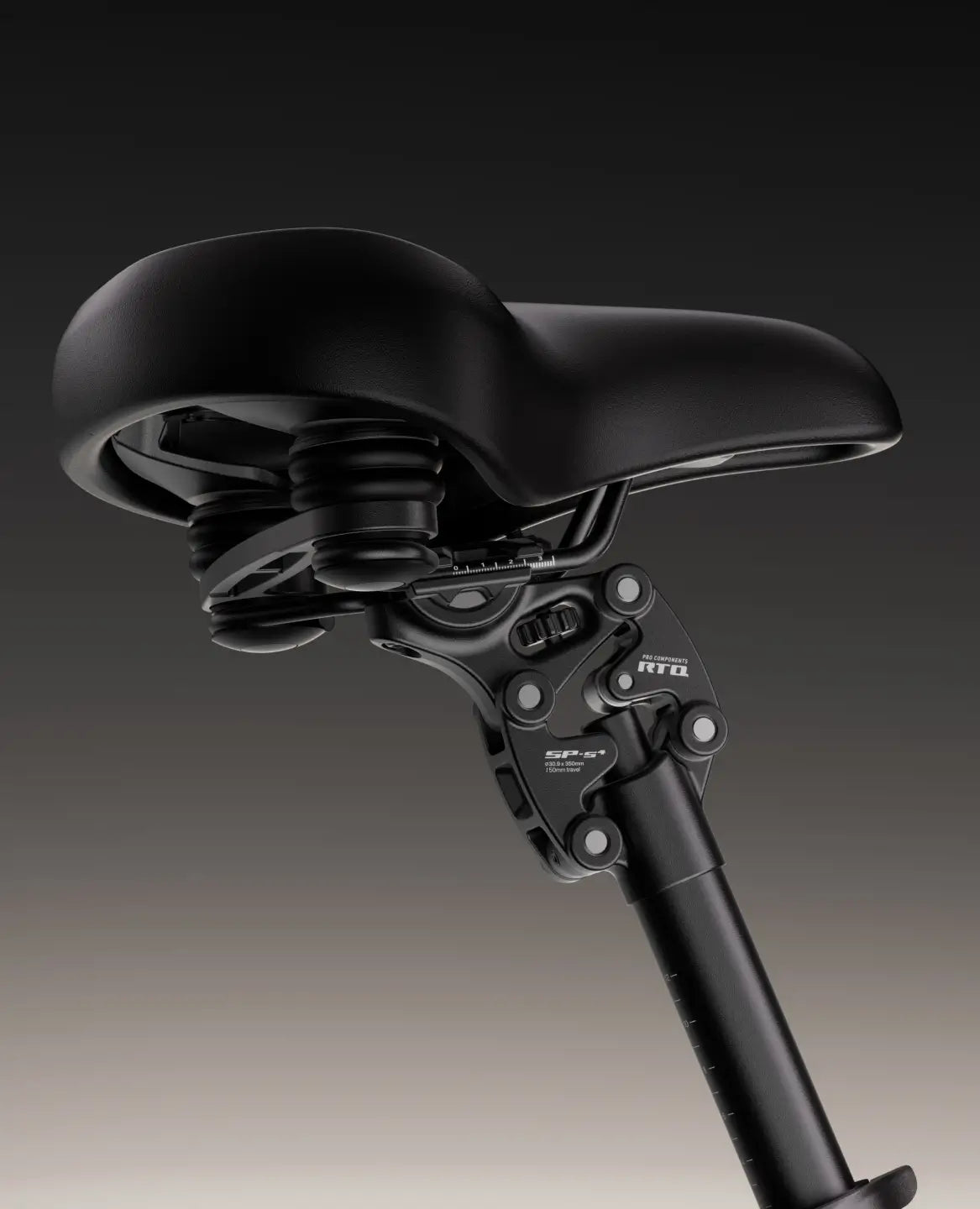

• Suspension seatpost

• Ergonomic saddle and lockable grips

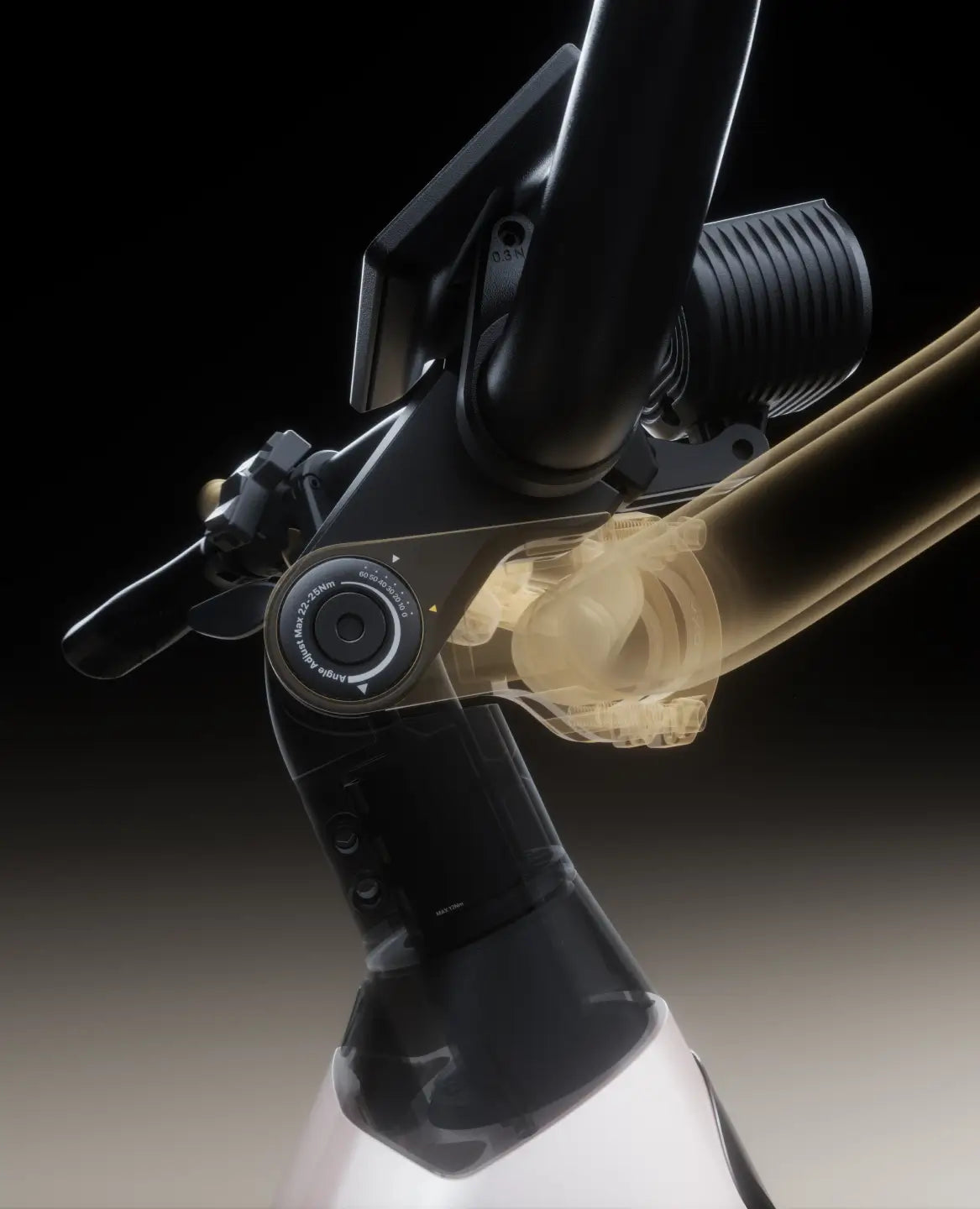

• Adjustable stem for dialed-in fit

The result is a stable, upright position that reduces fatigue on longer rides.

---

🚦 Speed & Ride Modes

The Discover M can be configured as:

• Class 1, 2, or 3

• Adjustable top speed from 12–28 MPH

• Default setting: 20 MPH

• Removable trigger throttle

• 4 assist levels + Auto Mode

• Walk mode (2.9 MPH)

Always ride in the class and settings that match local regulations.

---

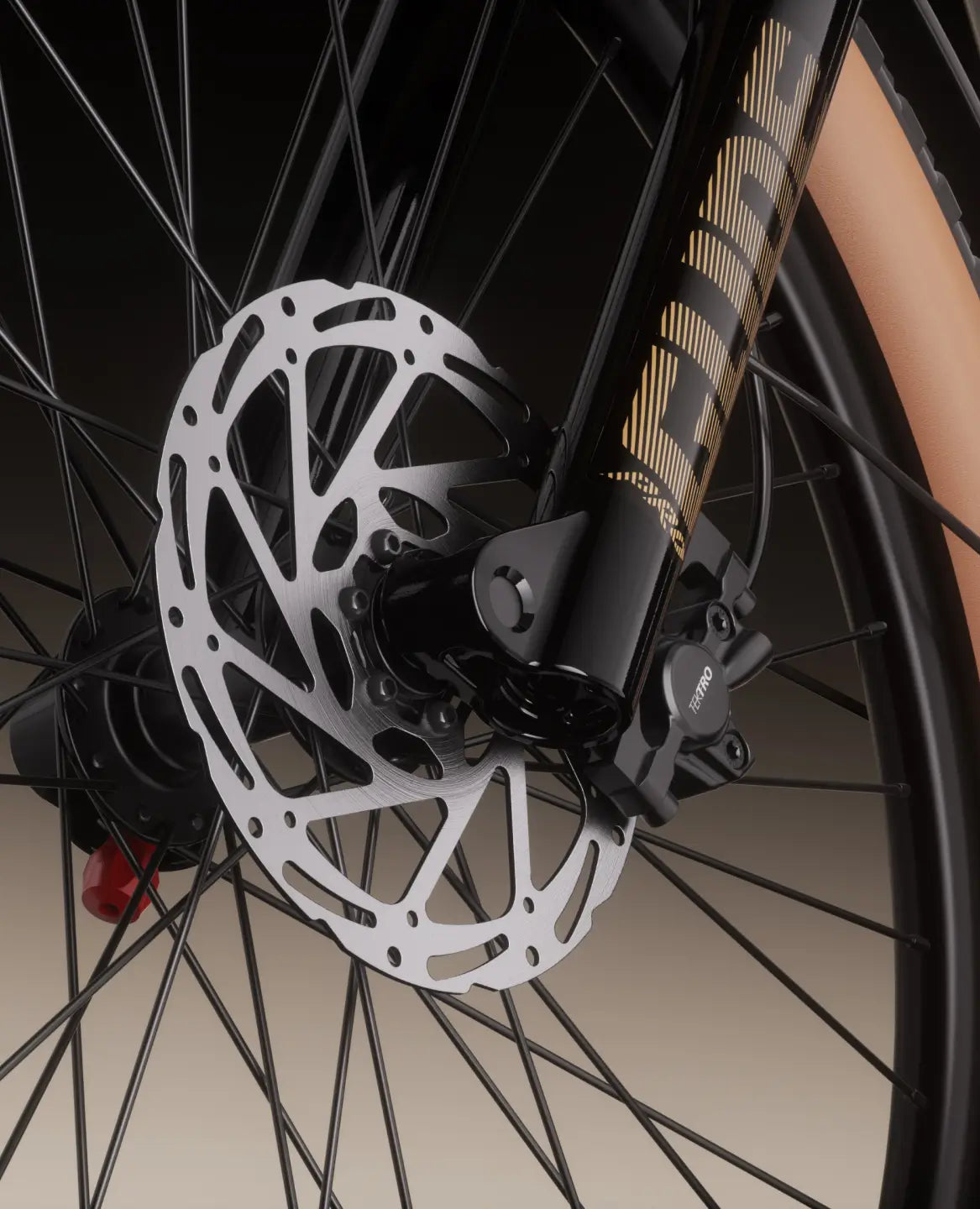

🛑 Confident Braking & Control

• Tektro hydraulic disc brakes

• 180mm rotors front and rear

• Power cutoff brake levers

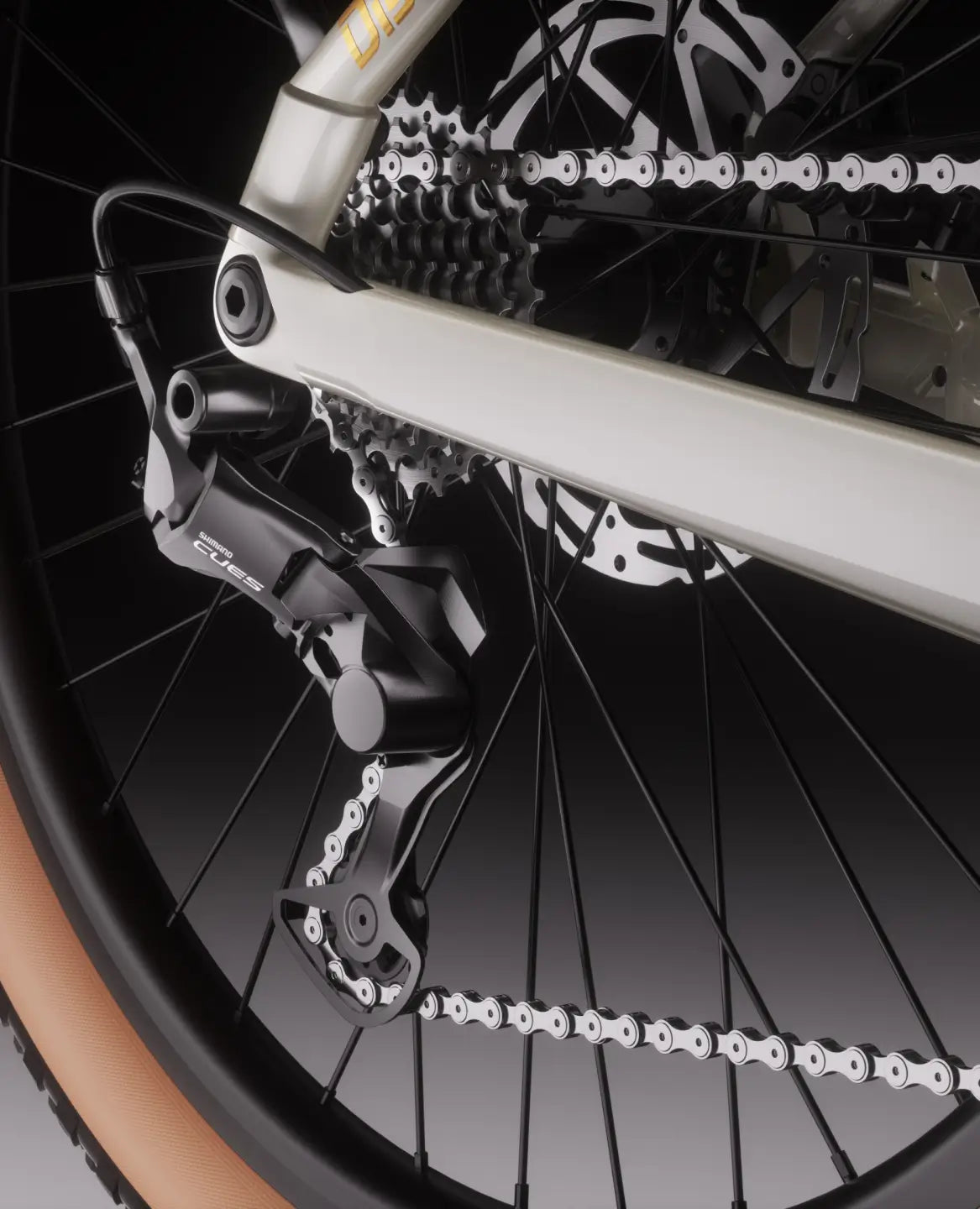

• Shimano CUES 9-speed drivetrain (11–46T)

• KMC eGlide 9-speed chain

Strong stopping power and wide gearing make hills and descents manageable and controlled.

---

📱 Smart, Connected & Secure

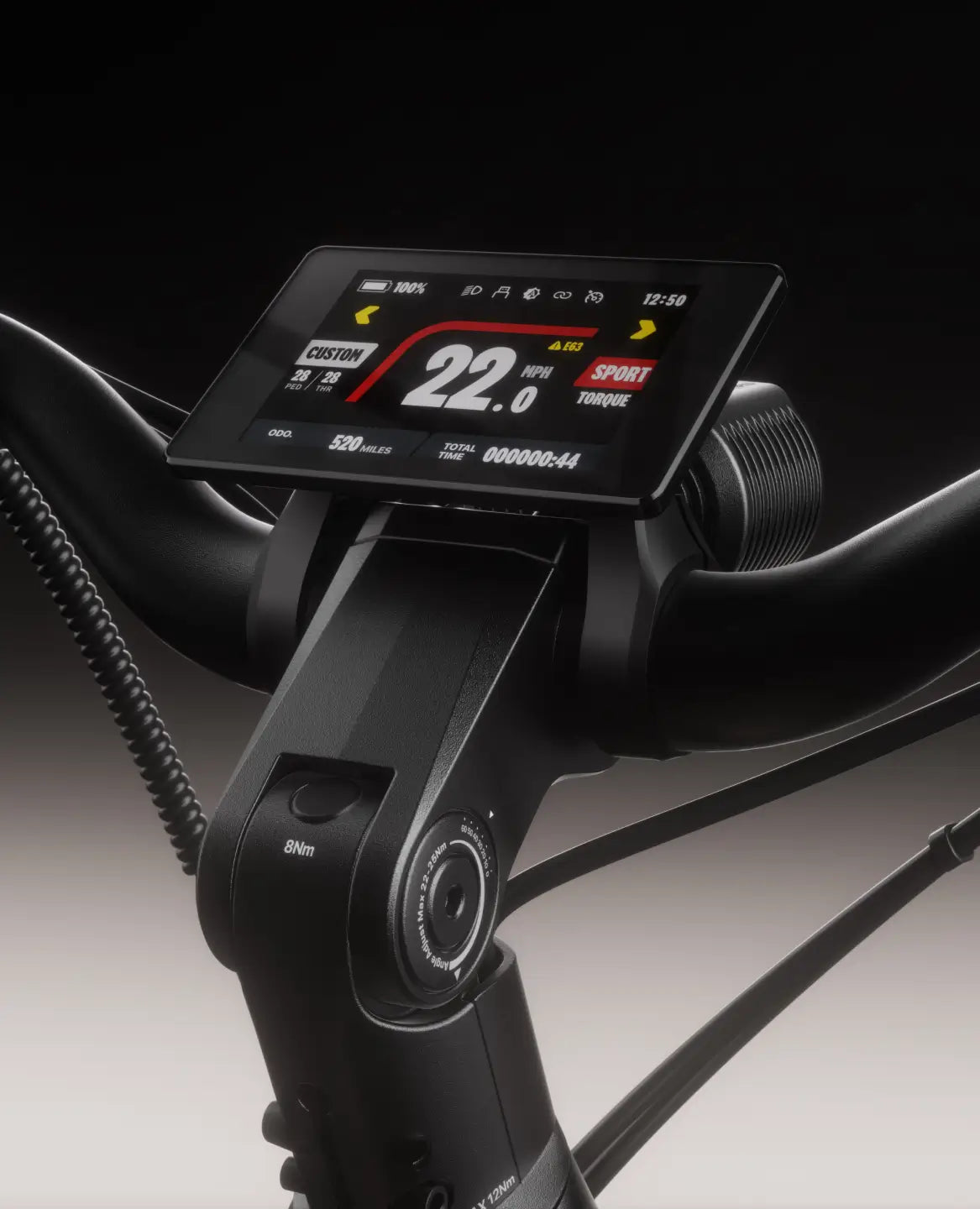

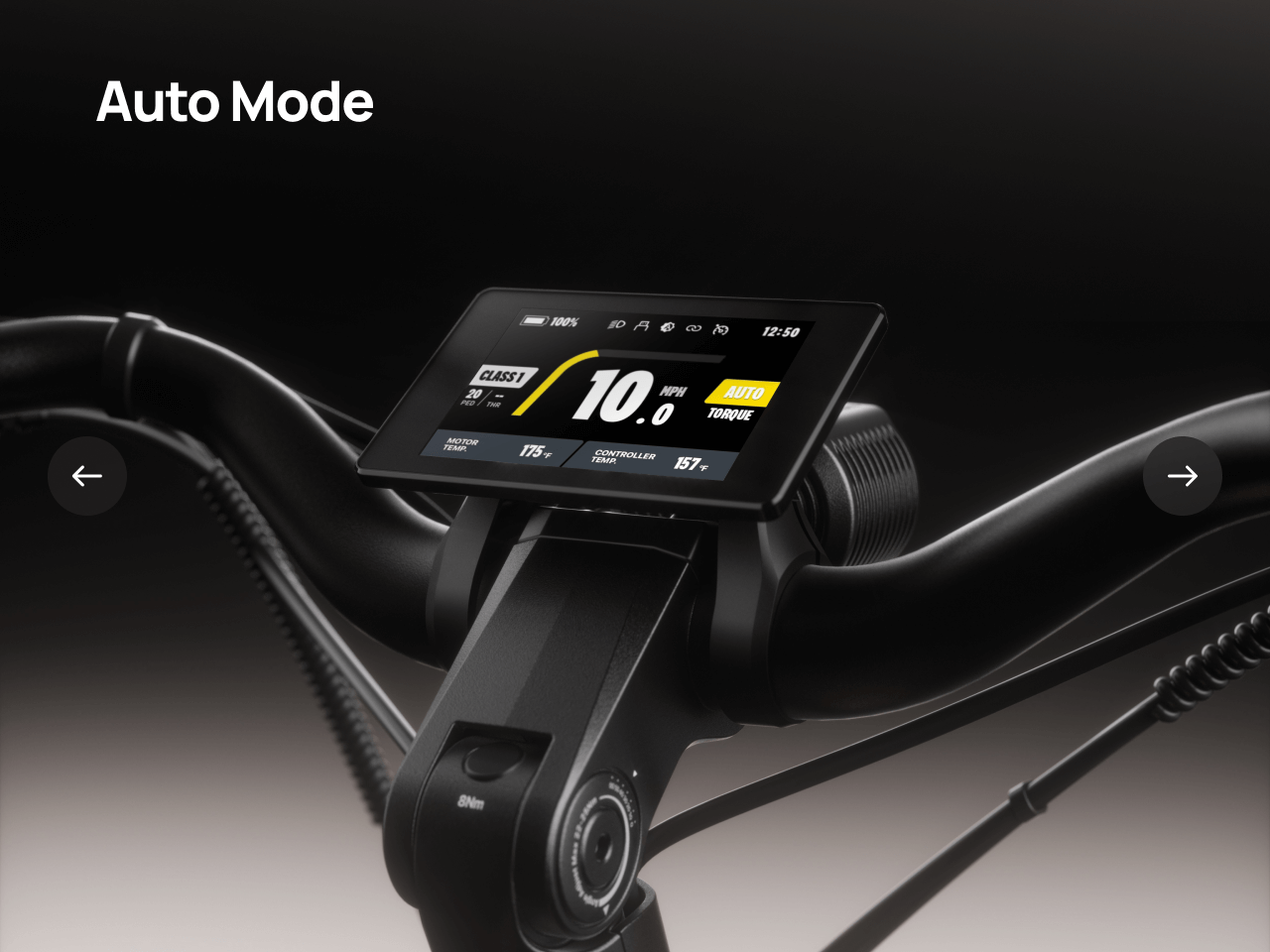

• 3.5” full-color smart display

• Bluetooth connectivity

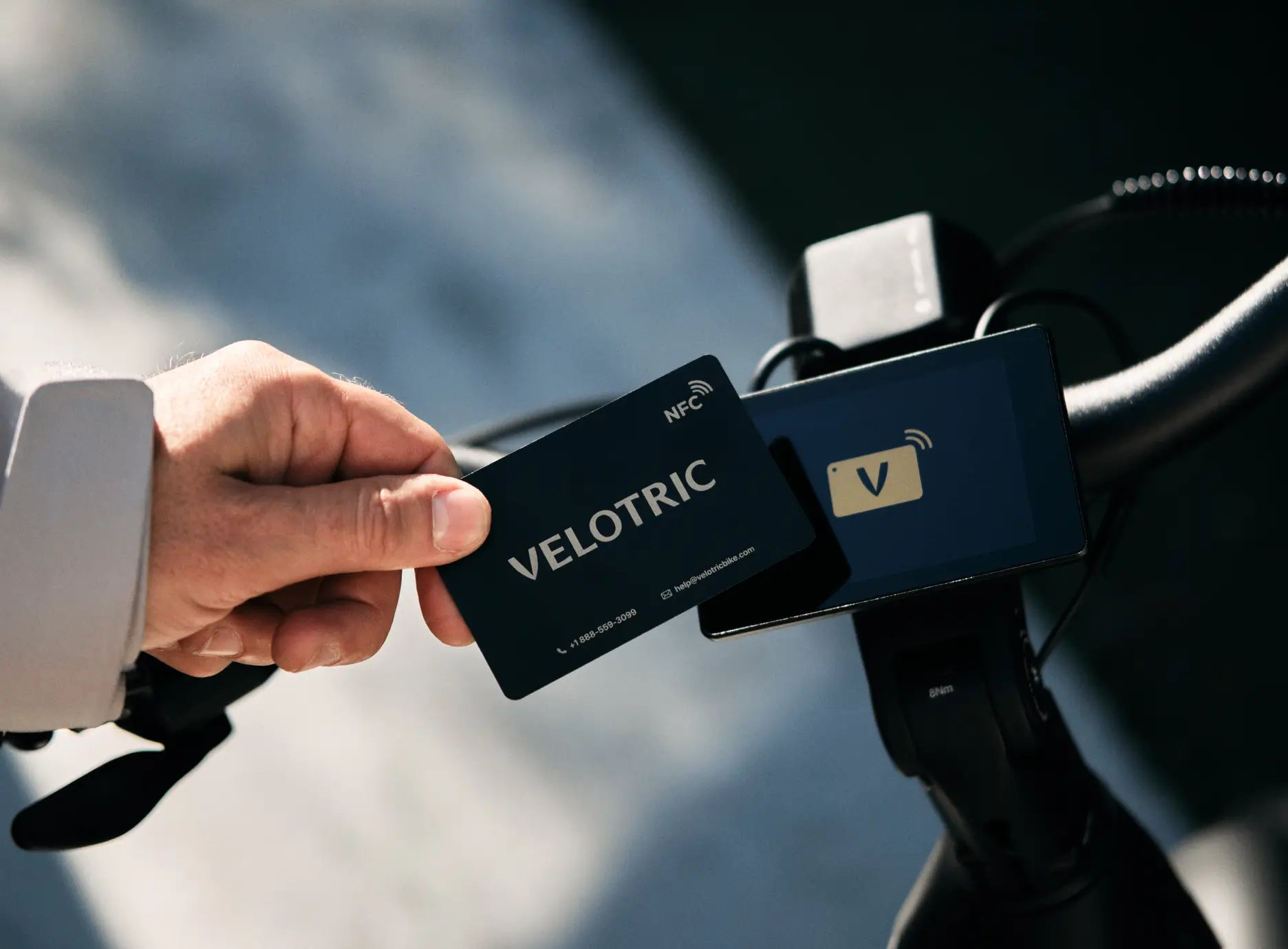

• NFC unlock

• Apple Find My + Android Find Hub

• USB-C phone charging

• App OTA updates

One of the most connected commuter bikes in its class.

---

🧺 Built for Real-World Use

• Full-coverage aluminum fenders

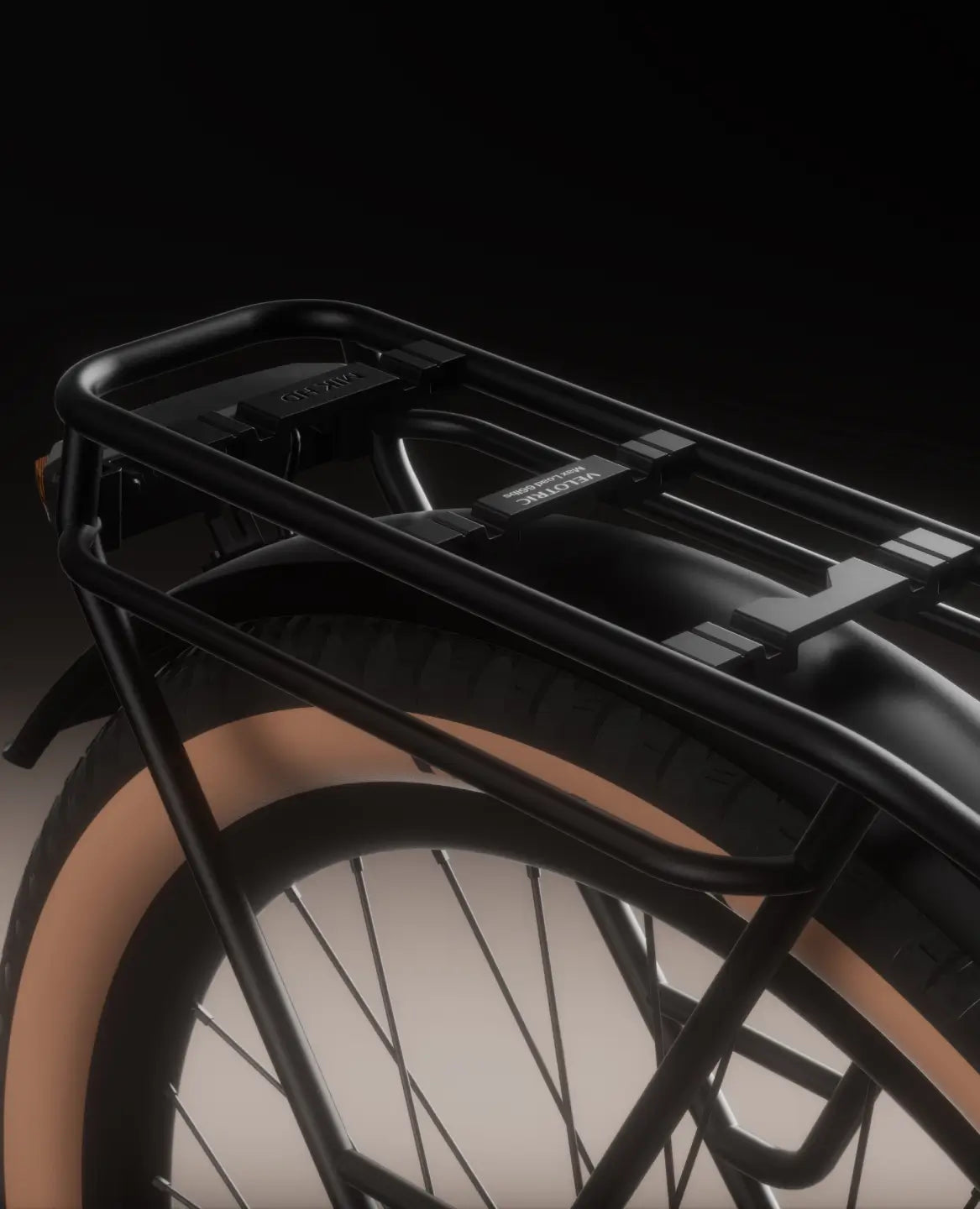

• MIK HD compatible rear rack (66 lb capacity)

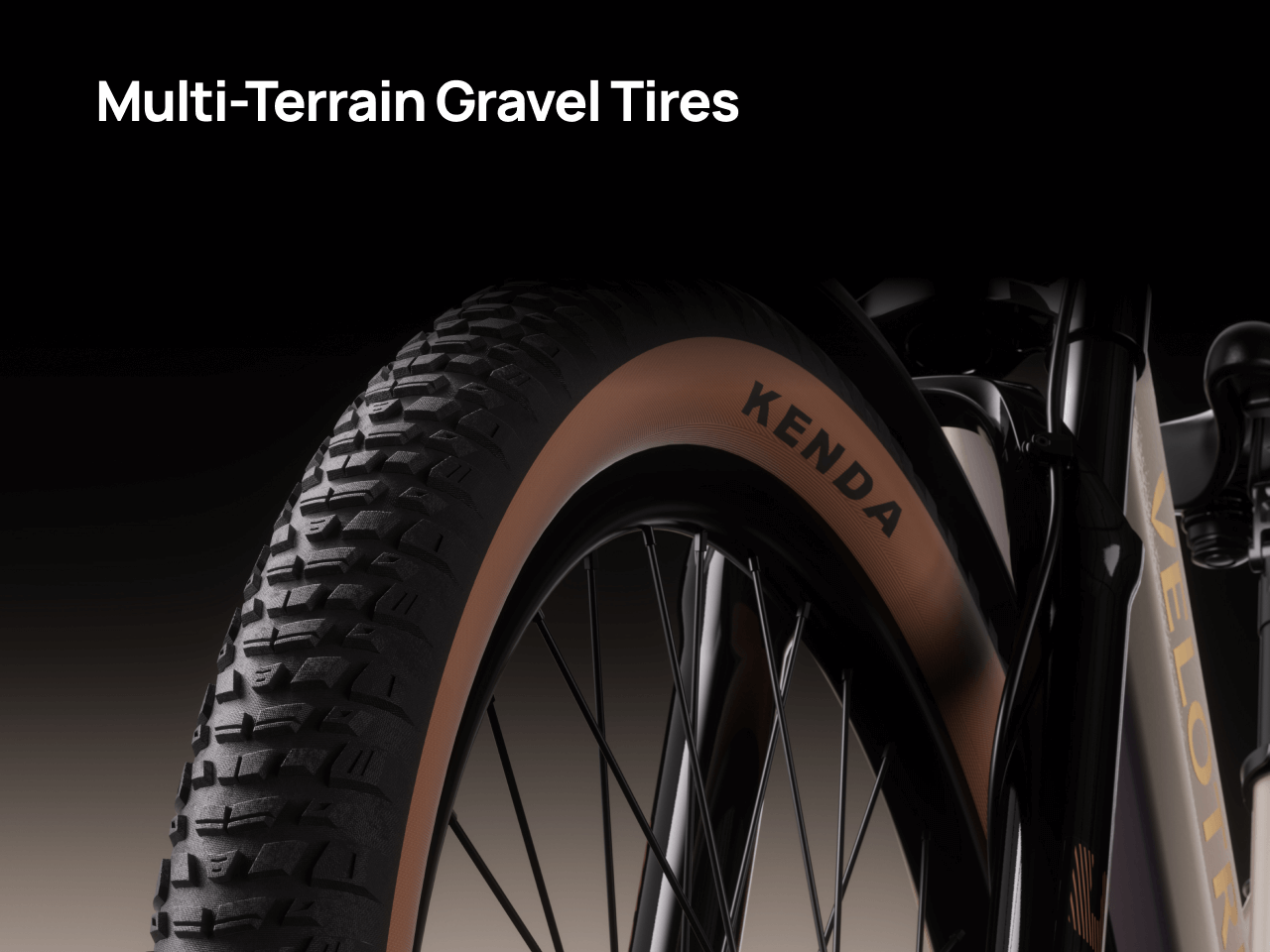

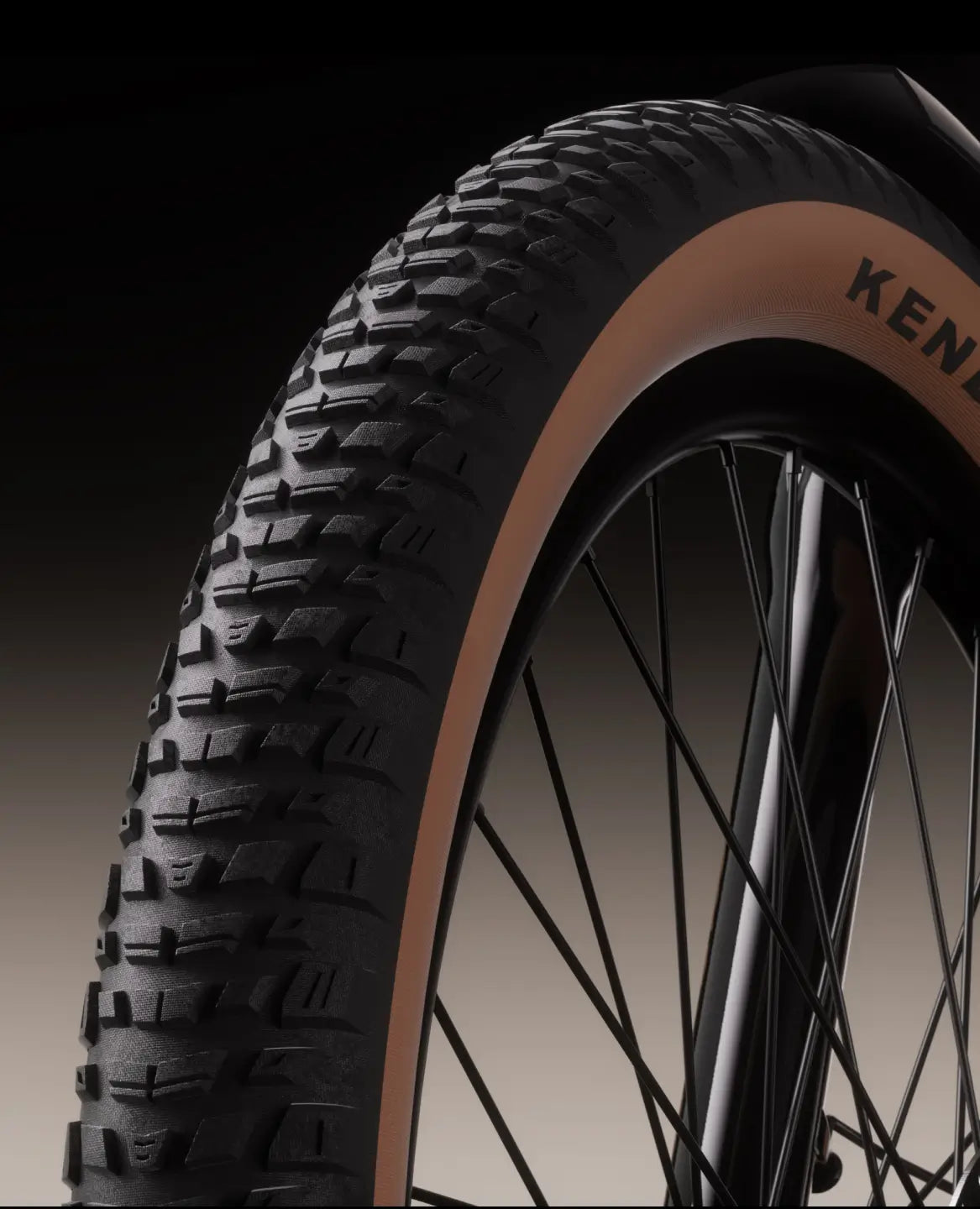

• 27.5” x 2.4” puncture-resistant tires

• 440 lb max bike load capacity

• IPX6 whole-bike water resistance

• UL 2849 certified system

• ISO 4210 compliant

This is a daily driver built to handle Florida weather and heavier loads.

---

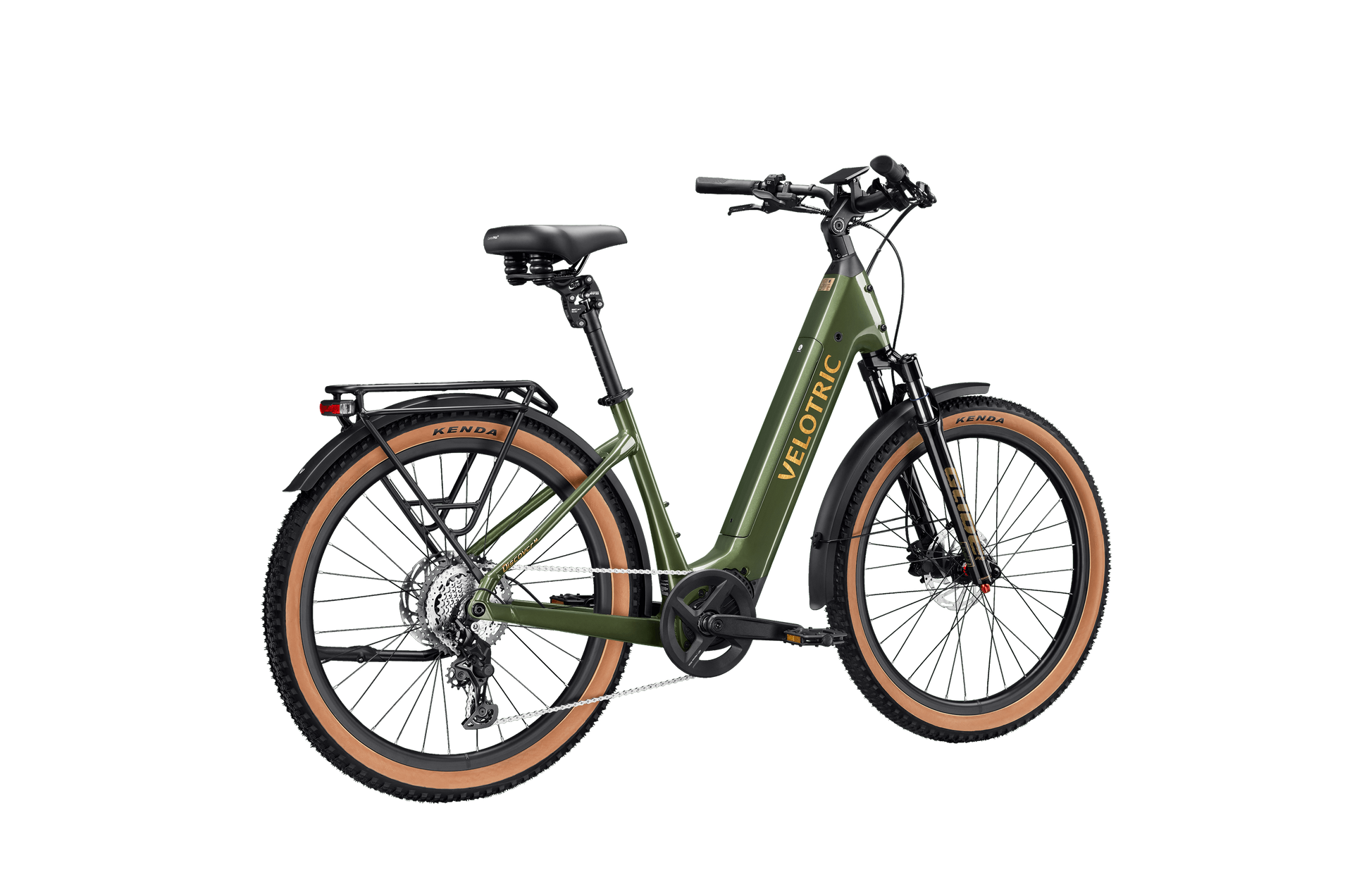

🚲 Key Specifications

Motor: 48V mid-drive, 500W (960W peak), 100Nm
Battery: 48V 16.7Ah (801.6Wh), IPX7
Range: Up to 95 miles PAS / 70 miles throttle (claimed)
Sensor: Torque + Cadence
Drivetrain: Shimano CUES 9-speed (11–46T)
Brakes: Tektro hydraulic disc, 180mm rotors
Fork: Air suspension, 80mm travel
Tires: Kenda 27.5” x 2.4” puncture-resistant
Bike Weight: 60 lb (excluding fenders, kickstand, pedals)
Rear Rack Capacity: 66 lb
Max Load Capacity: 440 lb
Water Resistance: IPX7 battery / IPX6 bike
Certifications: UL 2849, UL 2271, ISO 4210

---

📏 Sizing & Colors

Sizes: Regular / Large

User Height (With Suspension Post):

• Regular: 5’2”–5’11”

• Large: 5’9”–6’7”

User Height (Without Suspension Post):

• Regular: 4’11”–5’9”

• Large: 5’6”–6’4”

Colors:

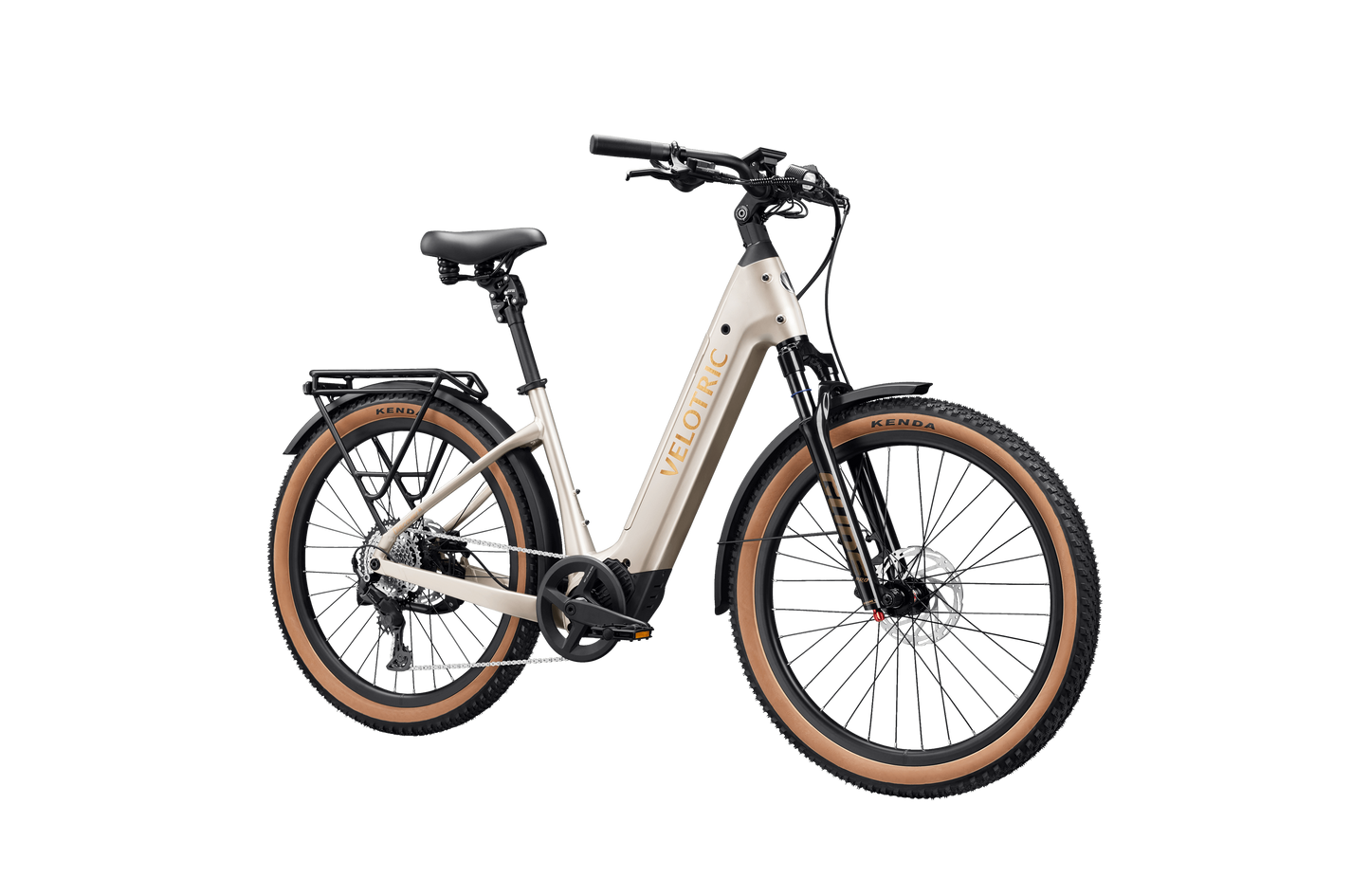

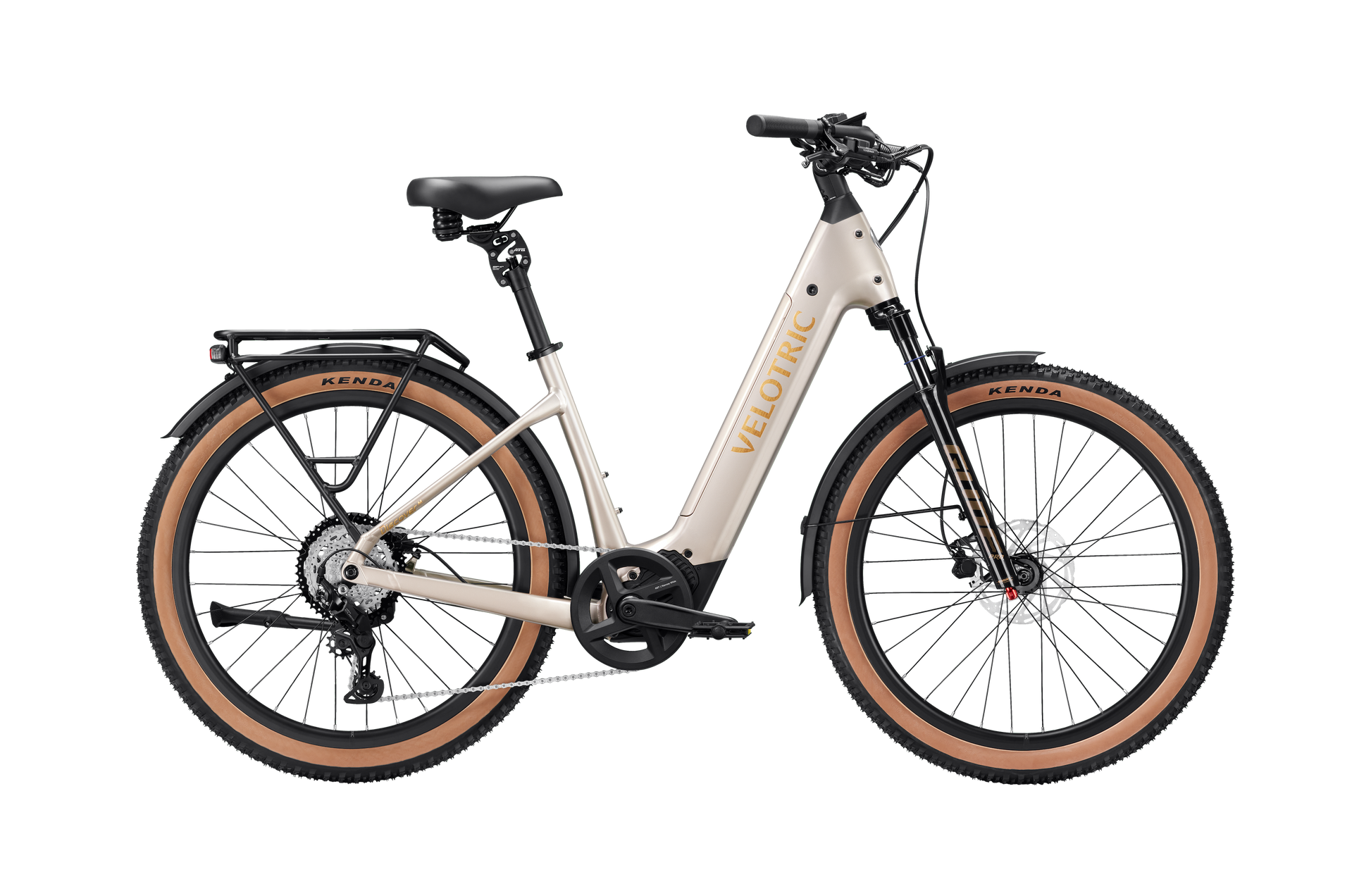

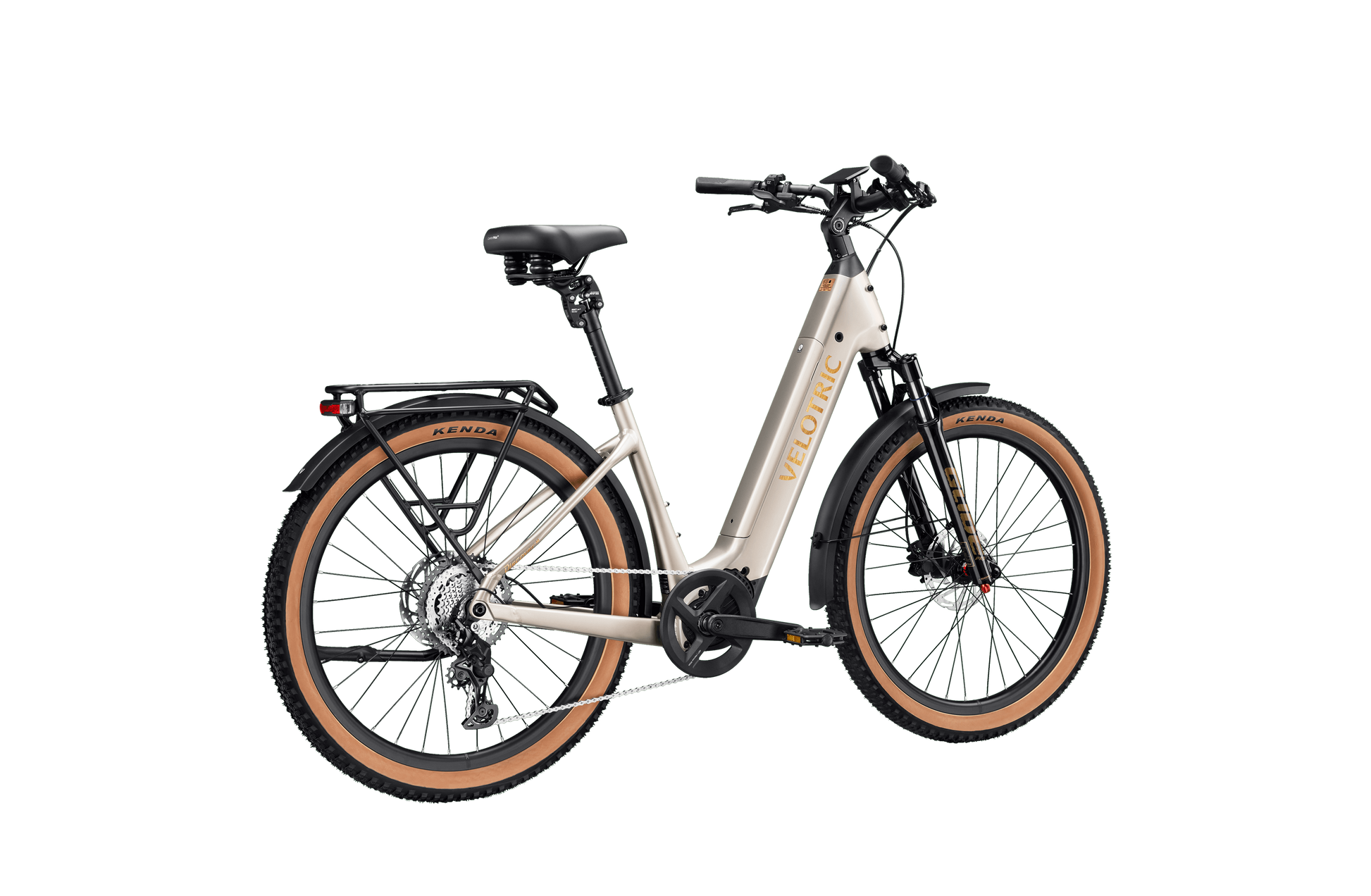

• Platinum Silver

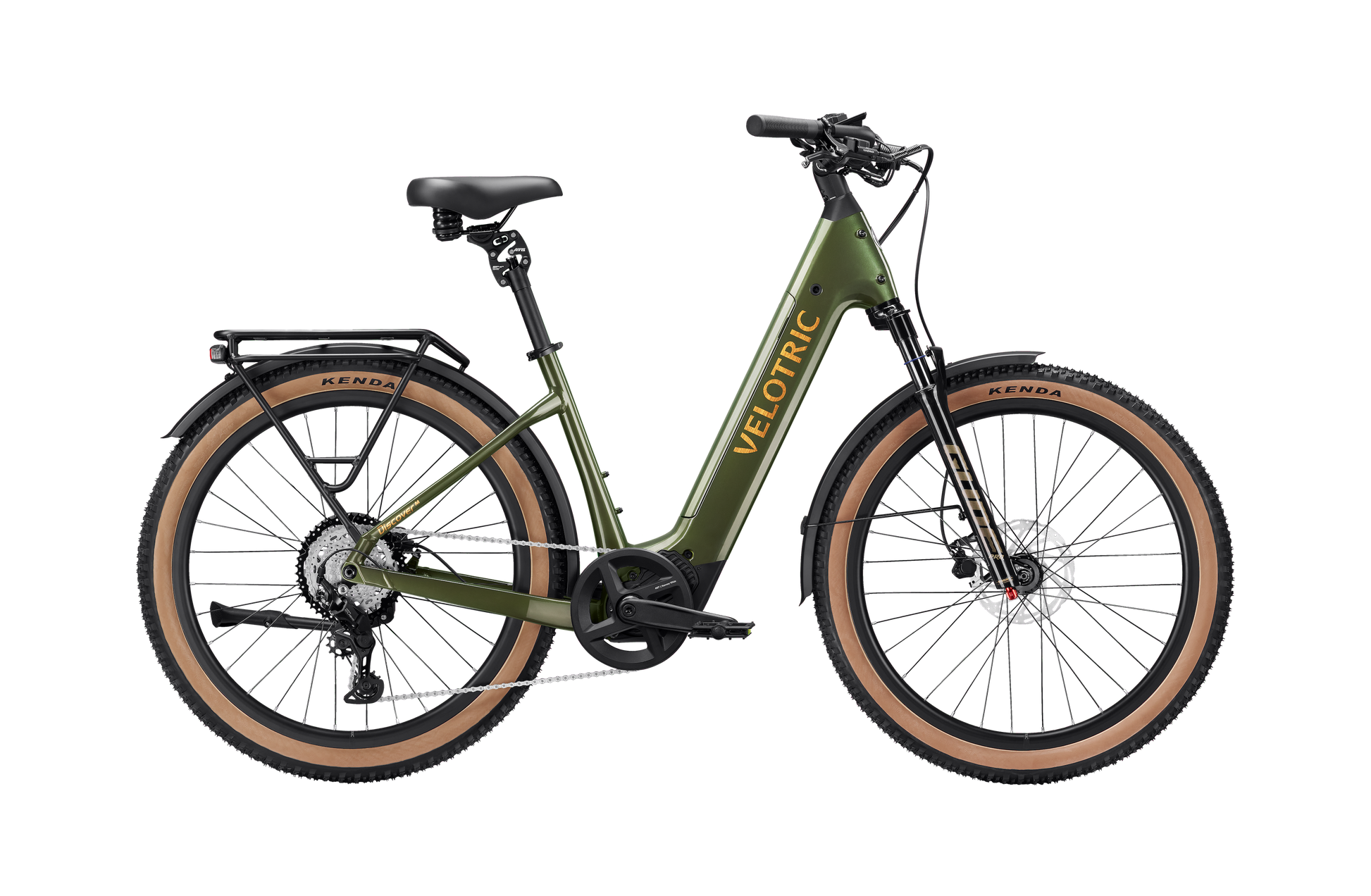

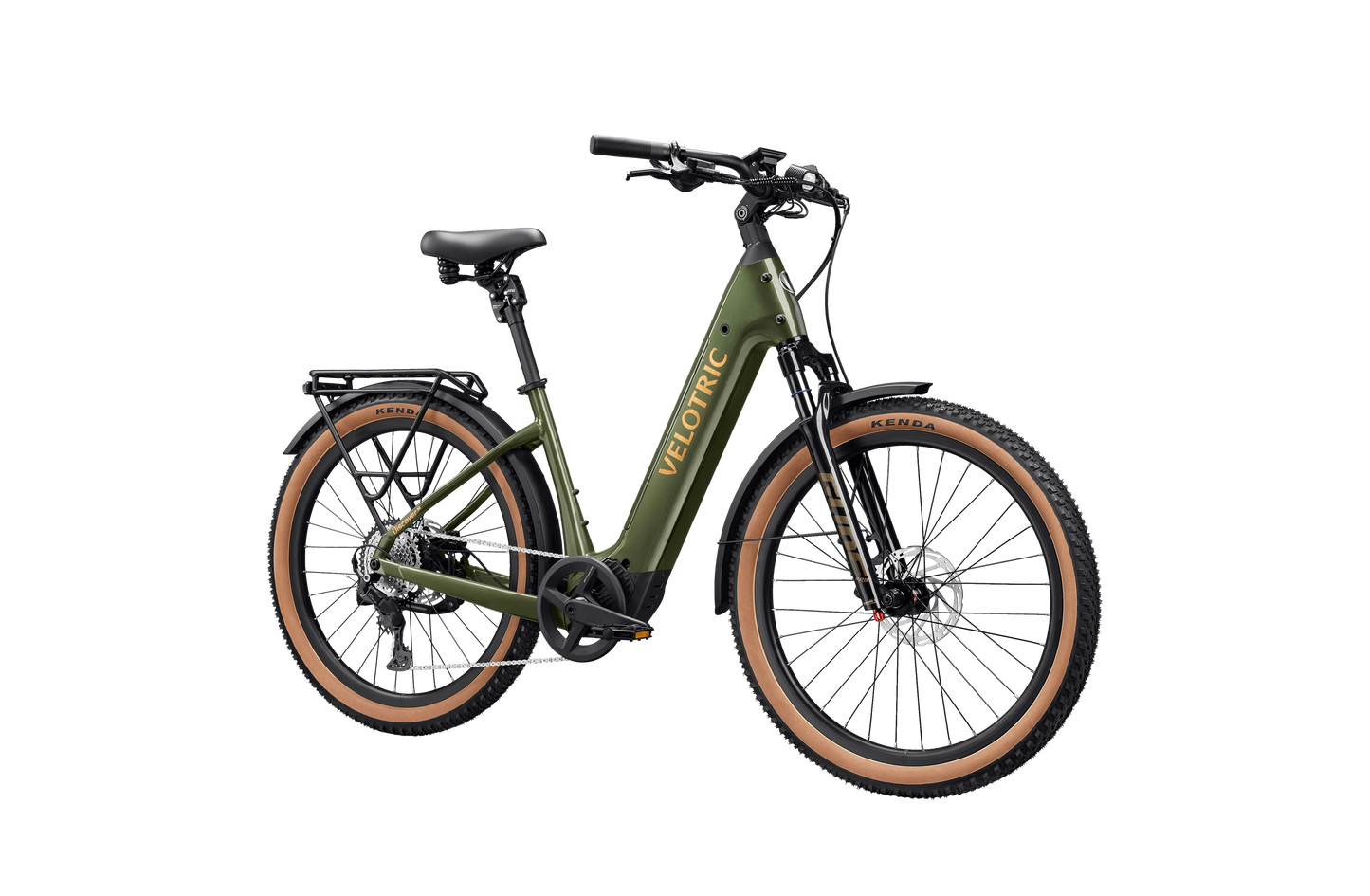

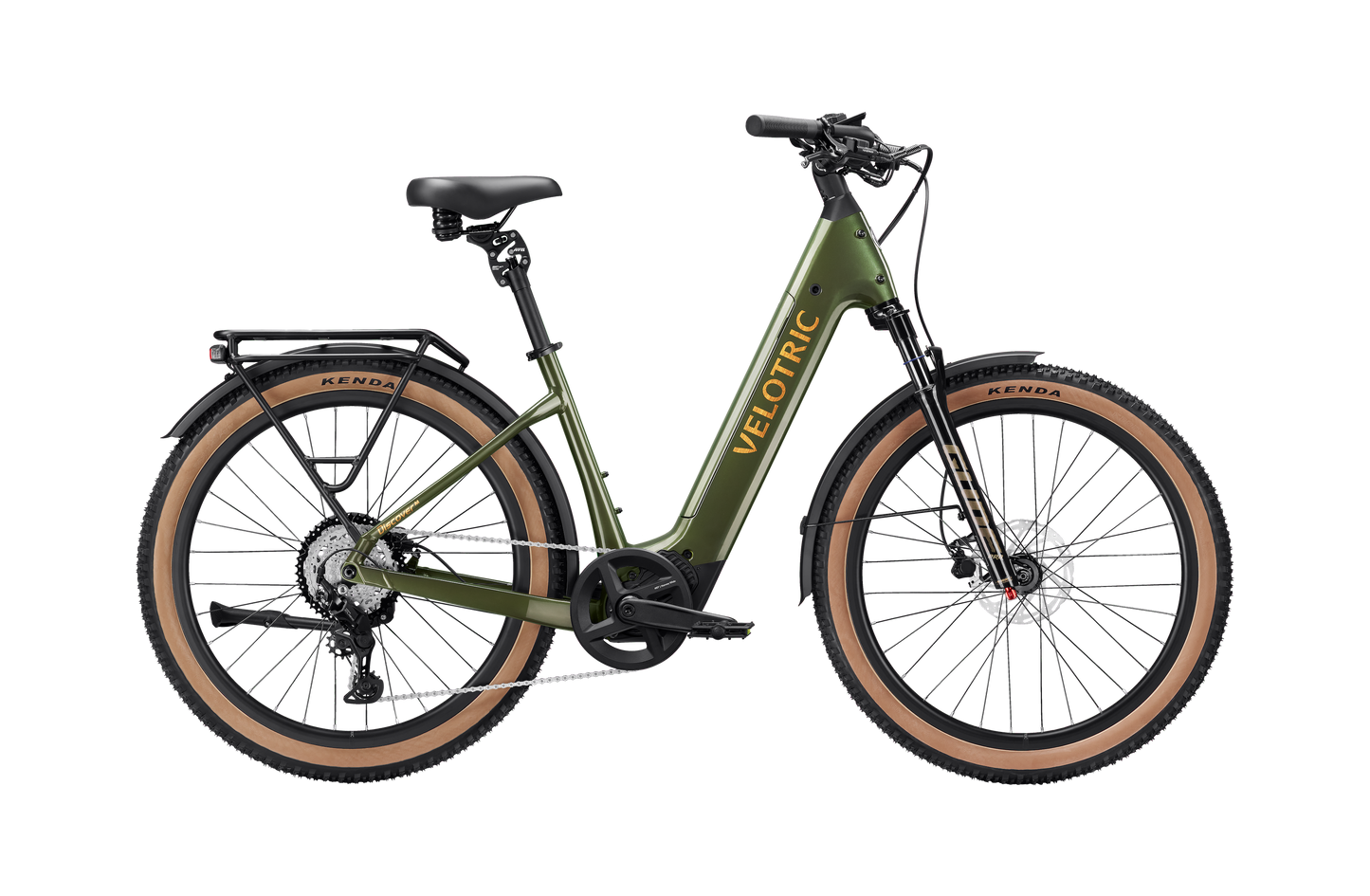

• Olive Green

---

🌟 Why We Love It at Tampa Bay eBikes

The Discover M is a standout because it offers:

✔ True mid-drive climbing performance
✔ Longest range in the Discover lineup
✔ High torque (100Nm) for Florida bridges and headwinds
✔ Advanced anti-theft and smart features
✔ High 440 lb weight capacity

It’s ideal for serious commuters who want efficiency, power, and comfort in one refined package.

---

📍 Available at Tampa Bay eBikes

When you buy from TBEB, you get:

✔ Professional assembly & safety inspection
✔ Local warranty support
✔ Expert sizing & test rides
✔ Ongoing service from a dedicated eBike shop

👉 Come test ride the Discover M and feel the difference mid-drive makes.

Meet the Velotric Discover M, a comfort-first commuter ebike with a true mid-drive feel and everyday practicality 🚲✨ Built around Velotric’s VeloCore mid-drive system, it delivers smooth, precise power that feels natural whether you are cruising Bayshore, climbing a bridge, or riding into a headwind 🌴💨

Why Tampa riders love it 🌞

• Mid-drive performance, dialed in: 500W motor with 100Nm torque for strong, responsive assist ⚡️

• Big battery, big rides: 801.6Wh battery and up to 95 miles pedal assist range (claimed) 🔋

• Comfort for daily miles: Air suspension fork (80mm travel with lockout) plus a suspension seatpost for smoother streets and paths 🛣️

• Confident braking: Tektro hydraulic disc brakes with 180mm rotors front and rear 🛑

• Ready for errands: Full-coverage fenders and a rear rack that is MIK HD compatible 🧺

• Visible and connected: 3.5 inch full-color smart display with Bluetooth and NFC, plus USB-C phone charging 📱🔌

Speed and ride modes 🚦

Discover M can be set to Class 1, 2, or 3, with an adjustable top speed from 12 to 28 mph (default 20 mph). Throttle support is available. Always ride in the class and settings that match local regulations ✅

Built for real-world use 🔧

• High capacity: Up to 440 lb max bike load 💪

• Weather protection: IPX7 battery and IPX6 frame for strong wet-weather resistance ☔️

• Safety certifications: UL 2849 and UL 2271 listed on the specs page 🧾

• Stable, comfy tires: 27.5 x 2.4 puncture-resistant tires 🚴

Category	Spec
Bike Size	Regular, Large
Color	Platinum Silver, Olive Green
User Height Range	With suspension seatpost: R 5’2” to 5’11”, L 5’9” to 6’7”
User Height Range	Without suspension seatpost: R 4’11” to 5’9”, L 5’6” to 6’4”
Frame	Triple-butted aluminum alloy
Fork	Air suspension, 80mm travel, lockout, 34mm inner tube, rebound adjustable
Motor	48V, 500W, 960W peak, 100Nm
Battery	48V, 16.7Ah (801.6Wh), IPX7, UL 2271 certified
Battery Cells	Samsung or LG 21700, UL 2580 certified
Charger	48V, 3A fast charger
Sensor	Torque and cadence sensor
Display	3.5” full color, high brightness, Bluetooth, NFC, adjustable angle
USB Port	USB-C phone charge
Throttle	Trigger control, removable

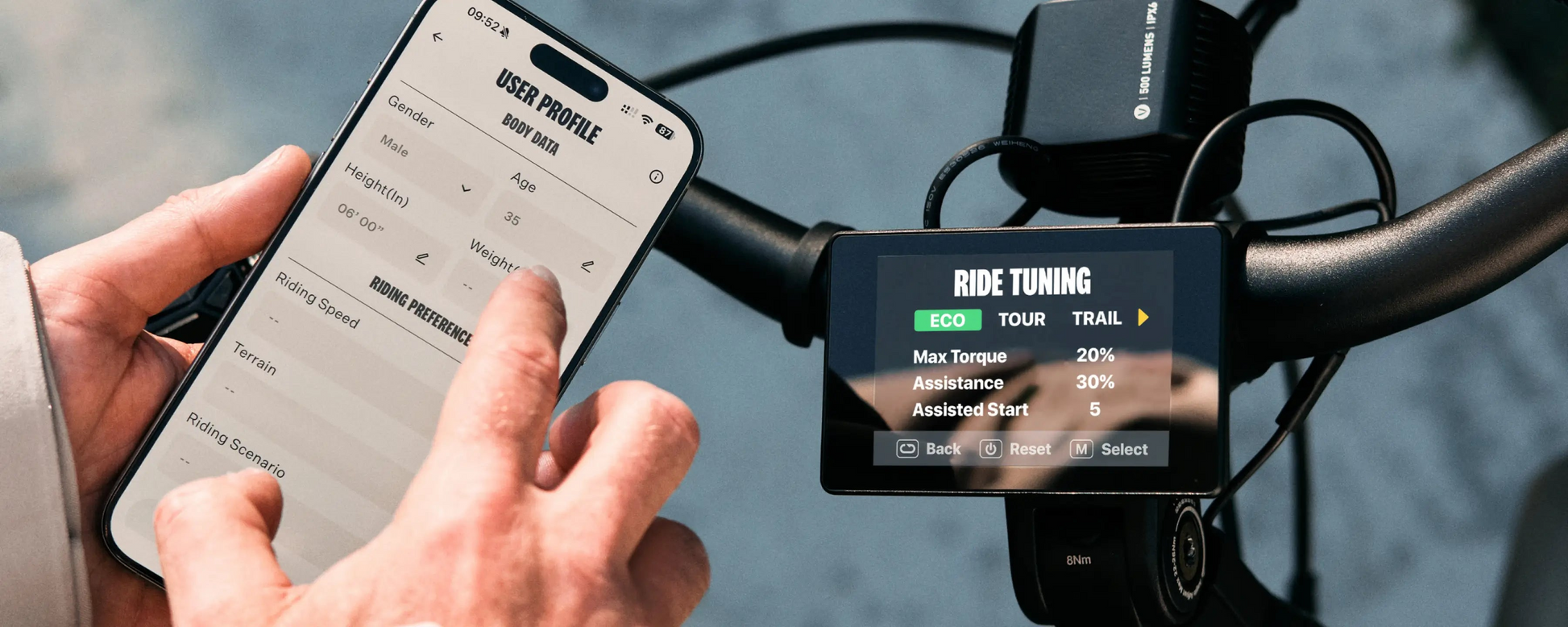

Pedal Assist	4 riding modes + auto mode, ride tuning
Walk Mode	2.9 mph, walk and hold

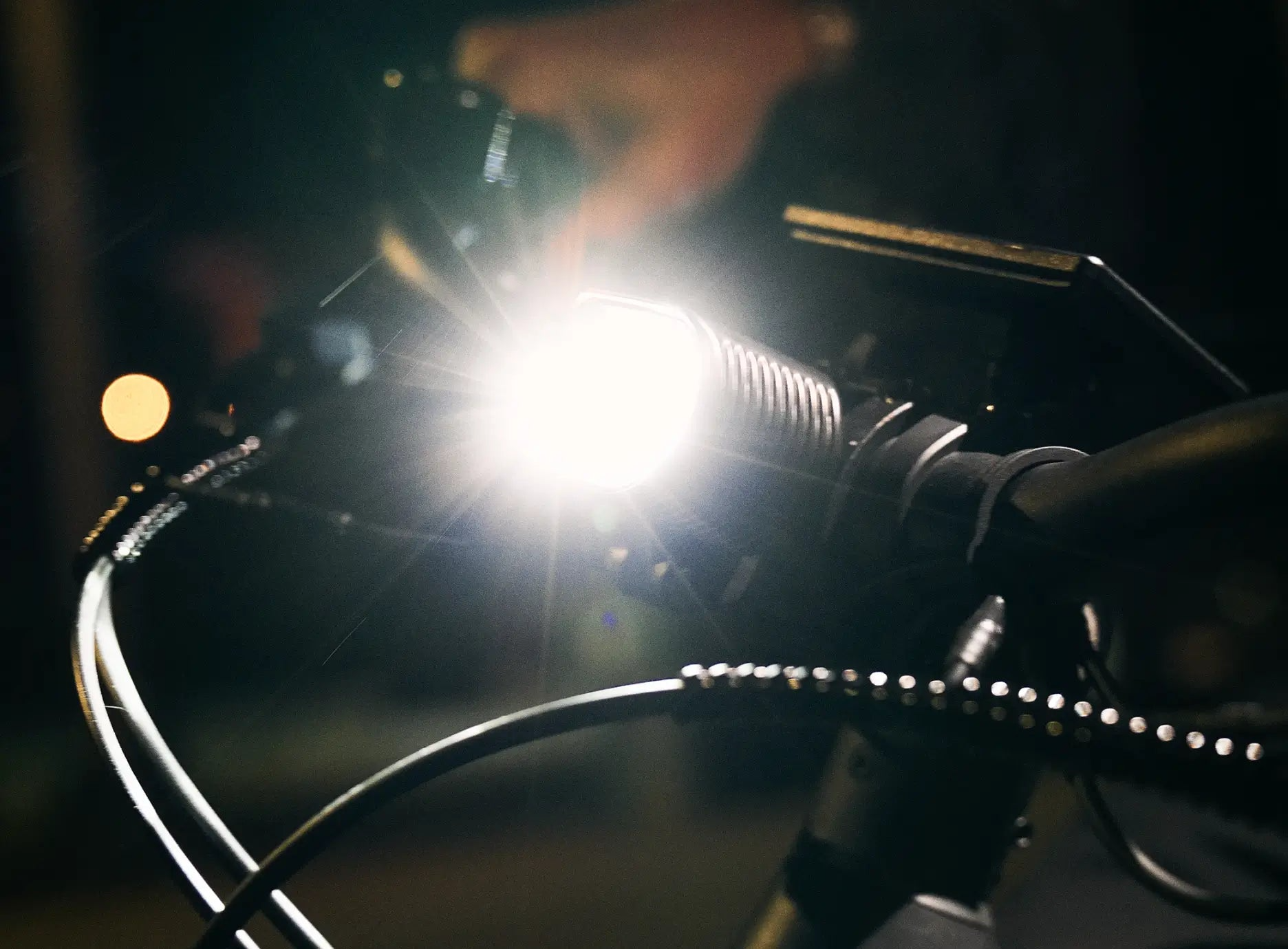

Front Light	500 lm integrated LED, adjustable angle
Rear Light	Braking indicator, turn signals, steady or flash, integrated with rear rack
Water Resistance	IPX6
App	App OTA support
Anti-Theft	Apple Find My + Android Find My Hub, NFC card unlock
Max Speed (Default)	20 mph
Max Speed (Adjustable)	12 to 28 mph
E-bike Class	1, 2, or 3
Pedal Assist Range	Up to 95 miles (claimed, based on Eco mode, flat roads, 187 lb rider)
Throttle Range	Up to 70 miles (claimed, based on Eco mode, flat roads, 187 lb rider)
Chainring	46T narrow-wide
Crankset	Aluminum alloy, 170mm
Freewheel	9-speed, 11 to 46T
Rear Derailleur	Shimano Cues, 9-speed
Shift Lever	Shimano Cues, 9-speed
Chain	KMC eGlide 9-speed
Brakes	Tektro hydraulic disc brakes
Rotors	180mm front, 180mm rear
Brake Levers	Aluminum alloy, with power cutoff
Rims	Aluminum alloy
Front Hub	Novatec aluminum alloy, 15x110mm thru-axle
Tires	Kenda 27.5 x 2.4 puncture resistant ebike tires

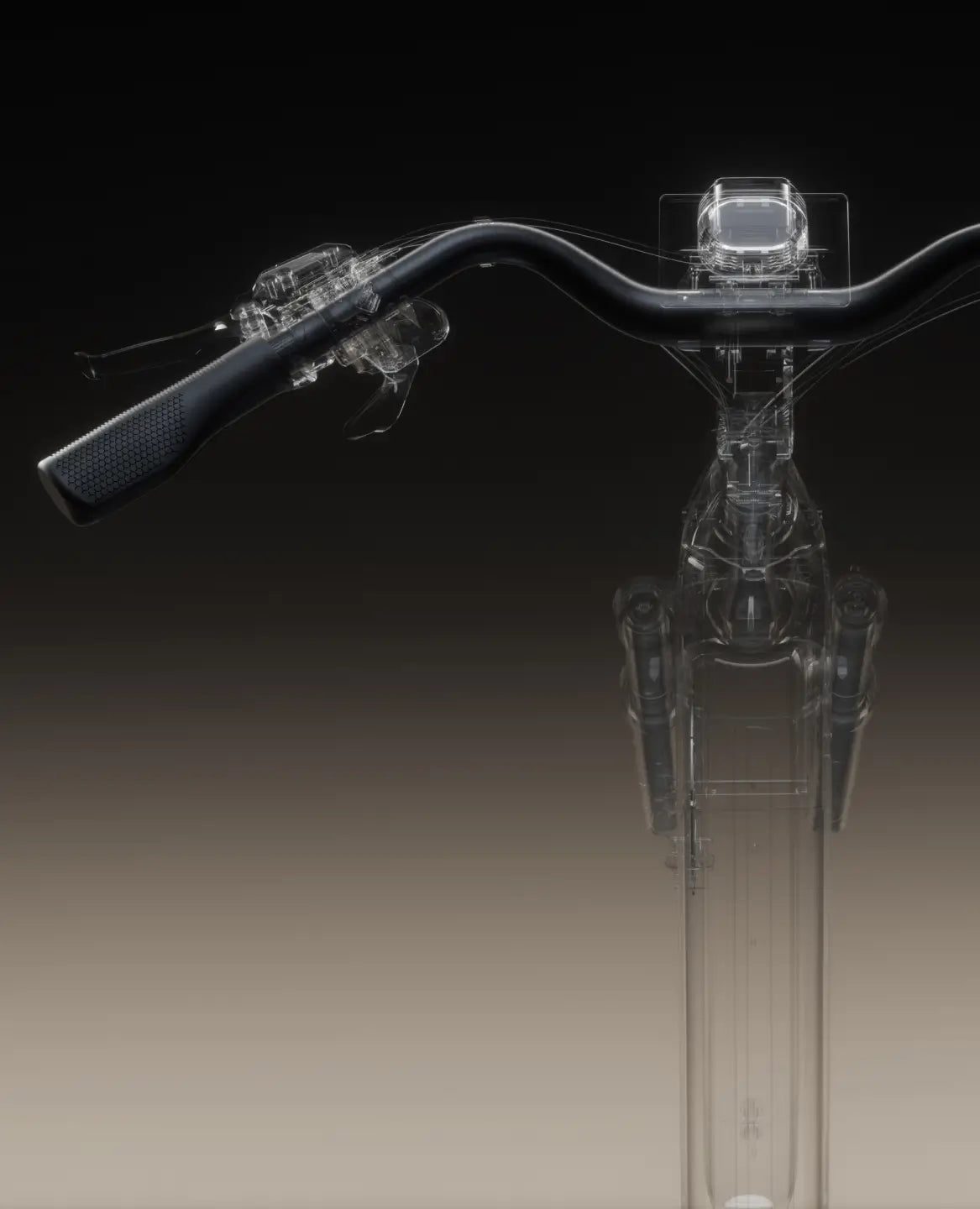

Handlebar	Aluminum alloy, 31.8mm, 680mm (R) or 700mm (L)

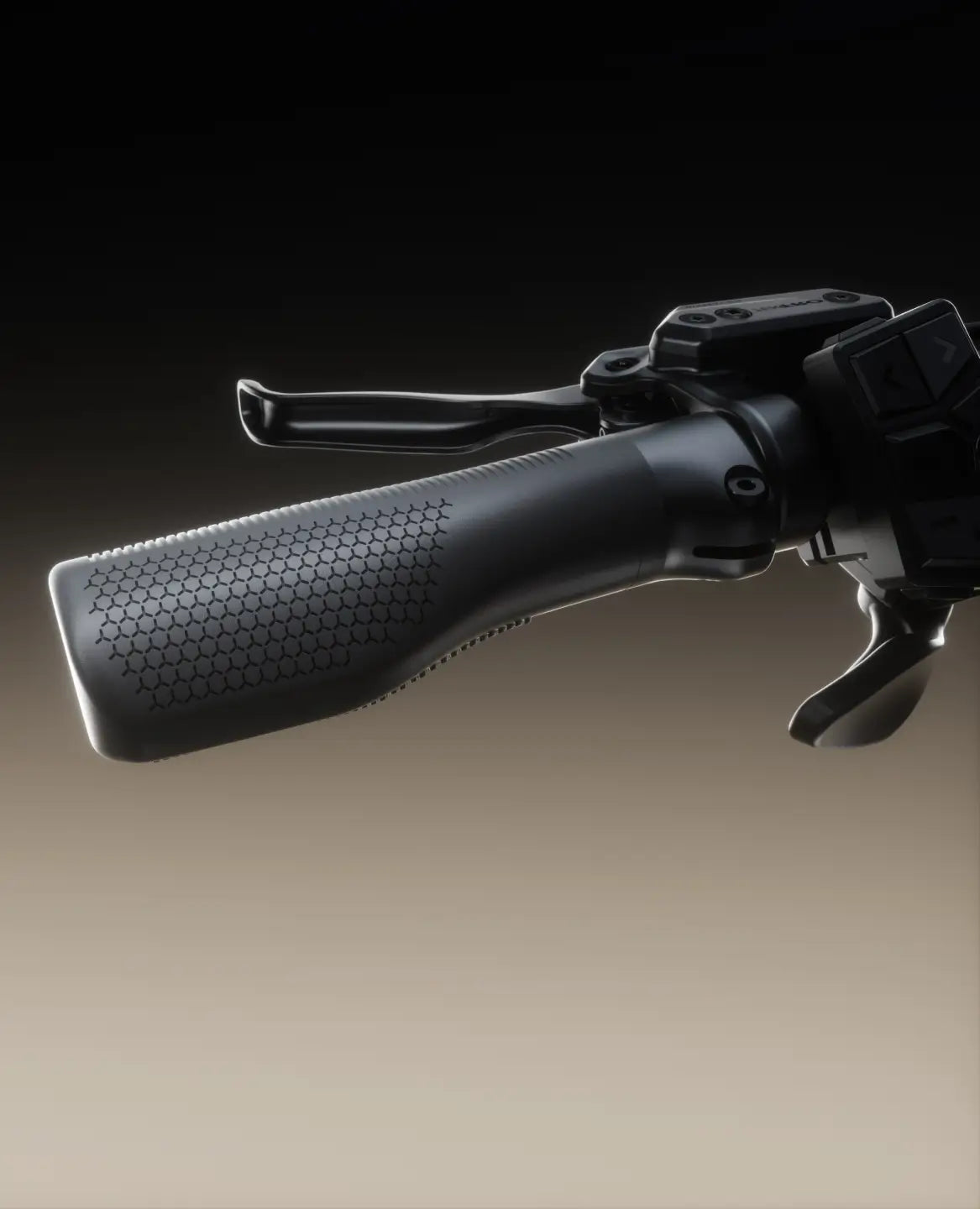

Grips	Ergonomic, lockable
Stem	Adjustable, aluminum alloy, 31.8mm, 60mm

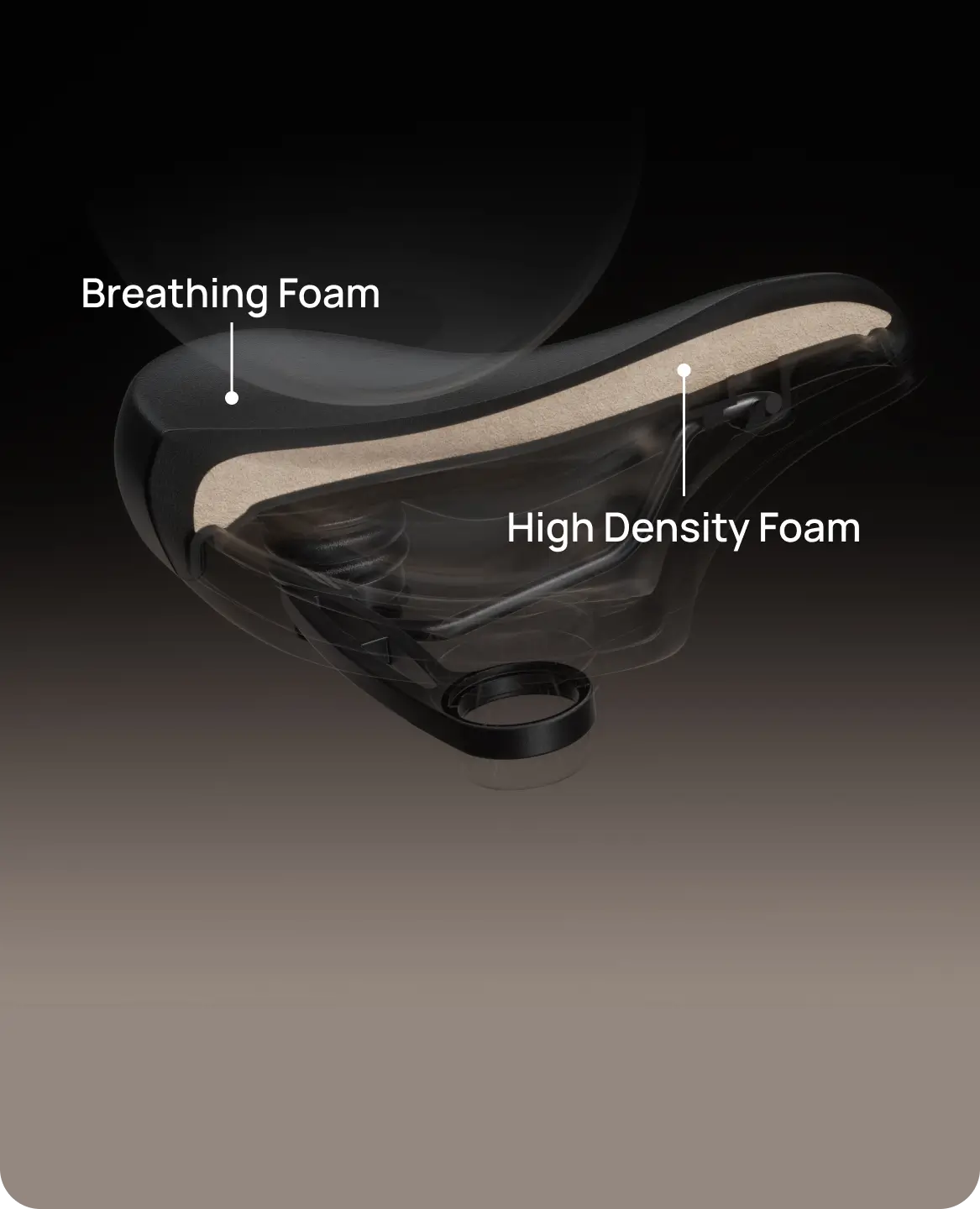

Saddle	Velotric comfort ergonomic seat
Seatpost	Aluminum alloy, 30.9mm, suspension
Clamp	Aluminum alloy, quick release
Fenders	Aluminum alloy, full coverage front and rear
Rear Rack	MIK HD compatible alloy
Pedals	Plastic
Kickstand	Aluminum alloy, included, rear mount
Bike Weight	60 lb (note: spec sheet states weight does not include fenders, kickstand, pedals)
Rear Rack Load Capacity	66 lb
Max Bike Load Capacity	440 lb
Certifications	UL 2849, ISO 4210

*Range, speed, and performance vary with rider weight, terrain, wind, tire pressure, temperature, and assist level.
